Ball Retainer ： Precision, Materials, and Future Trends

2025-09-01

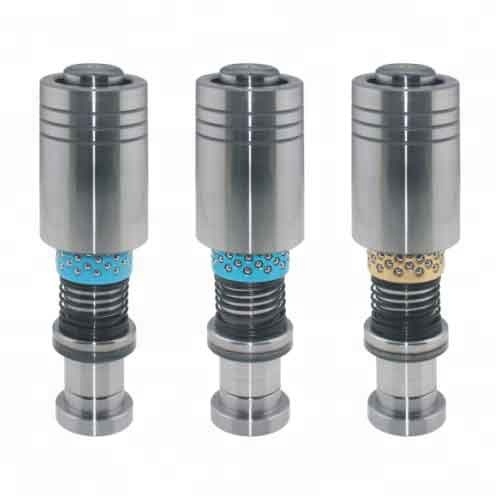

Ball Retainer

➤Introduction & Industry Background

Ball Retainers are one of the most critical guiding components in precision molds, ensuring smooth, accurate, and durable motion. By transforming sliding friction into rolling friction, they significantly reduce wear, improve dimensional stability, and extend tool life. With increasing demands in injection molding, die casting, stamping, and semiconductor industries, Ball Retainers have become indispensable for high-performance and cost-effective production.

➤Structure & Working Principle

Main Components: Guide pillars, guide bushes, retainer cages, precision balls, lubrication system, sealing devices.
Friction Conversion: Reduces coefficient of friction from 0.15–0.20 (sliding) to 0.001–0.005 (rolling).
Key Advantages:
★ Guiding accuracy < 0.01 mm
★ Smooth, stick-slip free motion
★ Extended service life by 3–5 times

➤Materials & Heat Treatment

Balls:
• SUJ2 / GCr15 → Standard, HRC 60–66
• 440C Stainless Steel → Corrosion resistance, cleanroom use
• Ceramic Si₃N₄ → Lightweight, high-temperature resistance
Retainer Cage:
• High-carbon steel → High load capacity
• Aluminum alloy → Superior heat dissipation
• POM/PEEK → Low noise, self-lubricating
Guide Pillar & Bush:
• Bearing steel → HRC 58–62
• Bronze → Suitable for dusty environments
• Coatings → DLC, TiN, TiCN for wear resistance

➤Surface Engineering & Coatings

DLC (Diamond-Like Carbon) → Excellent wear resistance, low friction
TiN (Titanium Nitride) → Hard, cost-effective, golden surface finish
TiCN (Titanium Carbonitride) → Higher hardness, improved adhesion, ideal for stamping molds

➤Tribology & Lifetime Calculation

Lubrication:
• Injection mold → Lithium grease (NLGI 1–2)
• Die casting mold → PFPE fluorinated grease (>250°C)
Lifetime Formula:

L_{10} = \left(\frac{C}{P \cdot K}\right)^3 \times 10^6

Where:

CCC = Dynamic load capacity
PPP = Equivalent load
KKK = Correction factors (impact, lubrication, contamination, temperature)
Design Rule: Working load ≤ 40% of static load → ≥ 5 million cycles

➤Failure Mechanisms & Countermeasures

Spalling → Improve lubrication
Indentation → Avoid hammer assembly
Cage cracking → Use aluminum or PEEK
Adhesive wear → Apply DLC coating
Thermal seizure → Increase clearance, enhance cooling

➤Application Cases

High-speed injection mold → SUJ2 balls + POM cage
Die casting mold → Aluminum cage + PFPE grease
Precision stamping mold → Steel cage + TiCN coated guide pillar
Cleanroom & corrosion-resistant mold → 440C / Ceramic balls + fluorinated grease

➤Future Development Trends

Smart monitoring with sensors for real-time wear detection
Maintenance-free or self-lubricating ball retainer systems
Environmentally friendly, green lubrication solutions
Integration with digital twin and Industry 4.0 manufacturing platforms

➤International Standards & Compatibility

Standards: DIN, JIS, ISO
Compatibility: DME, HASCO, MISUMI, Meusburger, Futaba
Key Considerations: Check diameter, length, lubrication groove position

➤Conclusion & Recommendations

Ball Retainers are the core of precision mold guiding systems, delivering high accuracy, long service life, and minimal maintenance requirements. Proper material selection, lubrication strategy, and precision control are essential to maximize performance. For modern manufacturing environments—whether in automotive, aerospace, electronics, or medical devices—Ball Retainers are indispensable components enabling high-quality, efficient, and sustainable production.
