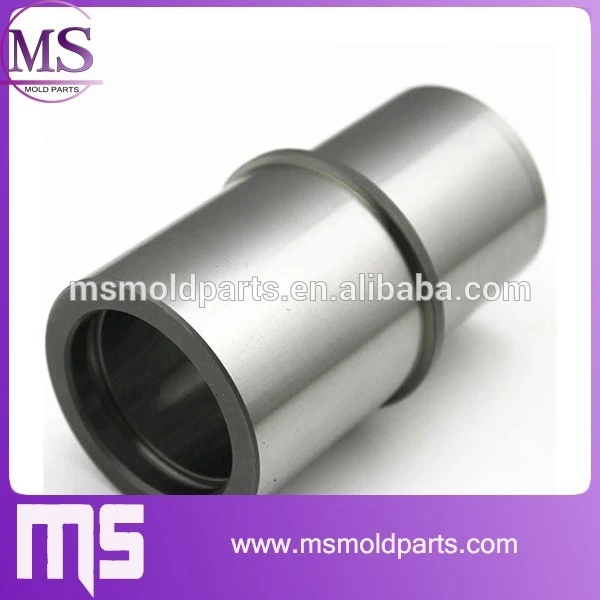

Hardened Shoulder Bushing Steel

2016 bush for stamping mold die shoulder bushing steel bushings

ms mold parts
A precision cylindrical component with an integrated shoulder (flange), typically made of hardened steel. Designed for molds and dies, it provides exact axial positioning, prevents sinking under pressure, and ensures stable alignment between mold plates in stamping or injection molding applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Mold Die Shoulder Bushing represents the ultimate in precision and durability for demanding die and mold applications. This comprehensive product line integrates three specialized technologies: precision bushes optimized for stamping molds, hardened shoulder bushing steel for maximum wear resistance, and advanced low-friction mold die shoulder bushings for smooth operation. Engineered to deliver exceptional performance in the most challenging industrial environments.

    Key Features

  • Ultra-Precision Manufacturing

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Diameter tolerance controlled within ±0.003mm

    • Perfect perpendicularity between shoulder and bore

  • Enhanced Material Technology

    • Premium SUJ2 bearing steel construction

    • Through-hardened to HRC 60-64 (hardened series)

    • Special PTFE coatings for low-friction variants (coefficient ≤0.06)

  • Optimized Shoulder Design

    • Integrated shoulder for precise axial positioning

    • Prevents component sinking under extreme pressures

    • Simplified installation and maintenance

  • Technical Specifications

  • Materials: SUJ2 Steel, Tool Steel Alloys

  • Hardness Options:
    ∙ Standard: HRC 58-62
    ∙ Hardened: HRC 60-64
    ∙ Low-Friction: HRC 58-60 + PTFE coating

  • Surface Finish: Ra 0.2μm maximum

  • Standard Sizes: 12-100mm inner diameter

  • Shoulder Configurations: Multiple standard and custom options

2016 bush for stamping mold die shoulder bushing steel bushings


Specifications available in:

ISO 8020, DIN 9861, DIN 9844, DIN 9810 ,customized

Specifications available in:

Material

Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect

Standard

Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect

Size

Depend on your drawings or products standard

Place of origin

Dongguan, Guangdong, China

Heat treatment

Available

Surface Work

TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available

Tolerance

+ - 0.002mm

Polishness

Close to Ra0.2

Hardness

Depends on material(HRC60~94)

Delivery time

3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.

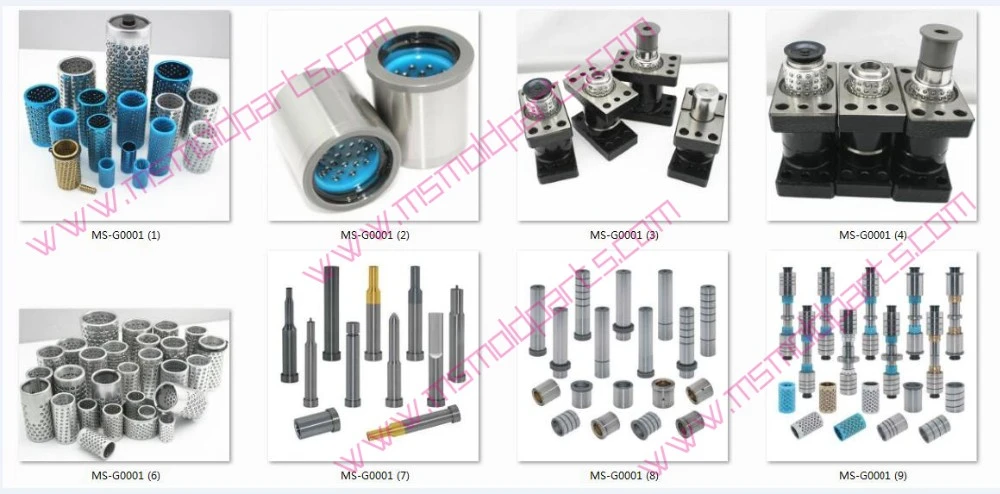

Main Products

Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Mold Parts PUNCH punzon Picture

Shipping &Payment

Payment:

1.T/T.Westen union.MoneyGram.Alibaba escrow are accepted.

2.30% deposit should be received before production, and balance to be paid before delivery or 100% Payment in advance.

paste-pic-dp_uuid_9j00c

Shipping:

1. Delivery depends on the quantity of order, normally, 10-25 days after receiving the deposit.

2. Delivery way: By Express, by air, by sea or other ways you want.

paste-pic-dp_uuid_8st2x

Company introduce

Donguan MS Mold Parts Co.,Ltd specialize in making all kinds of press die components, plastic mold parts and different machine parts according to the ISO, JIS, DIN AND AISI etc standards.

At the same time, we can make according to the standards of the following:
HASCO,STRACK,FIBRO,CUMSA,DAYTON,LANE,
DME,JECTO,MDL,MOELLER,RABOURDIN,MEUSBURGER,
PEDROTTI,MISUMI and SO ON.
specilized in producing Automotive Parts,Normalien, Punches,dies,Guide posts,Guide Bushes,Guide Pins,Ejector Pins and sleeves,Die Buttons,Bushes,Ejector Punches,guide bush, plugs, Drill Rods,Ball Cages,Springs,Blocksets

with different material,such as HSS,SKH51,SKD11, HSS, ASP23,SUJ2, D2,M2,Tungsten CARBIDE ETC

ALSO we have the ability to make a wide range of non-standard or customized mold parts and machine parts to meet the growing demands for various industries who are aiming to develop new molds for new products which requires made-to-order service all over the world. We are able to make parts exactly according to customers’ drawings or samples.

With the company policy: quality innovation, mutual benefit, reliability and integrity,have a good after-service, Our markets are in Germany, Italy, Spain, Portugal, Hungary, Poland, Brazil, Peru, Argentina, U.S.A, Mexico, Malaysia, Indonesia, Philippine, Thailand, Australia, Japan etc, we are always ready to offer our products,services and promote the innovation in all kinds of mold industries!


Our Slogan:Strive for Perfection And Win by Quality!!

If you have any problem, please feel free to contact us, we are glad to help.
