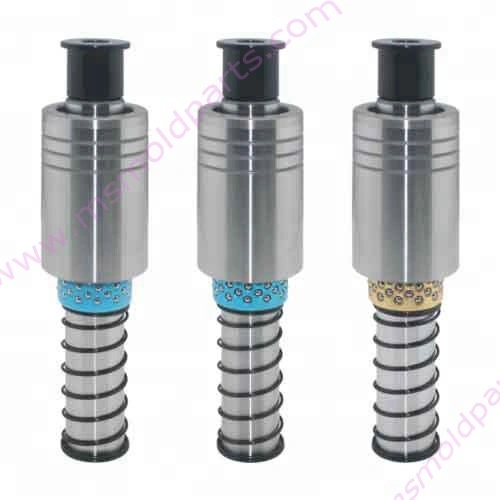

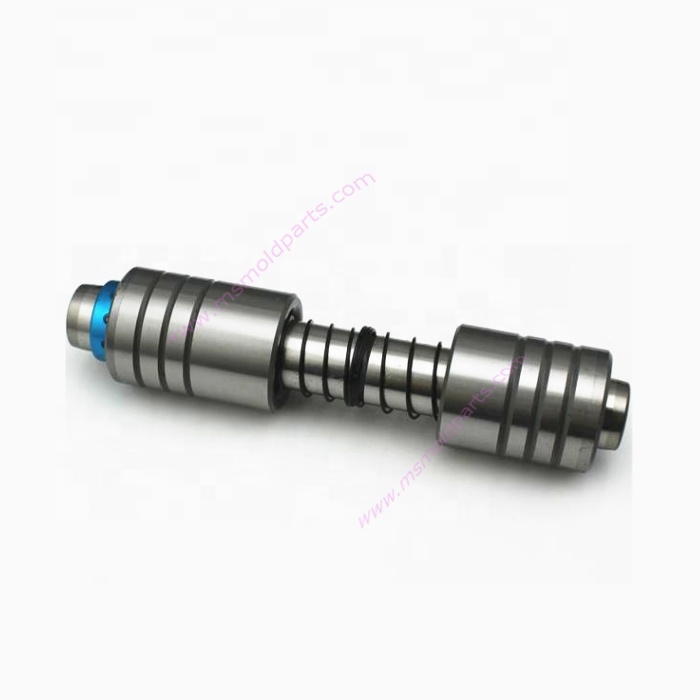

2016 Oil groove guide bush post set precision Die holder guide post

ms mold parts
The 2016 Oil Groove Guide Bush Post Set offers high precision alignment and smooth motion for die sets and injection molds. Designed with an oil groove structure, this precision die holder guide post ensures excellent lubrication, reduced wear, and long-lasting durability.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD15.00 / piece
Contact Now
add to cart
The2016 Oil Groove Guide Bush Post Set Precision Die Holder Guide Post is a high-quality mold component designed for precision alignment in stamping and injection molds. Engineered with durable materials, the guide post set incorporates a spiral oil groove design that ensures efficient lubrication, reduces friction, and extends service life. It is widely used in guide post dies to achieve stable positioning and high machining accuracy.

Key Features:

  • Spiral Oil Groove Design – Ensures smooth lubrication and reduces wear.
  • High Precision Alignment – Provides stable guidance in mold and die applications.
  • Durable Construction – Made from high-strength materials for extended lifespan.
  • Versatile Applications – Suitable for various guide post dies and tooling systems.

Applications:

  • Used in stamping dies to maintain accurate positioning and reduce friction during operations.
  • Applied in plastic injection molds for smooth guidance and precise mold alignment.
  • Essential in metal forming and press die sets where stability and wear resistance are critical.
  • Ideal for precision tooling systems that require long service life and consistent performance.
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
