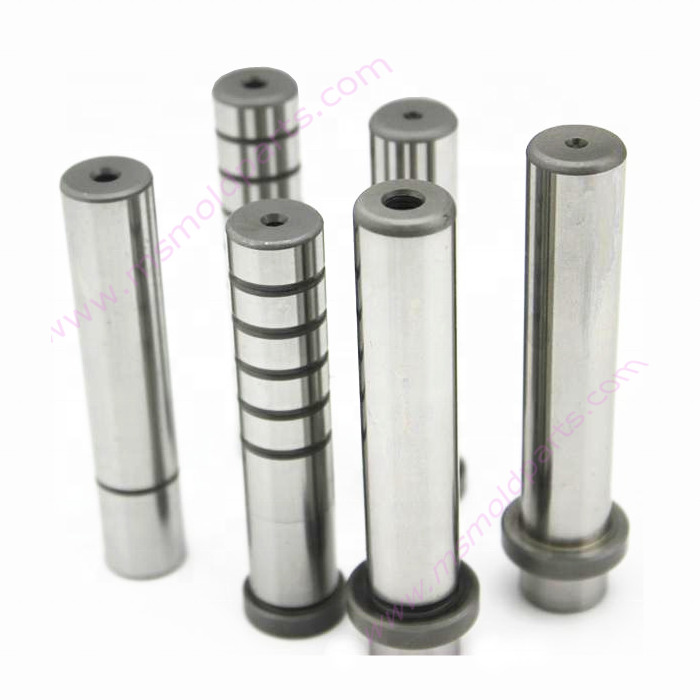

Hardened Press Mold Guide Pillar

2016 standard mold guide pillar, mold guide pillar for press mold

ms mold parts
A cylindrical steel component (typically SUJ2 material) with standardized dimensions, used in molds and machinery to ensure precise alignment between moving plates. Features hardened surfaces (HRC 58-62) for wear resistance, ground finish for smooth operation, and compatibility with guide bushings. Essential for maintaining accuracy in injection molding or stamping processes.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Standard Mold Guide Pillar represents the foundation of reliable mold alignment systems. Combining precision engineering with specialized variants including hardened press mold guide pillars and low-friction standard guide pillars, these components deliver exceptional performance across all types of industrial molding applications while maintaining perfect interchangeability and consistent quality.

    Key Features

  • Precision Manufacturing Standards

    • Ground to exacting tolerances within ±0.005mm

    • Superior straightness maintained at 0.01mm/100mm maximum

    • Consistent dimensional accuracy across all production batches

  • Enhanced Material Performance

    • High-carbon chromium bearing steel (SUJ2 equivalent) construction

    • Multiple hardness options: HRC 58-62 (standard)

    • Optional surface treatments for specific applications

  • Optimized Design Versatility

    • Available in precision, hardened, and low-friction configurations

    • Perfect compatibility with standard guide bushings

    • Custom lengths and diameters upon request

  • Technical Specifications

  • Material: SUJ2 Bearing Steel (AISI 52100 equivalent)

  • Standard Hardness: HRC 58-62

  • Surface Finish: Ra 0.4μm maximum

  • Diameter Range: 10-80mm

  • Length Options: 100-500mm

  • Straightness: 0.01mm/100mm maximum

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
