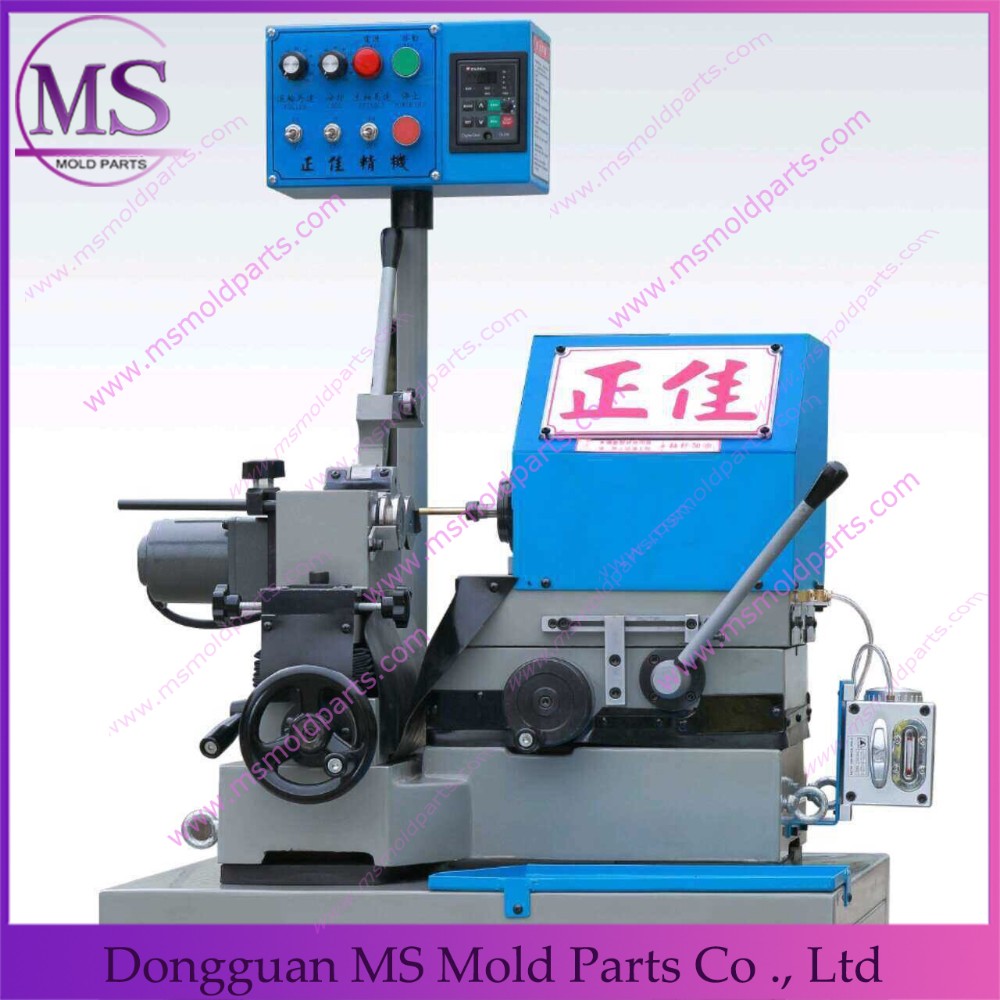

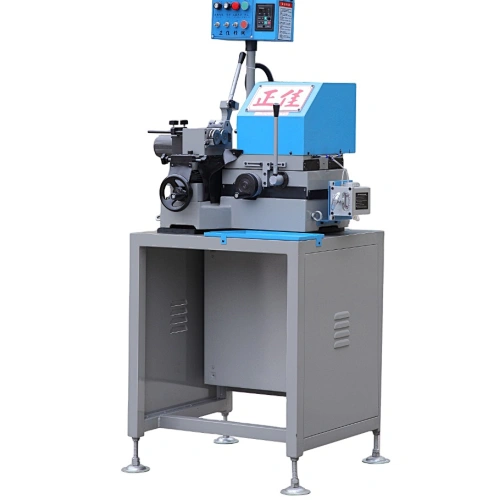

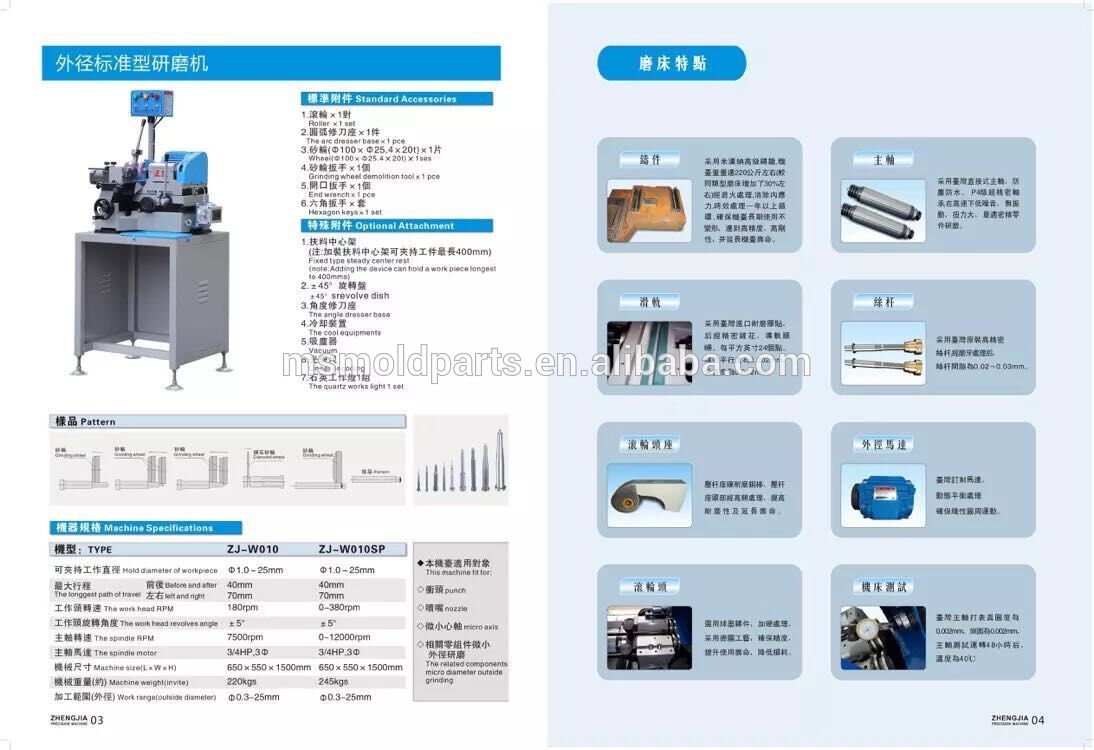

accurate external diameter grinding machine (standard type)
Model
ZJ-W010
Project
Specification
Project
Specification
Can grasp the working diameter
φ 0.5- φ 25mm
main shaft speed
0-12000rpm
Give into the way
Before and after
40mm
Main shaft motor
3/4HP,3φ
Left right
70mm
Mechanical size
Mainframe , minicomputer
Rotational speed of beginning work
180rpm
Mechanical weight (invite)
180kgs
job head rotates angle
± is 5 degrees
Processing range (external diameter )
φ0.5-φ25mm
Suitable target of machinery
Drift , thimble
Spray nozzle,carburetor
Careful of the axle,valve a little
Hollow , rivet drift
Pen mould,screw mould,knitting machine components
The small external diameter of relevant spare parts is ground
Standard enclosure: Emery wheel spanner (one) Spanner 10-12 (one) Emery wheel (one) Repair one one hundred sheets of seats (one) Manual (one) free The gyro wheel (1 set) Six mao spanner inside (1 set)
pecial enclosure: Optics chi Wash by water to fit
Seriously promise: The platform of our company machine guarantees to exchange if returned as unsuitable in three months like being defective in quality.
