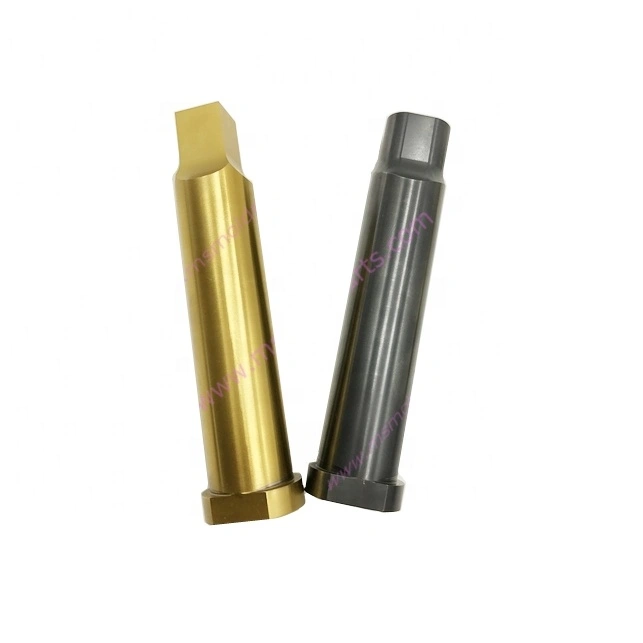

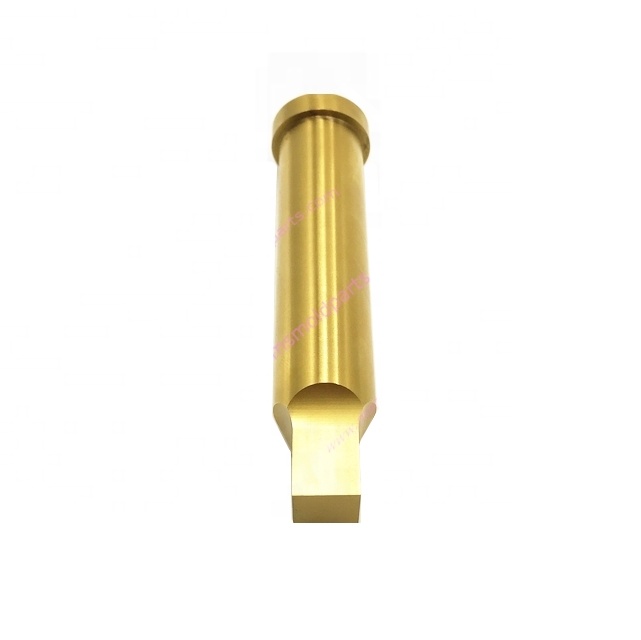

Alcrona coating punsch square and ellipse punch Tin Coating

1. Core Alcrona Coating Performance: Redefining Tool Durability

• Ultra-High Hardness & Wear Resistance: The coating achieves a Vickers hardness (HV) of over 3000, forming a dense, scratch-resistant barrier on the punch surface. This reduces abrasive wear caused by repeated contact with workpieces (including Tin Coating materials) by 60% compared to uncoated or conventional PVD-coated punches, prolonging service life by 2–3 times in high-frequency stamping scenarios.
• Enhanced Toughness & Impact Resistance: Unlike brittle high-hardness coatings, the Alcrona coating incorporates a gradient layer design that improves toughness. It absorbs and dissipates up to 40% of the impact energy generated during stamping, preventing crack initiation or chipping on the punch edge—critical for maintaining precision when processing rigid or thin Tin Coating workpieces.
• High-Temperature Stability & Anti-Adhesion: The coating retains stable performance at temperatures up to 600°C, avoiding softening or peeling caused by frictional heat during continuous stamping. Its low surface energy (≤20 mN/m) also prevents material adhesion, especially for Tin Coating materials that are prone to sticking, ensuring clean, burr-free stamping edges.

2. Precision Multi-Shape Stamping Capability: Tailored for Square & Ellipse Tasks

• Square Stamping Optimization: The punch head undergoes ultra-precision grinding (with a surface roughness Ra ≤ 0.02 μm) to ensure 90° right-angle accuracy (deviation ≤ 0.005°) at the edges. This eliminates burrs or edge rounding on square workpieces (e.g., Tin Coating gaskets or terminal blocks) and maintains a dimensional tolerance of ±0.008 mm, meeting the strict standards of electronic component manufacturing.
• Ellipse Stamping Precision: The punch’s elliptical head features a computer-numerical-control (CNC) machined arc with a tolerance of ≤0.005 mm for the major and minor axes. This ensures uniform force distribution during stamping, preventing material deformation (a common issue with Tin Coating materials) and guaranteeing consistent curvature across batches—critical for parts like elliptical sensor housings or hardware brackets.
• Custom Shape Flexibility: Beyond standard square and ellipse designs, the punch can be customized with tailored head geometries (e.g., rounded squares, oblong ellipses) and Alcrona coating thicknesses (5–15 μm) based on specific workpiece requirements. This adaptability supports diverse precision stamping needs, from small electronic components to automotive precision parts.

3. Specialized Optimization for Tin Coating Materials: Ensuring Surface & Structural Integrity

• Scratch-Resistant Processing: The smooth Alcrona coating surface (Ra ≤ 0.02 μm) minimizes friction between the punch and Tin Coating layer, reducing scratch rates by over 90% compared to conventional punches. This preserves the tin coating’s corrosion resistance and aesthetic appearance—essential for parts like Tin Coating connectors or exposed hardware.
• Controlled Stamping Force: The punch’s core is made of high-strength alloy steel (e.g., SKH-51) with a precisely calibrated hardness (HRC 60–62), matched to the tensile strength of Tin Coating materials (typically 150–300 MPa). This ensures moderate stamping force—avoiding both under-stamping (incomplete part formation) and over-stamping (material deformation or coating peeling).
• Wide Material Thickness Compatibility: The punch is optimized to process Tin Coating materials with thicknesses ranging from 0.05 mm (thin electronic foils) to 2.5 mm (thicker hardware parts). For ultra-thin Tin Coating materials (≤0.1 mm), an optional micro-lubrication-compatible Alcrona coating variant further reduces friction, preventing material tearing during stamping.
