Key Features

• High-Quality Material: Made of premium aluminum, offering lightweight structure, excellent strength, and corrosion resistance.

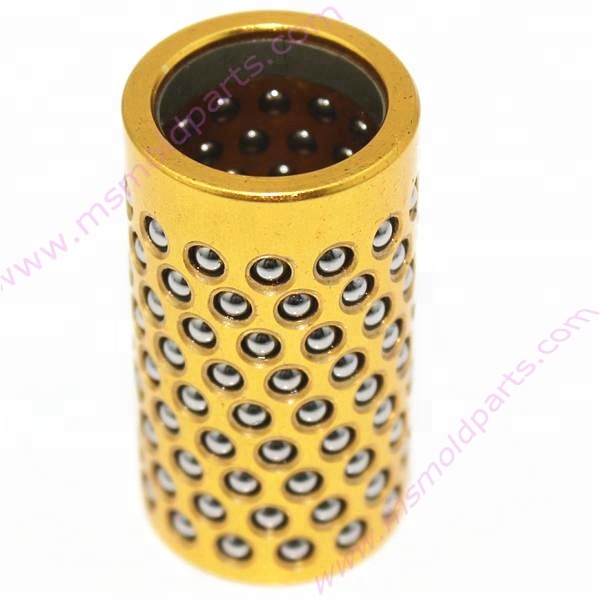

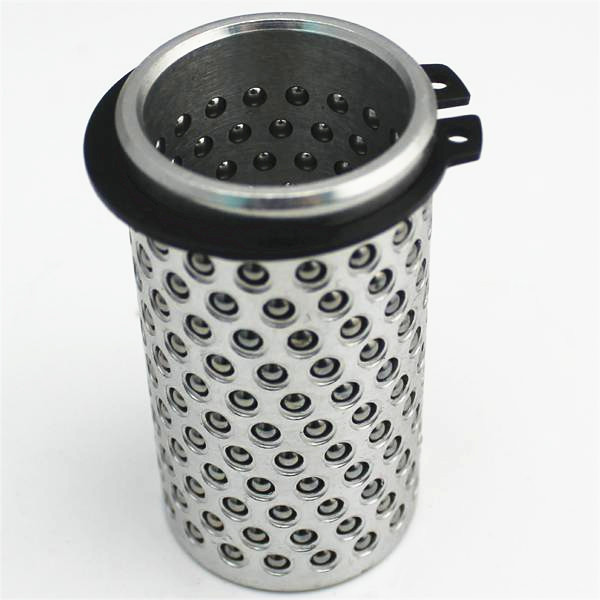

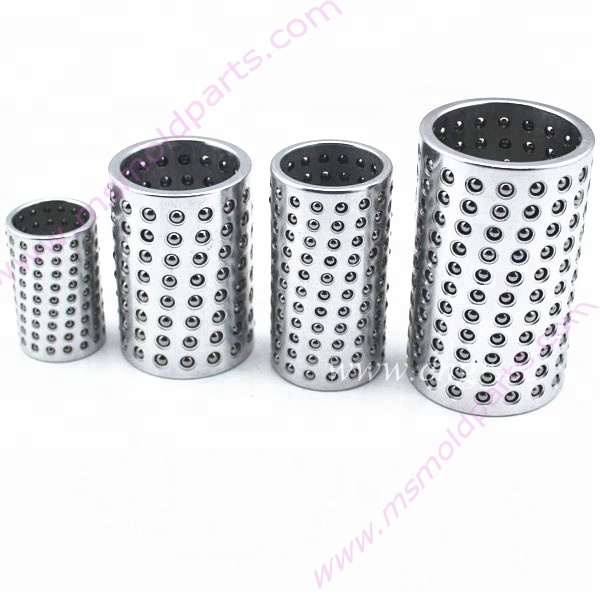

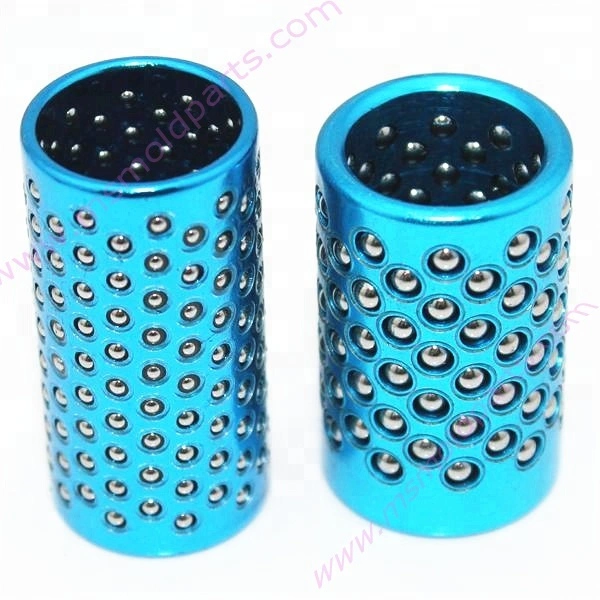

• Smooth Guidance: Functions as a ball bearing retainer cage, reducing friction and ensuring smooth ball movement for enhanced tool life.
• Durable & Precise: Provides accurate alignment and stability in mold and die applications, maintaining high precision during production.
• Versatile Application: Suitable for injection molds, stamping dies, press tools, and other mold components.
• Custom ODM Services: Tailored solutions available, including different sizes, coatings, and designs to meet customer-specific needs.

Applications

• Injection molding tools for plastics and metals.
• Stamping dies requiring smooth ball motion and guidance.
• Precision press parts where alignment and durability are critical.
• Customized mold and die solutions with OEM/ODM services.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
