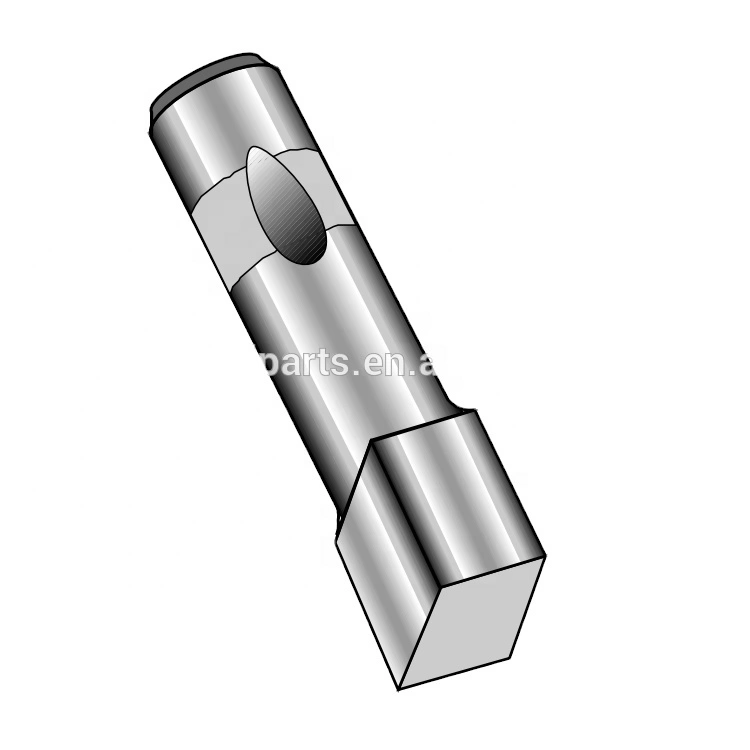

Square Punch Die

Ball Lock Inverted Light Duty Punch Rectangular Punch Square Punch Die

ms mold parts
A Square Punch Die is a precision tooling component designed for creating clean, accurate square holes in metal stamping and punching operations. It ensures sharp corners and consistent dimensions in high-volume production environments.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Product Overview
    The Square Punch Die is a high-precision tooling component engineered for creating clean, burr-free square holes in metal stamping applications. Designed to complement systems using Ball Lock Inverted Light Duty Punch and Rectangular Punch tools, this die delivers exceptional dimensional accuracy and durability in progressive dies and single-station presses.

    Key Features & Benefits

  • Precision Square Geometry
    Manufactured with exact 90° corners and consistent dimensions to ensure sharp, accurate square holes in various materials.

  • Enhanced Durability
    Crafted from high-grade tool steel (D2/SKD11 equivalent) and heat-treated to 58-60 HRC for superior wear resistance in high-volume production.

  • Optimized Material Flow
    Specialized clearance angles minimize punching force while preventing material galling and extending tool life.

  • Universal Compatibility
    Designed to work seamlessly with Ball Lock Inverted Light Duty Punch systems and Rectangular Punch setups for flexible tooling configurations.

  • Technical Specifications

  • Material: Premium Tool Steel (D2/SKD11 equivalent)

  • Hardness: 58-62 HRC

  • Surface Finish: Precision ground, Ra ≤ 0.4 μm

  • Tolerance: ±0.01mm on critical dimensions

  • Clearance: Standard 5-10% per side (custom options available)

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
