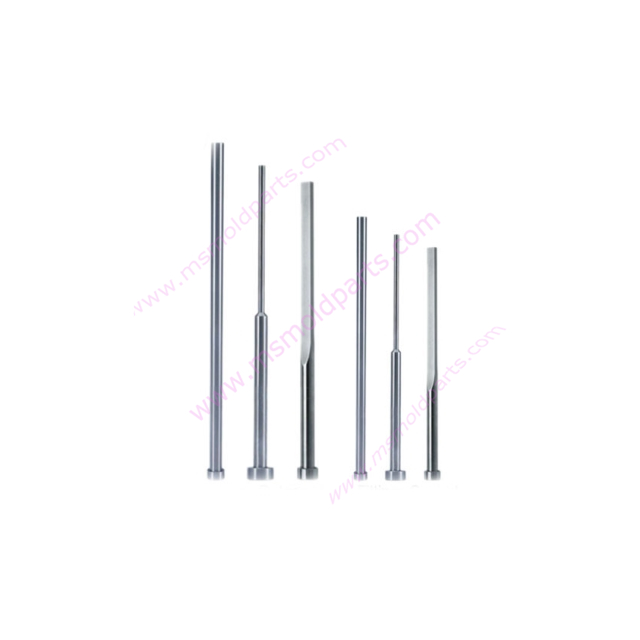

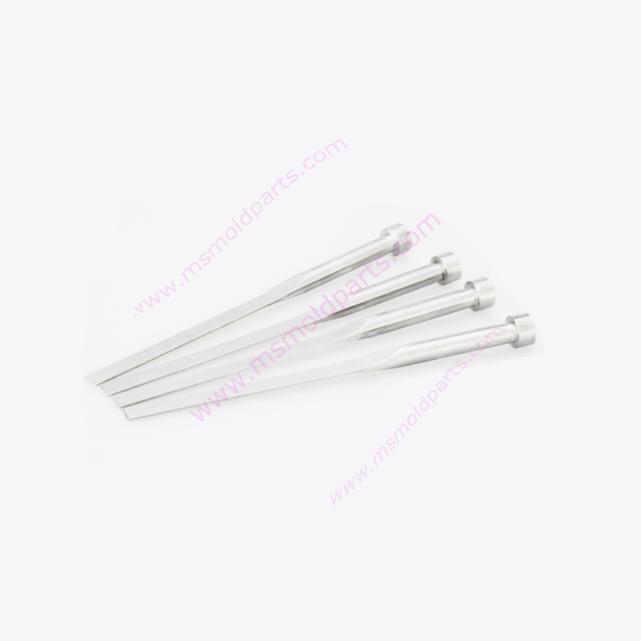

Blade ejector pin with extra long blade 2 angle radii oblate ejector pin

ms mold parts
Specialized blade ejector pin with extra long blade design, featuring 2 angle radii and oblate ejector pin shape for unique molding applications. Ideal for ejecting thin-walled or complex parts where standard ejectors are ineffective.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD20.00 / piece
Contact Now
add to cart
Our blade ejector pin with extra long blade and 2 angle radii design offers a specialized solution for challenging ejection scenarios in injection molding. Featuring an oblate ejector pin shape, this custom tool is engineered to handle thin-walled parts, complex geometries, and materials prone to sticking. Despite its advanced design, we provide custom pins cheap without compromising on quality, making it accessible for diverse industrial applications.

Key Features:

  • Extra Long Blade Design: The blade ejector pin features an extended blade length for deep-reach ejection in complex molds.
  • 2 Angle Radii: Precision-machined with 2 angle radii to reduce stress concentration and prevent damage to molded parts.
  • Oblate Shape: The oblate ejector pin design minimizes surface contact, reducing marks on finished products.
  • Cost-Effective Customization: Custom pins cheap options allow tailored dimensions (blade length, angles, radii) to meet specific needs.
  • Durable Materials: Made from hardened tool steel (e.g., H13/1.2344) with optional coatings (e.g., nitriding) for wear resistance.

Applications:

  • Ejection of thin-walled plastic parts (e.g., containers, panels)
  • Complex geometries with undercuts or delicate features
  • Automotive interior components and electronic housings
  • Medical device molds requiring minimal ejection marks
  • High-volume production with strict cosmetic requirements
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
