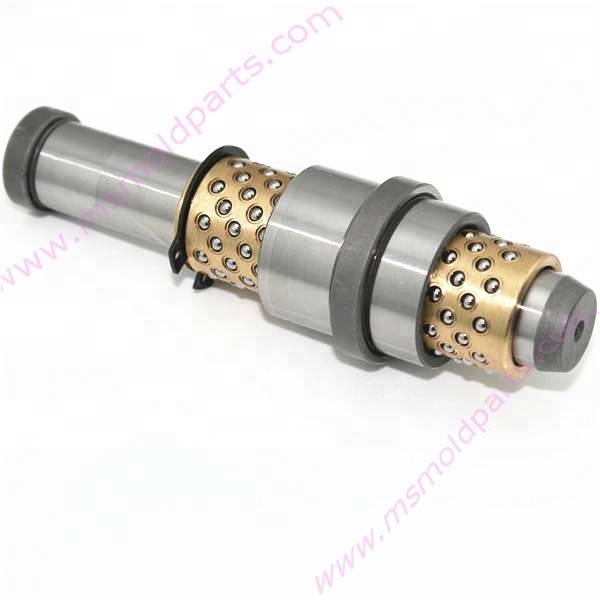

brass ball bearing bushing and guide pillar set for die mold

Product Overview
The Pillar Guide is a core component responsible for ensuring precise mold clamping and smooth mold opening. Our pillar guides are specifically designed for demanding mold applications. When paired with a brass ball bearing-type guide bushing, they form a complete and high-performance guide pillar set for die mold, providing unparalleled accuracy, durability, and stability for your production.

Core Features & Advantages

1. Precision Guidance & Ultra-Low Friction

   • Specially designed to work with brass ball bearing bushings, this combination transforms sliding friction into rolling friction. This significantly reduces operational resistance, minimizes wear, and ensures exceptionally smooth mold movement over the long term.

2. High Rigidity & Impact Resistance

   • Manufactured from high-quality alloy steel and through-hardened, our pillar guides possess high strength and toughness. They effectively withstand the substantial lateral forces and impacts during mold clamping, preventing bending or deformation and ensuring consistent alignment accuracy.

3. Excellent Wear Resistance & Long Service Life

   • The guide pillar surface is precision ground and super-finished, achieving an extremely high hardness and a mirror-like finish. This greatly enhances wear resistance and corrosion resistance, significantly extending the service life of the entire guide pillar set.

4. Complete Set, Perfect Compatibility

   • We provide a perfectly matched guide pillar set for die mold, which includes the pillar guide and a compatible guide bushing (such as the brass ball bearing type). This guarantees optimal clearance fit and performance right out of the box, simplifying your design and procurement process.
