High-precision mold guide pins and Misumi guide pillars for reliable mold tool and die solutions. Ensure accurate alignment, reduce wear, and extend tool life with durable, precision-engineered components.

Hot Sale Injection Mold Die Guide Pillar, Guide Pillar and Bushings, Standard Mold Guide Pins

MS-022
High-precision mold guide pins and Misumi guide pillars for reliable mold tool and die solutions. Ensure accurate alignment, reduce wear, and extend tool life with durable, precision-engineered components.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD3.00 / piece
Contact Now
add to cart

⭐Product Introduction

Our precision-engineered mold guide pinsandMisumi guide pillars are key components in mold tool and die systems, designed to ensure accuracy, durability, and efficiency in mold alignment and operation.

🔹 Key Features

✔High Precision Alignment
  • Guide pins ensure accurate positioning between mold plates
  • Reduce mold misalignment and improve overall tool stability
✔Durable Construction
  • Manufactured from high-grade alloy steel with heat treatment
  • Excellent wear resistance for long service life
✔Misumi Standard Compatibility
  • Designed to meet Misumi standards for global interchangeability
  • Perfect replacement or upgrade for existing mold systems
✔Reduced Maintenance
  • Minimized friction and wear extend tool and die lifespan
  • Decrease downtime and improve production efficiency
✔Customizable Options
  • Available in a wide range of standard sizes
  • Custom dimensions and specifications available on request

🔹Benefits

  • Improve mold precision and product quality
  • Enhance tool durability in high-volume production
  • Support injection molds, stamping dies, and custom tooling
  • Provide cost-effective and reliable mold guiding solutions
✨ With advanced mold guide pinsandMisumi guide pillars, our mold tool and die solutions deliver unmatched precision, stability, and durability for industrial manufacturing.
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products

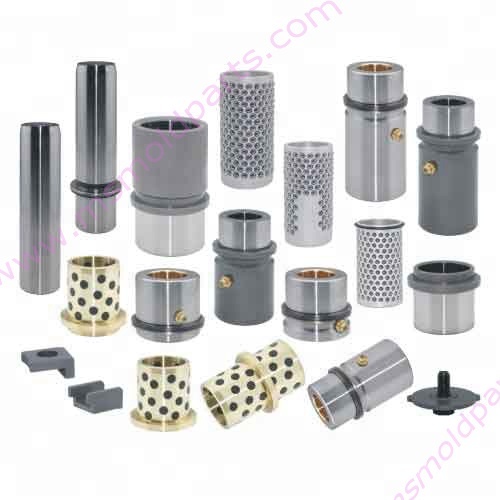

Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Our Mainly Parts

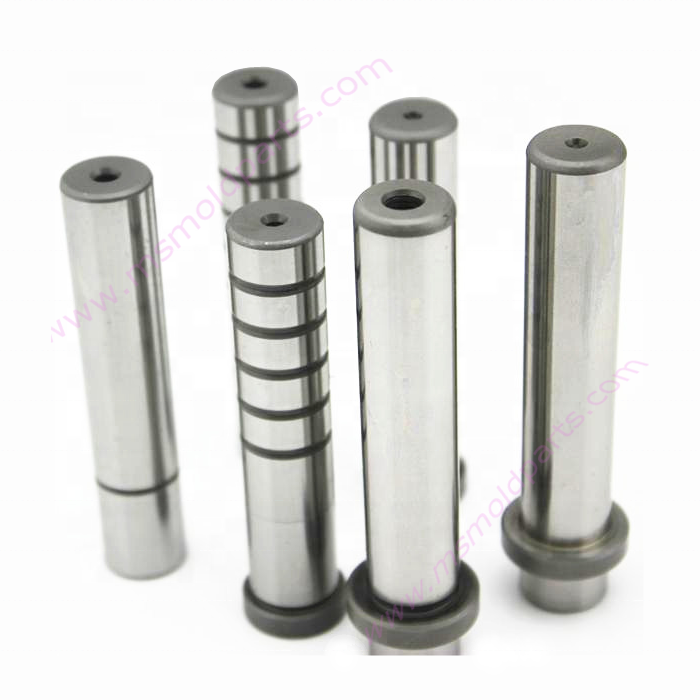

Standard Mold Guide Pins
Exhibition
Factory Equipment

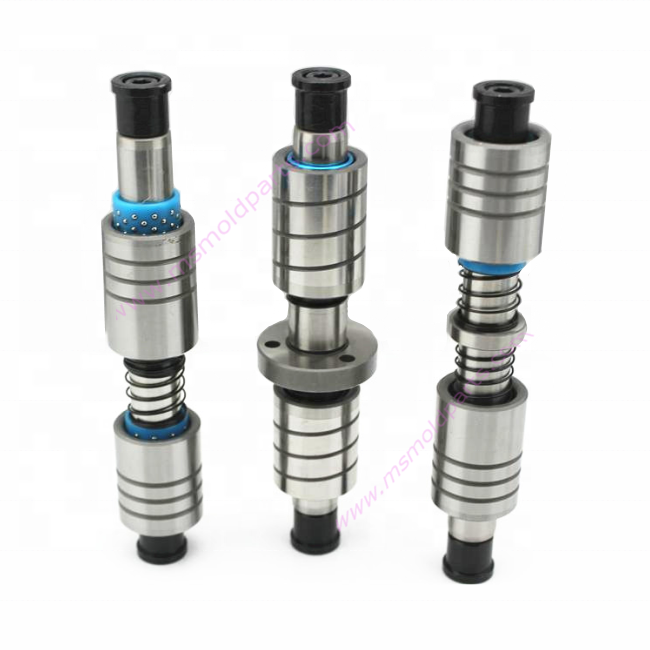

OUR More Parts
Packing & Delivery
Certifications
