heading die

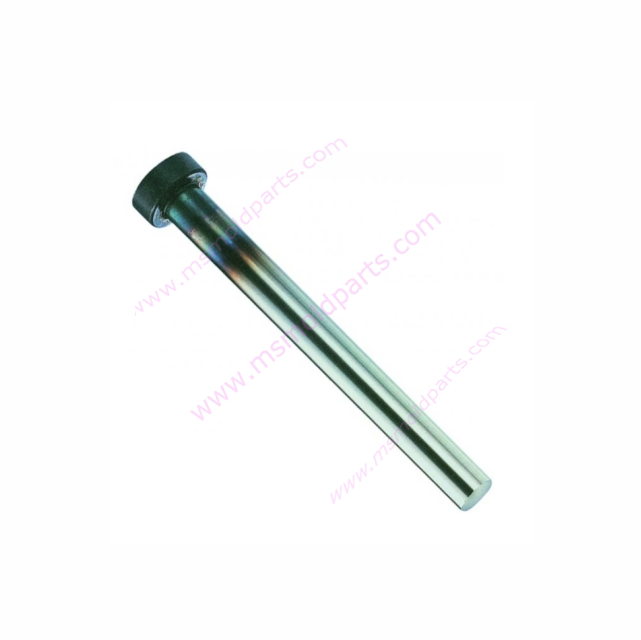

China supplier straight DIN 1530 Ejector pins for Heading die

ms mold parts
A precision tool used in cold heading machines to form metal wires or blanks into specific shapes (e.g., bolts, screws) through high-pressure deformation. Made from hardened tool steel or carbide, it features high wear resistance (HRC 58-62) and often integrates ejector mechanisms (e.g., DIN 1530 standards) for automated part removal.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Heading Die represents the pinnacle of precision and durability in cold heading and metal forming applications. Engineered to work seamlessly with DIN 1530 ejector systems and specialized die ejector mechanisms, these components deliver exceptional performance in high-volume production environments. Designed to withstand extreme pressures and repetitive impacts, our heading dies ensure reliable operation and extended service life in the most demanding metal forming operations.

    Key Features

  • Ultra-Durable Construction

    • Premium tool steel construction with superior impact toughness

    • Advanced heat treatment achieving HRC 58-62 hardness

    • Precision grinding for perfect dimensional accuracy

  • Optimized Ejection System

    • Perfect compatibility with DIN 1530 ejector pin standards

    • Smooth ejection mechanism preventing part sticking

    • Reduced downtime through reliable ejection performance

  • Precision Engineering

    • Micro-finished surfaces for minimal material adhesion

    • Tight tolerance control within ±0.005mm

    • Custom configurations for specific application requirements

  • Technical Specifications

  • Materials: Tungsten Carbide, Premium Tool Steel

  • Hardness: HRC 58-62 (steel), HRA 88-92 (carbide)

  • Surface Finish: Ra 0.2μm maximum

  • Standard Sizes: 3-50mm diameters

  • Temperature Resistance: Up to 400°C

  • Compliance: DIN 1530 and international standards

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
