cnc turning precision guide bush

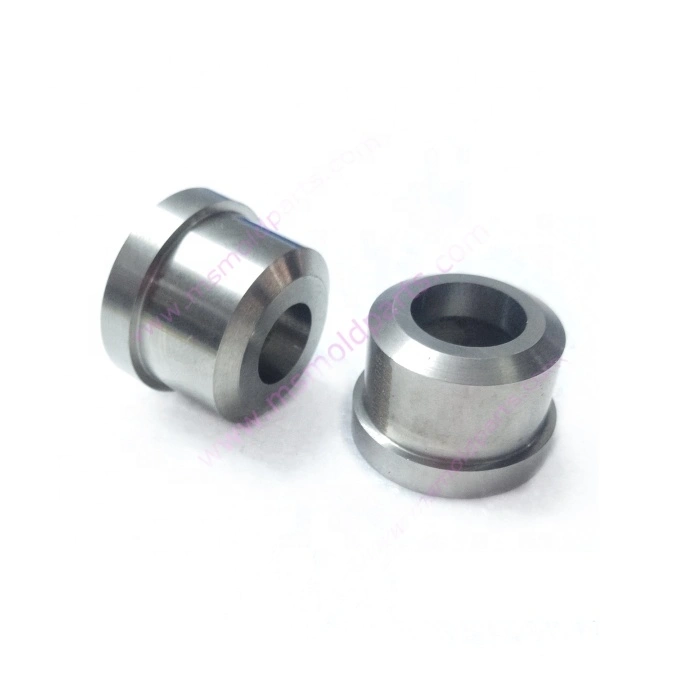

CNC Machining Turning Precision Guide Bush HSS round die buttons

ms mold parts
A high-accuracy cylindrical component manufactured via CNC turning, typically made of hardened steel (e.g., SUJ2, HRC 58-62). Designed for exact alignment in molds or machinery, it ensures smooth motion, minimal friction, and long-term durability in demanding industrial applications. Compatible with standard guide posts and HSS die buttons.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our CNC Turning Precision Guide Bush represents the highest standard of accuracy and reliability in industrial guidance systems. Manufactured using advanced CNC turning technology and designed to work seamlessly with HSS die buttons, these guide bushes deliver exceptional performance in demanding manufacturing environments. Engineered for perfect alignment, smooth operation, and extended service life, they are the ideal solution for precision tooling and machinery applications.

    Key Features

  • Ultra-Precision CNC Manufacturing

    • Computer-numerical control turning ensures tolerances within ±0.005mm

    • Perfect concentricity with runout less than 0.008mm

    • Superior surface finish achieving Ra 0.4μm

  • Premium Material Selection

    • High-quality bearing steel (SUJ2 equivalent) construction

    • Through-hardened to HRC 58-62 for maximum wear resistance

    • Alternative materials available for specific applications

  • Optimized Design Compatibility

    • Perfect integration with HSS die button systems

    • Custom configurations for unique application requirements

    • Standard sizes compatible with international specifications

  • Technical Specifications

  • Material: SUJ2 Bearing Steel (AISI 52100 equivalent)

  • Manufacturing Process: Precision CNC Turning

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.4μm maximum

  • Standard Sizes: 10-80mm inner diameter

  • Length Range: 15-120mm

  • Temperature Resistance: -30°C to 150°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
