suj2 material guide components

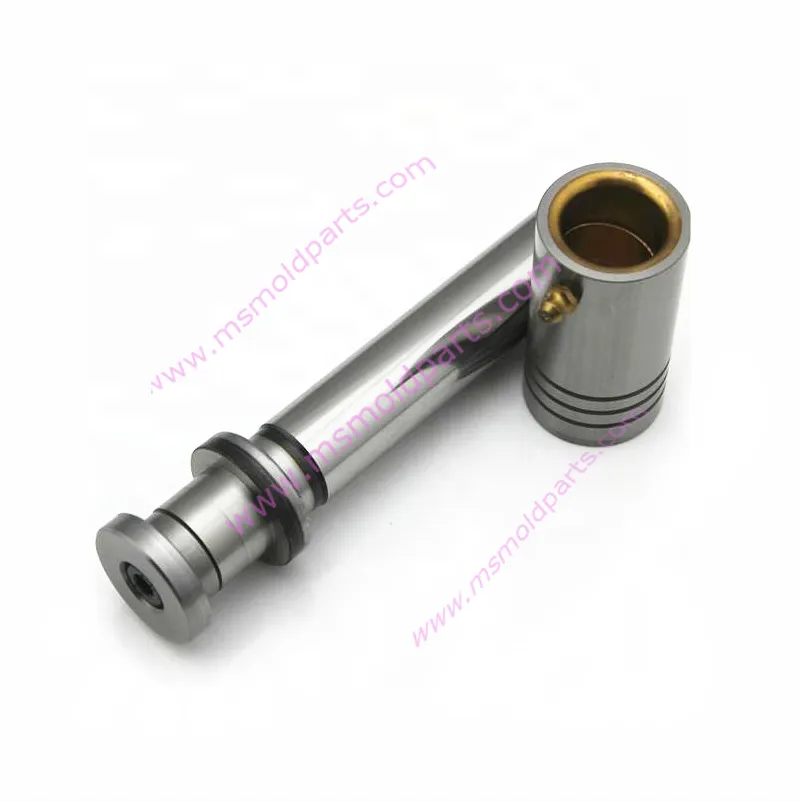

competitive price SUJ2 Misumi Standard guide Pin and Guide Bushings made in china

ms mold parts
Precision guide pins and bushings made from high-carbon chromium bearing steel (SUJ2), offering exceptional hardness (HRC 58-62), wear resistance, and dimensional stability. Compatible with Misumi standards, they ensure accurate alignment and long service life in molds, dies, and industrial machinery.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD8.00 / piece
Contact Now
add to cart

  • Our SUJ2 Material Guide Components represent the gold standard in precision guidance systems for industrial molds and machinery. Manufactured from premium SUJ2 bearing steel and designed to meet Misumi Standard specifications for guide pins and guide bushings, these components deliver exceptional wear resistance, perfect alignment, and long-term reliability in demanding production environments.

    Key Features

  • Premium Material Excellence

    • High-carbon chromium steel (SUJ2/JIS) with superior hardness and toughness

    • Excellent wear resistance and dimensional stability

    • Optimal material properties for high-load applications

  • Precision Manufacturing

    • Precision grinding to achieve tight tolerances (h6/H7)

    • Superior surface finish (Ra ≤ 0.4μm) for smooth operation

    • Perfect concentricity and straightness control

  • Standard Compliance

    • Full compatibility with Misumi Standard guide pins and guide bushings

    • Interchangeable with international standard components

    • Consistent quality across all production batches

  • Technical Specifications

  • Material: SUJ2 Bearing Steel (equivalent to AISI 52100)

  • Hardness: HRC 58-62

  • Surface Finish: Ra ≤ 0.4μm

  • Standard Sizes: 10-80mm diameters

  • Length Range: 50-500mm

  • Tolerance: h6 for pins, H7 for bushings

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
