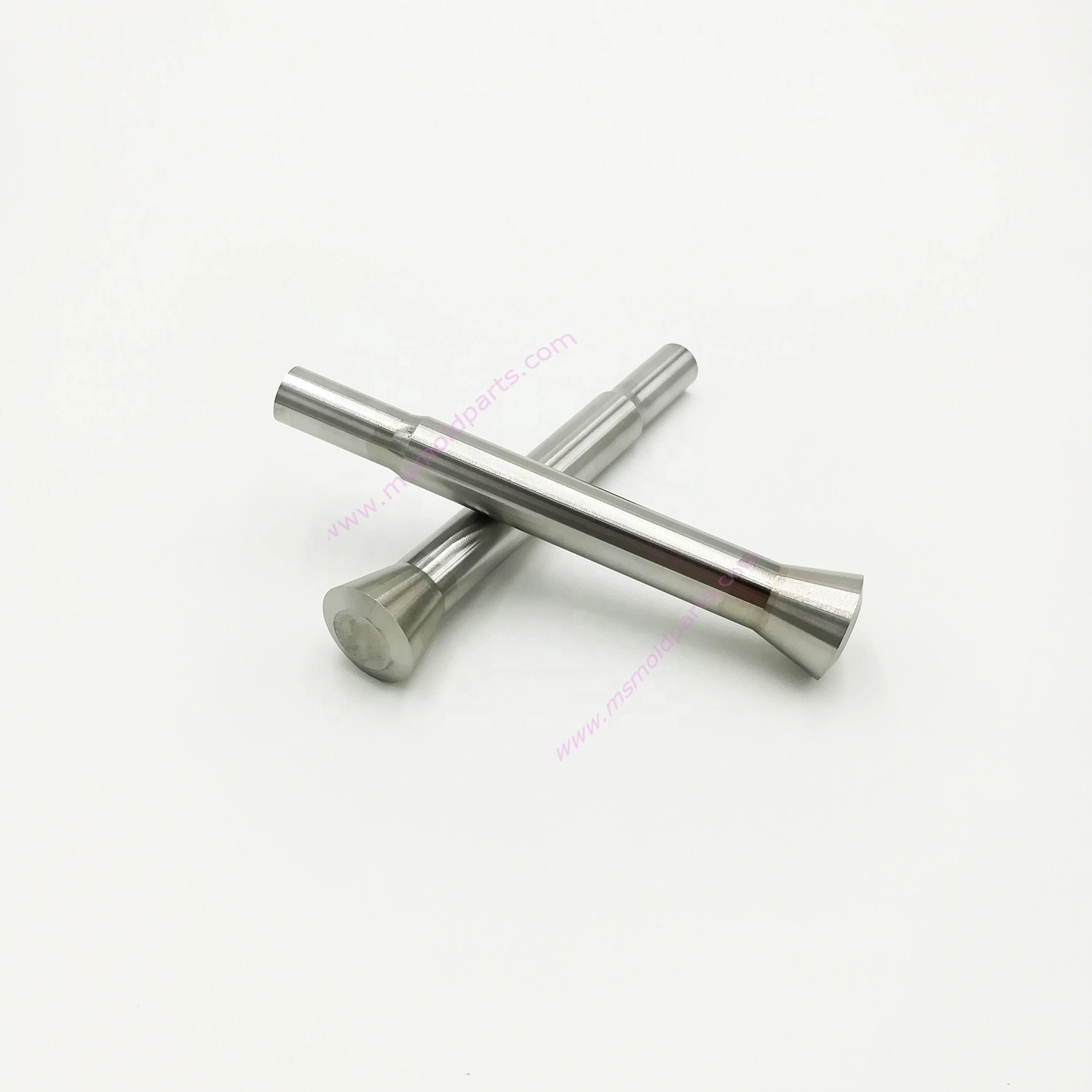

conical head punch SKD11 precision punch stepped Dongguan factory
MS-Punch
High-precision conical head punch made from SKD11 tool steel, featuring a stepped design. Manufactured in our Dongguan factory, these punches offer exceptional durability and accuracy for industrial molding and stamping applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD10.00
/ piece
Our conical head punch SKD11 is engineered for excellence in mold punch applications. Manufactured in our state-of-the-art Dongguan factory, this precision punch features a stepped design for enhanced stability and precision. Crafted from premium SKD11 tool steel, it offers exceptional hardness, wear resistance, and longevity, making it ideal for demanding industrial stamping and molding operations.
Key Features:
- SKD11 Tool Steel: The conical head punch SKD11 provides high hardness (58-62 HRC) and excellent wear resistance, ensuring extended service life.
- Stepped Design: The precision punch stepped structure improves alignment and reduces deflection during high-pressure operations.
- Conical Head: Optimized for easy entry and reduced stress on mold components.
- Dongguan Factory Manufacturing: Produced with advanced CNC machinery and strict quality control for consistent performance.
- Versatile Application: Suitable for mold punch uses in injection molds, stamping dies, and precision tooling.
Applications:
- Injection molding systems for plastic components
- Metal stamping and piercing dies
- Automotive and electronics manufacturing
- Precision tooling and jig fixtures
- High-volume production environments
Product Description
Specification
Material | Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect |
Standard | Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect |
Size | Depend on your drawings or products standard |
Place of origin | Dongguan, Guangdong, China |
Heat treatment | Available |
Surface Work | TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available |
Tolerance | + - 0.002mm |
Polishness | Close to Ra0.2 |
Hardness | Depends on material(HRC60~94) |
Delivery time | 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc. |
Main Products | Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc. |
