guide bush with shoulder

core insert sets guide bush with shoulder high polishing bushings

ms mold parts
A precision component for molds and machinery, featuring an integrated shoulder for accurate axial positioning and load bearing. Ensures perfect alignment of core insert sets, reduces wear, and maintains stability. Compatible with polishing bushings for smooth operation in high-demand applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD15.00 / piece
Contact Now
add to cart

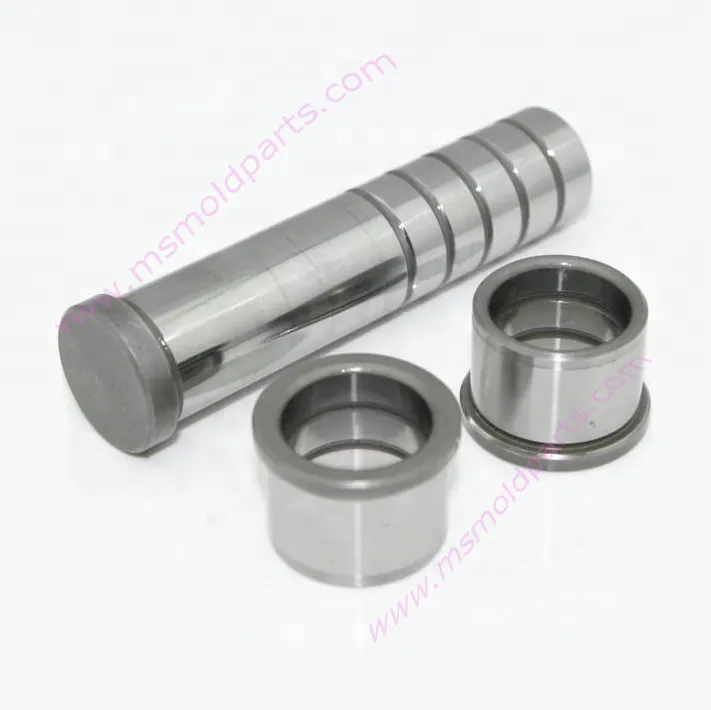

  • The shoulder guide bush is a critical precision component designed to provide accurate axial positioning and reliable guidance in mold systems. Engineered to work seamlessly with core insert sets and polishing bushings, this component ensures perfect alignment, reduces wear, and maintains stability in demanding industrial applications.

    Key Features

  • Integrated Shoulder Design

    • Provides precise axial positioning and load-bearing capability

    • Prevents component sinking or displacement during operation

    • Ensures perfect alignment with core insert sets

  • Enhanced Durability

    • Manufactured from high-grade bearing steel (SUJ2 equivalent)

    • Case hardened to HRC 58-62 for superior wear resistance

    • Precision grinding ensures Ra 0.8μm surface finish

  • Optimized Compatibility

    • Designed to work with polishing bushings for smooth operation

    • Perfect alignment with core insert sets

    • Available in standard sizes with custom options

  • Technical Specifications

  • Material: High-carbon chromium bearing steel

  • Hardness: HRC 58-62 (case hardened)

  • Surface Finish: Ra 0.8μm max

  • Standard Sizes: 10-80mm diameters

  • Tolerance: h6 grade

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
