High precision customized CNC lathe parts, durable die cast pins, and reliable guide pins for injection molding, designed for accuracy, strength, and long service life in mold applications.

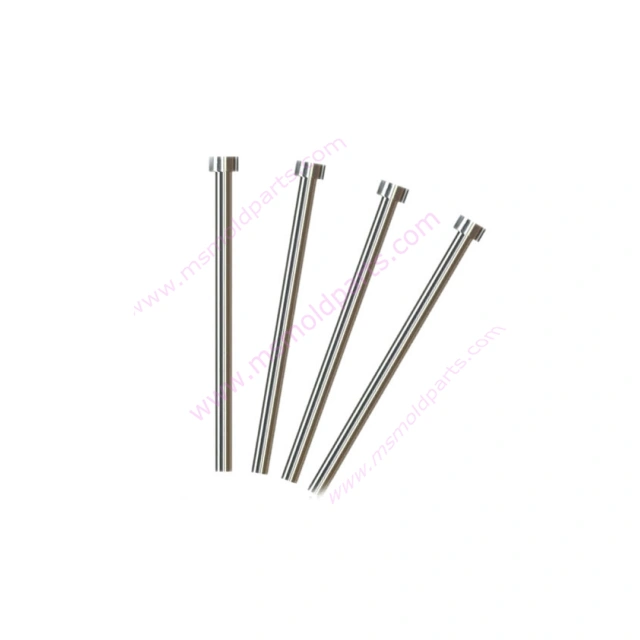

Customized CNC Lathe Parts Metal Material Stepped Dowel Mold Guide Ejector Pins

ms mold parts
The Customized CNC Lathe Parts Metal Stepped Dowel Mold Guide Ejector Pins are manufactured with high-precision CNC machining. Made from durable metal materials, they provide excellent alignment, stability, and long-lasting performance in mold applications. Suitable for customized designs to meet specific tooling requirements.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart
When it comes to precision tooling, customized CNC lathe parts are essential for achieving stability, accuracy, and durability. Our Stepped Dowel Mold Guide Ejector Pins are manufactured from high-strength metal materials and produced with advanced CNC machining, ensuring excellent performance in demanding mold applications.

Key Features:

  • High Precision Machining – Manufactured by CNC turning to achieve tight tolerances and consistent quality.
  • Durable Material – Made from premium metal alloys for superior wear resistance and long service life.
  • Customizable Options – Available in various sizes, shapes, and specifications according to customer requirements.
  • Stepped Design – Provides reliable positioning and stability, ensuring smooth mold operation.

Applications:

  • Widely used as guide pins in injection molding, improving part accuracy and efficiency.
  • Suitable for die casting molds, ensuring smooth ejection and consistent performance.
  • Applied in tooling, stamping molds, and precision assemblies where accurate positioning is required.
  • Perfect choice for mold makers seeking reliable die cast pins and guide solutions.

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
