Product Description

Features

• Precision Alignment: Ensures exact positioning between die components, improving product quality.
• Durability: High hardness and wear resistance for long service life in demanding environments.
• Standard & Custom Options: Available in MYJP standard die set guide posts or customized dimensions.
• Smooth Operation: Low-friction surface treatment minimizes wear and reduces downtime.
• Compatibility: Suitable for stamping dies, injection molds, CNC machining, and automated tooling systems.

Applications

• Automotive Industry: For stamping dies and precision metal forming.
• Aerospace Components: Ensures high-accuracy alignment in critical parts production.
• Plastic Injection Molding: Provides smooth guide movement and mold stability.
• Industrial Tooling & Fixtures: Enhances precision in high-volume manufacturing lines.

Benefits

• Improves die set accuracy and consistency in production.
• Reduces maintenance and replacement costs due to long wear life.
• Boosts manufacturing efficiency with repeatable alignment.
• Globally compatible with standard MYJP die set components.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Our Mainly Parts

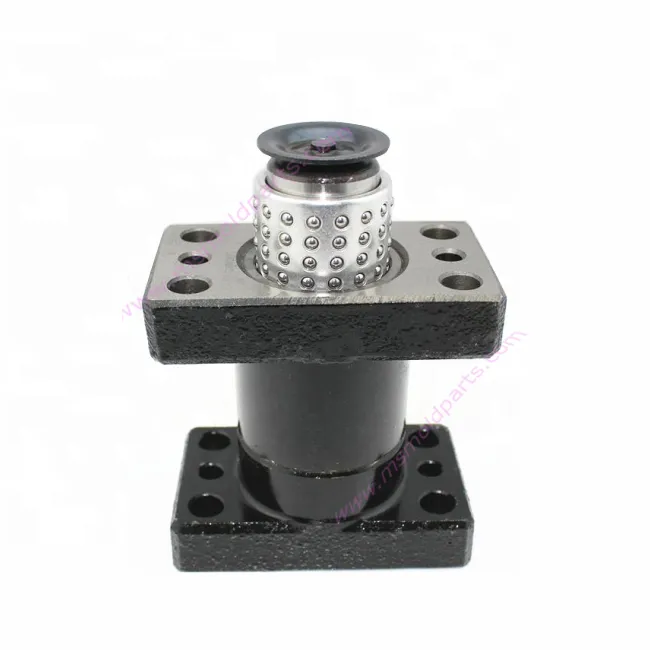

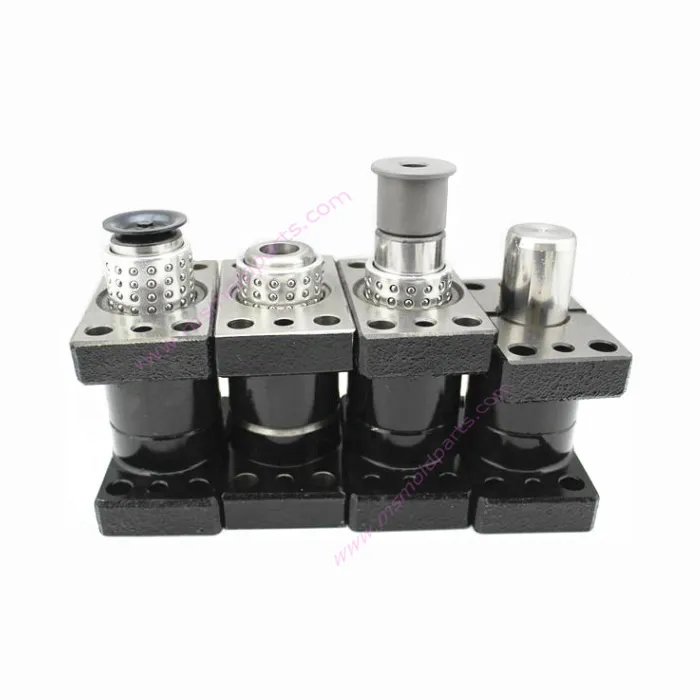

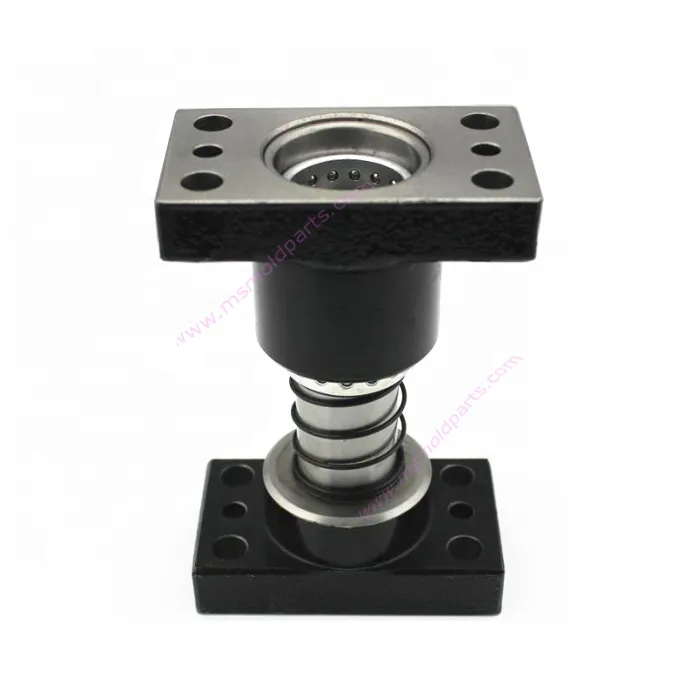

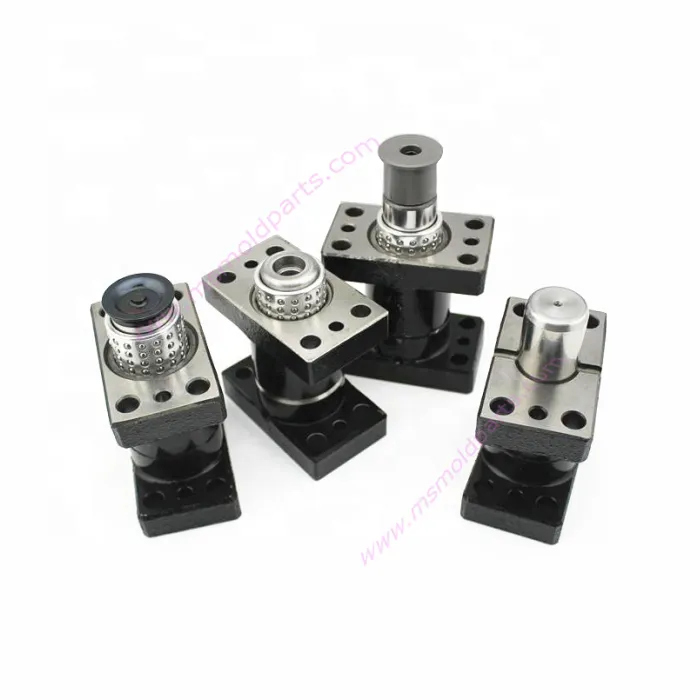

Guide Posts  for Die Sets

Exhibition

Factory Equipment

Guide Posts  for Die Sets

OUR More Parts

Packing & Delivery

Certifications

Application Description

• Provides accurate alignment between upper and lower die plates, ensuring consistent metal forming and reducing product defects.

• Guarantees smooth guiding and stability during mold opening and closing, improving the precision of molded parts.

• Works as an essential guiding component in automated systems, enhancing accuracy in high-speed and high-volume production.

• Widely applied in die sets for precision sheet metal forming, supporting durability and long tool life in mass production.

• Ensures exact positioning in complex molds and fixtures where precision and reliability are critical.
