chamfered edge

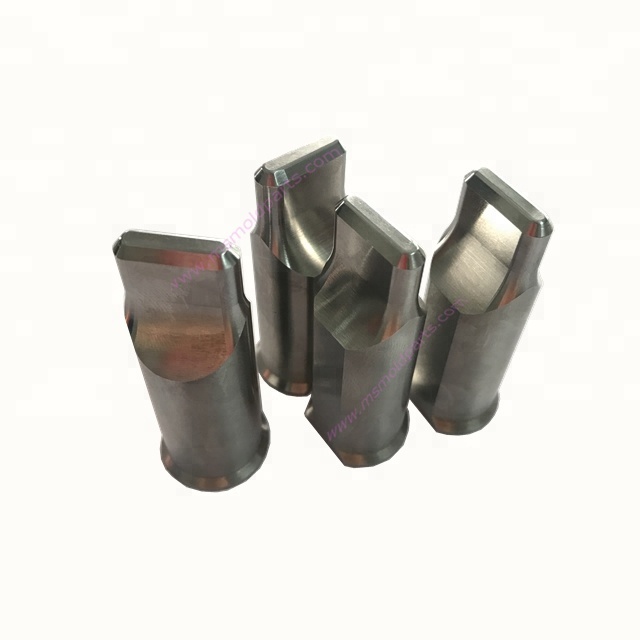

DIN 9861 D punches pin Ellipse punch with chamfered edge

ms mold parts
A chamfered edge is a precision-beveled corner machined onto tools and components. This essential feature prevents chipping, reduces stress concentration, and facilitates proper alignment in assembly, significantly enhancing the durability and performance of industrial parts
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

Product Overview
Our chamfered edge technology represents a critical advancement in tooling component design. Specifically engineered for precision tools like ellipse punch and DIN9861 standard components, this essential feature significantly enhances tool performance, durability, and operational safety in demanding industrial applications.

Key Features & Benefits:

  • Enhanced Durability
    The precision chamfered edge effectively distributes stress concentration, preventing edge chipping and cracking during high-pressure operations. This extends the service life of your ellipse punch and other tooling components.

  • Improved Safety
    By eliminating sharp 90-degree edges, our chamfered edge design reduces handling risks and prevents accidental injuries during tool installation and maintenance.

  • Optimized Performance
    The carefully angled chamfered edge facilitates smoother material flow in stamping operations, ensuring cleaner cuts and reducing the risk of material galling or adhesion.

  • Easy Installation
    Components featuring our chamfered edge design align more easily with mating parts, simplifying assembly and reducing setup time in production environments.

Technical Specifications:

  • Standard compliance: DIN9861 and other international standards

  • Available for: ellipse punch, round punches, and special shapes

  • Angle options: 30°, 45°, 60° customizations available

  • Surface finish: Precision ground to Ra 0.4μm or better

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
