DIN 9861 Standard Punches

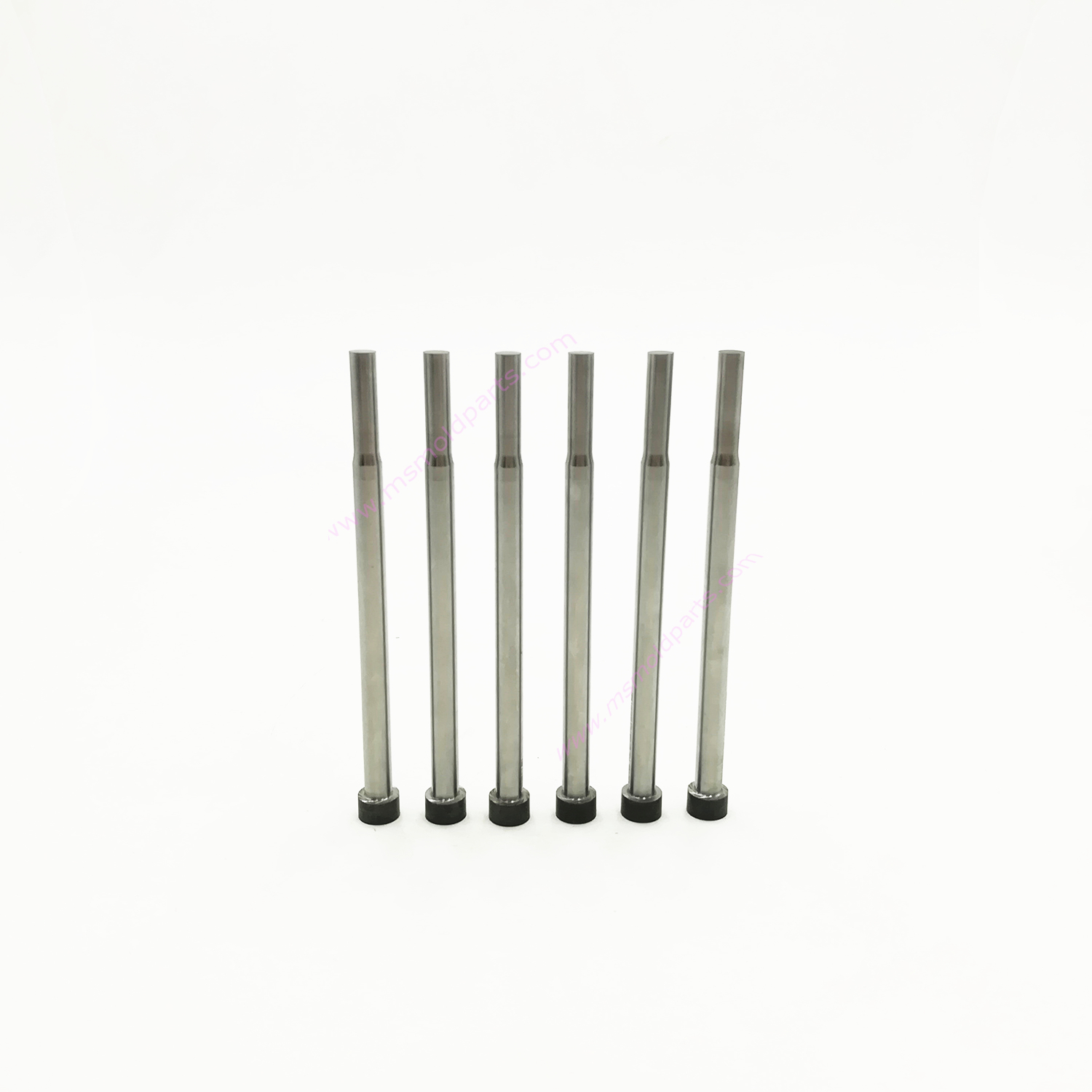

DIN 9861 HSS Two Step Punch Pins

ms mold parts
A specialized punching tool featuring two distinct diameters or levels in a single unit, enabling sequential or multi-stage operations (e.g., piloting and finishing) in one stroke. Made from hardened materials like HSS, it streamlines progressive die processes, reduces tooling complexity, and ensures precision in layered or chamfered hole formation。
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Two Step Punch Design represents a significant advancement in stamping technology, offering innovative solutions for complex multi-level punching applications. These specialized punches combine full compliance with DIN 9861 standards and the superior performance of high-speed steel (HSS) materials, delivering exceptional precision and durability in demanding stamping operations.

    Key Features

  • Innovative Two-Step Geometry

    • Precision-engineered dual-diameter design for sequential punching operations

    • Optimized step transition geometry for smooth material flow

    • Customizable step ratios and height differentials

  • Premium Material Construction

    • High-speed steel (HSS M2/M35) for excellent wear resistance

    • Alternative: Powder metallurgy steel for enhanced performance

    • Special surface treatments (TiN, TiCN coatings) available

  • Standard Compliance & Precision

    • Full conformity with DIN 9861 specifications

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Tight tolerance control within ±0.005mm

  • Technical Specifications

  • Materials: HSS (M2/M35), PM Steel

  • Hardness: HRC 62-65

  • Standard Sizes: 2.0-25.0mm diameters

  • Step Configuration: Customizable ratios

  • Surface Treatments: TiN, TiCN, TiAlN

  • Temperature Resistance: Up to 550°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
