bottle punch

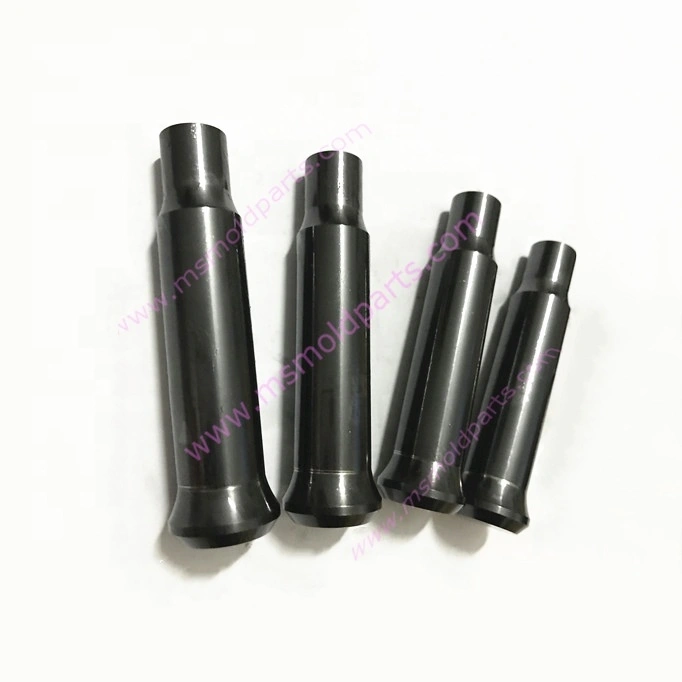

DIN 9861 mould Bottle neck Punch TiCN coating Black punzon for stamping mould

ms mold parts
A specialized punching tool with a distinctive "bottle-shaped" design, featuring a contoured neck between the cutting edge and shank. Made from hardened steel (e.g., HSS) and often coated with TiCN, it enhances strength in high-stress stamping applications by reducing stress concentration and preventing fracture.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Bottle Punch represents a specialized category of precision punching tools designed for demanding industrial applications. Combining the reliability of DIN standard specifications with advanced TiCN coating technology, these punches deliver exceptional performance in high-wear stamping operations. The unique bottle-shaped design provides enhanced strength and durability where standard punches may fail.

    Key Features

  • Optimized Bottle Design

    • Contoured neck geometry for reduced stress concentration

    • Enhanced structural integrity in high-impact applications

    • Perfect balance between cutting edge strength and shank durability

  • Premium Material Selection

    • High-speed steel (HSS M2/M35) base material

    • Alternative: Powder metallurgy steel for extreme applications

    • Special heat treatment for optimal hardness-toughness balance

  • Advanced TiCN Coating

    • Titanium Carbonitride coating for extreme surface hardness

    • Excellent adhesion and uniform coverage

    • Significant reduction in friction and material adhesion

  • Technical Specifications

  • Material: HSS (M2/M35), PM Steel

  • Hardness: HRC 62-65

  • Coating: TiCN (3-5μm thickness)

  • Surface Hardness: HV 3000-3500

  • Standard Compliance: DIN 9861 and related standards

  • Size Range: 3.0-25.0mm diameters

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
