High-quality DIN9861 countersunk head punch mold parts for precision tooling. Durable and accurate, ideal for injection molds and stamping applications. Custom sizes available to meet diverse manufacturing needs.

DIN 9861 PUNCH WITH COUNTERSUNK HEAD PUNZON DE CORTE CILINDRICO CABEZA CONICA

ms mold parts

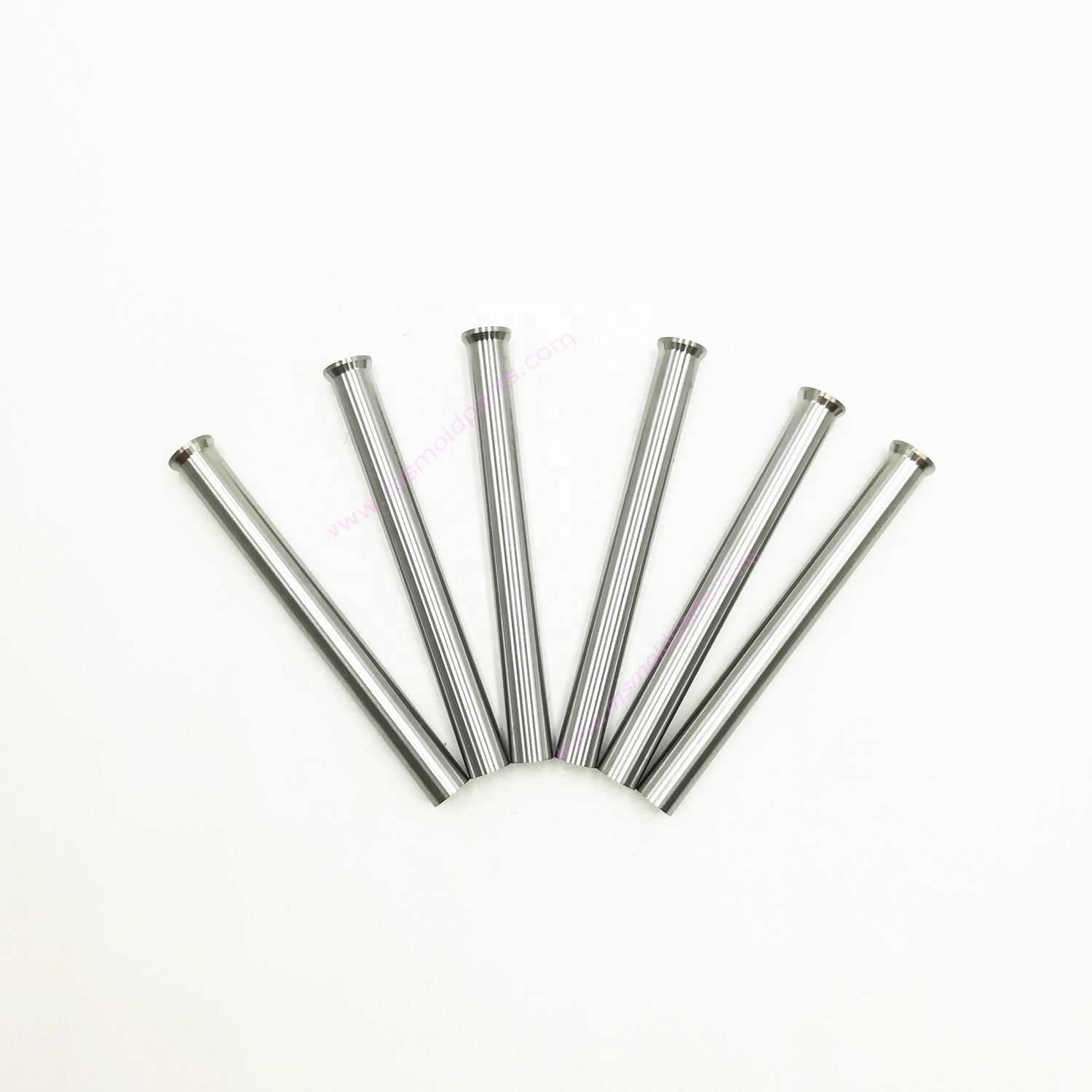

DIN 9861 punch with countersunk head, designed for precision cutting applications. This cylindrical punch ensures durability, accuracy, and reliable performance in mold and stamping processes.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD7.50 / piece
Contact Now
add to cart
TheDIN9861 Punch with Countersunk Head is a high-precision tooling component designed for superior performance in stamping, injection molding, and die-making industries. With its durable construction, accurate dimensions, and reliable punch mold compatibility, it offers an excellent solution for manufacturers seeking efficiency, stability, and long service life.

Product Features

  • Standard Compliance (DIN9861)
    Strictly manufactured according to DIN9861 standards, ensuring dimensional accuracy and interchangeability.

  • Countersunk Head Design
    Thecountersunk head provides stable positioning and precise alignment in the punch mold, reducing vibration and improving tool performance.

  • Premium Material
    Produced with high-quality alloy tool steel for superior hardness, wear resistance, and heat resistance.

  • Precision Engineering
    Advanced machining ensures smooth finishing, tight tolerances, and long-lasting durability.

  • Custom Options
    Sizes, coatings, and specifications can be tailored to meet unique project requirements (OEM/ODM available).

Applications

  • Stamping Dies – Ideal for precision punching and cutting tasks in sheet metal production.

  • Injection Molds – Provides reliable ejection and stable molding support.

  • Metal Forming – Ensures accurate shaping and improved efficiency in die-casting and forming operations.

  • Tool & Die Industry – A trusted choice for professional toolmakers and mold manufacturers.

  • Custom Projects – Suitable for specialized molds requiring non-standard DIN9861 punches.

Product Description

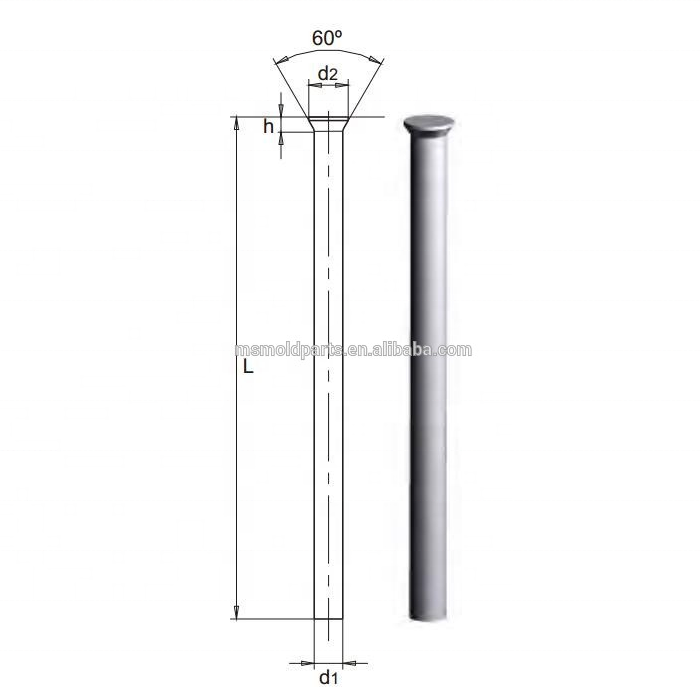

DIN 9861 PUNCH
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Our Mainly Parts
DIN 9861 PUNCH
