din iso 8020 cylindrical punch

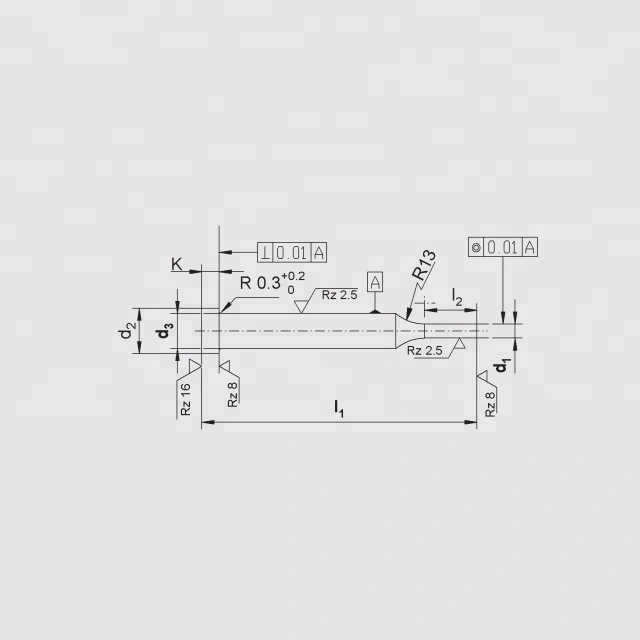

DIN ISO 8020 Punch with cylindrical head Tungsten Carbide punch with cylindrical head

ms mold parts
The din iso 8020 cylindrical punch is a standardized precision tool with a cylindrical head, designed for punching, blanking, and forming in metal stamping dies. It ensures reliable alignment, consistent performance, and easy replacement in progressive die systems.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Product Overview
    The DIN ISO 8020 cylindrical punch represents the gold standard in precision punching tools, manufactured in strict compliance with international DIN ISO 8020 specifications. While similar in performance to a tungsten carbide cylindrical head punch, this standardized tool offers guaranteed interchangeability and reliable performance for progressive dies and stamping applications. Its cylindrical head design ensures perfect alignment and consistent operation in high-volume production environments.

    Key Features & Benefits

  • Standardized Excellence

    • Manufactured to exact DIN ISO 8020 specifications

    • Guaranteed interchangeability with standard mold bases

    • Consistent quality across all production batches

  • Precision Engineering

    • Cylindrical head design for perfect alignment

    • Precision-ground surfaces for smooth operation

    • Tight tolerance control for reliable performance

  • Enhanced Durability

    • High-grade tool steel construction

    • Optimized heat treatment for extended service life

    • Superior wear resistance for demanding applications

  • Technical Specifications

  • Standard: DIN ISO 8020 Compliant

  • Head Type: Cylindrical Design

  • Material: Premium Tool Steel

  • Hardness: HRC 60-62

  • Surface Finish: Precision Ground

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
