din 1530 ejector pins

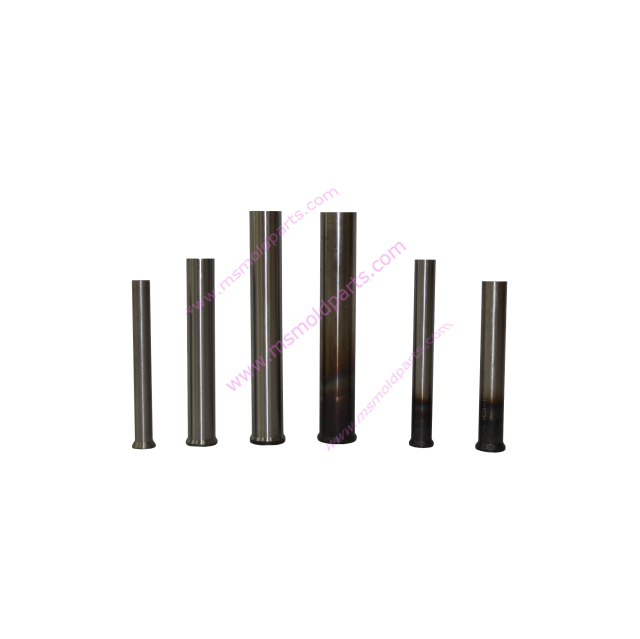

DIN1530 standard part 1 type A nitrided blanknitriert injection molds ejector pins

ms mold parts
DIN 1530 ejector pins are standardized precision components used in injection molds and die-casting systems to eject finished parts. They ensure reliable performance, easy interchangeability, and consistent quality in high-volume production environments.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD7.00 / piece
Contact Now
add to cart

Product Overview
DIN 1530 ejector pins are internationally standardized precision components designed specifically for ejection systems in injection molds and die-casting applications. These pins serve as essential injection mold ejector pin components, ensuring smooth and reliable part ejection in various manufacturing processes. Available in standard configurations and specialized versions like the nitrided blanknitriert ejector pin, they provide solutions for different operational requirements and environmental conditions.

Key Features & Benefits

  • International Standard Compliance
    Manufactured according to DIN 1530 specifications, these pins guarantee perfect interchangeability and compatibility with global mold base systems, simplifying maintenance and replacement procedures.

  • Enhanced Surface Treatments
    Specialized versions like the nitrided blanknitriert ejector pin undergo advanced surface hardening processes, significantly improving wear resistance, corrosion protection, and overall service life.

  • Precision Engineering
    Each injection mold ejector pin is precision-ground to exact tolerances, ensuring consistent performance, smooth operation, and reliable ejection in high-cycle production environments.

  • Proven Reliability
    As standardized DIN 1530 ejector pins, they deliver dependable performance batch after batch, reducing downtime and maintenance costs in continuous manufacturing operations.

Technical Specifications

  • Standard: DIN 1530 Compliant

  • Material: High-grade alloy steel

  • Hardness: 50-55 HRC (Core)

  • Surface Treatment: Standard polish or nitrided option

  • Size Range: 1.0mm to 20.0mm diameters

  • Length Variations: Multiple standard lengths available

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
