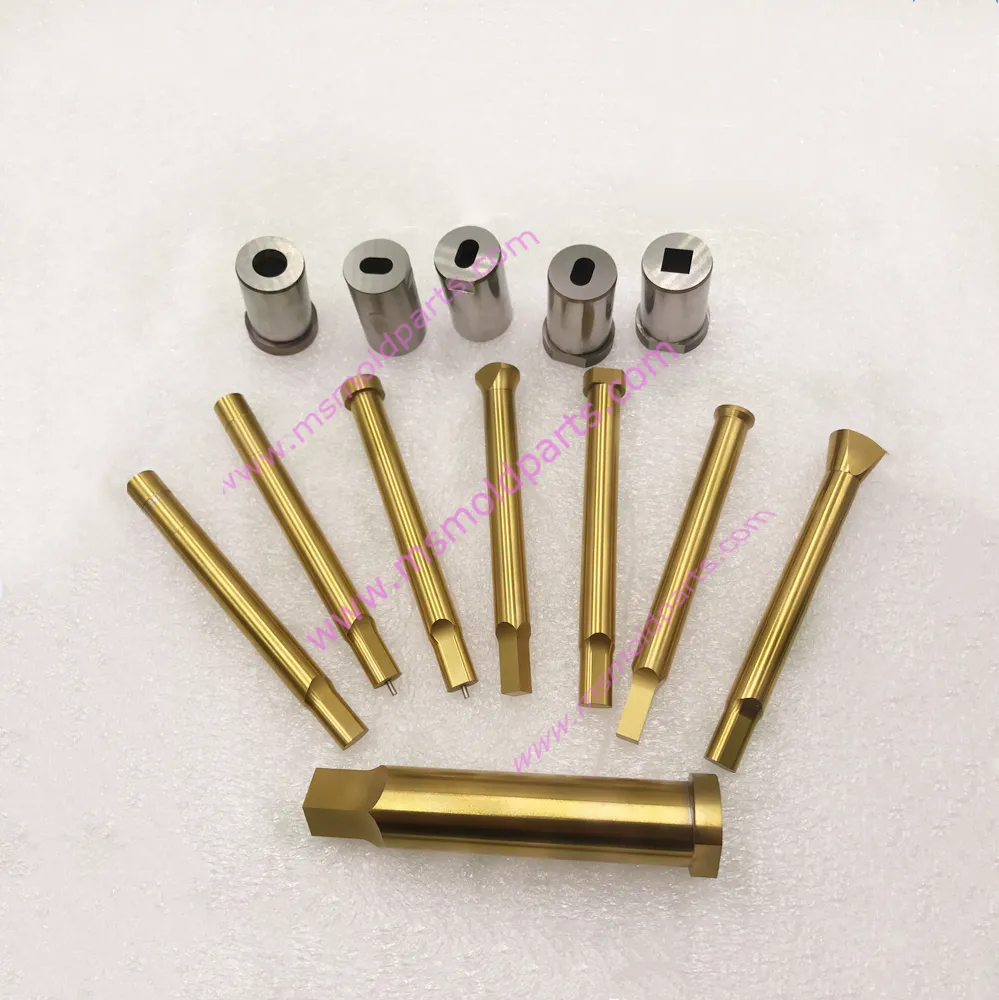

DIN9861 B-HSS Headless Precision Punch

ms mold parts
A headless precision punch compliant with DIN 9861 Type B standard, made of high-speed steel (HSS) with a hardness of HRC 62-65. The headless design saves space and prevents interference, suitable for high-precision stamping, progressive dies, and precision hole punching. It ensures tight dimensional tolerances (±0.005mm), wear resistance, and long-term stability.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart
  • Product Name:Mold Punch

  • Our DIN9861 Punch Stamping Systems represent the integration of German engineering standards with advanced precision manufacturing technology. This comprehensive solution combines DIN9861-compliant stamping systems with innovative headless high precision punch designs and premium high speed steel HSS punch components. Engineered for exceptional accuracy and durability, these systems deliver reliable performance in demanding industrial stamping applications while maintaining strict adherence to international quality standards.

    Key Features

  • DIN9861 Standard Compliance

    • Full conformity with DIN 9861 specifications for dimensional accuracy

    • Interchangeable components ensuring seamless system integration

    • Certified material quality and manufacturing processes

  • Headless High Precision Design

    • Flush-mounted configuration for space-optimized tooling layouts

    • Ultra-precise guidance systems with minimal clearance

    • Enhanced stability under high-frequency operation

  • High Speed Steel Performance

    • Premium HSS material (M2/M35) for superior wear resistance

    • Excellent red hardness maintaining cutting edge integrity

    • Optimized heat treatment for maximum tool life

  • Technical Specifications

  • System Standard: DIN 9861

  • Punch Materials: HSS M2/M35, Powder Metallurgy Steel

  • Hardness: HRC 62-65

  • Surface Finish: Ra 0.2μm maximum

  • Diameter Range: 2.0-25.0mm

  • Length Options: 40-120mm

  • Straightness: 0.005mm/100mm maximum

  • Temperature Resistance: Up to 550°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
