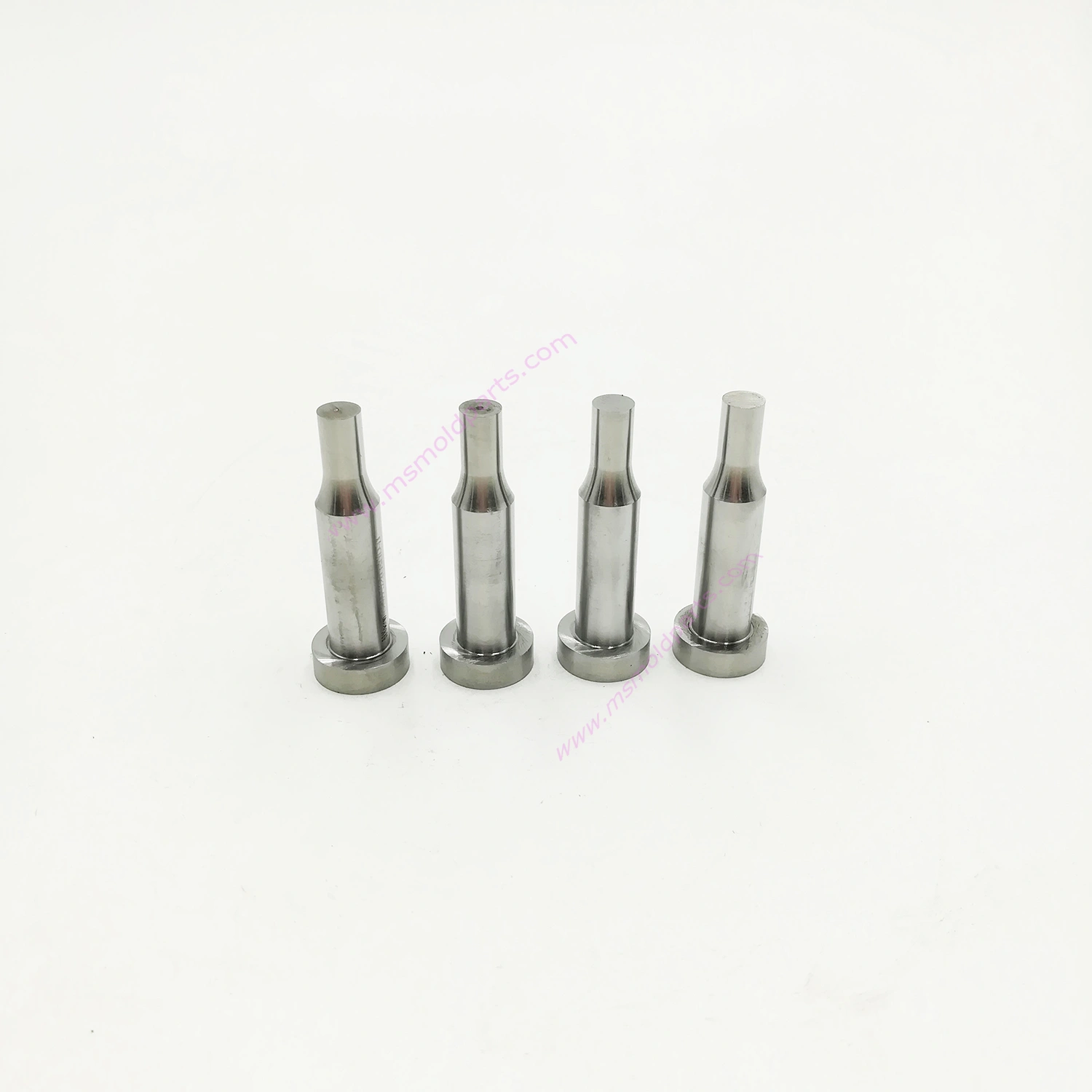

DIN9861 Standard HSS Punch with countersunk head

MS-Punch
High-performance DIN9861 standard HSS punch with countersunk head for precision tooling applications. Made from high-speed steel (HSS), this punch ensures durability, wear resistance, and compliance with German DIN standards. Ideal for stamping, punching, and mold operations.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD10.00 / piece
Contact Now
add to cart
Our DIN 9861 D standard HSS punch is crafted from high-speed steel (HSS) and features a precision countersunk head design for seamless integration into industrial tooling systems. Compliant with German DIN standards, this HSS punch delivers exceptional wear resistance, durability, and accuracy in demanding stamping, punching, and mold applications. The countersunk head punch ensures secure fastening and easy installation, making it a reliable choice for high-volume production environments.

Key Features:

  • DIN 9861 D Compliance: Manufactured to strict German DIN standards for guaranteed compatibility and performance.
  • High-Speed Steel (HSS) Material: Offers superior hardness, heat resistance, and longevity compared to conventional tool steels.
  • Countersunk Head Design: The countersunk head punch facilitates easy installation and secure seating in mold plates and die sets.
  • Precision Engineering: Tight tolerances (±0.01mm) and fine surface finishes ensure consistent results in precision operations.
  • Versatility: Suitable for blanking, piercing, and forming across various industries, including automotive and electronics.

Applications:

  • Metal stamping and punching dies
  • Precision blanking and piercing operations
  • Injection mold ejection systems
  • Automotive component manufacturing
  • Electronics and consumer goods production
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

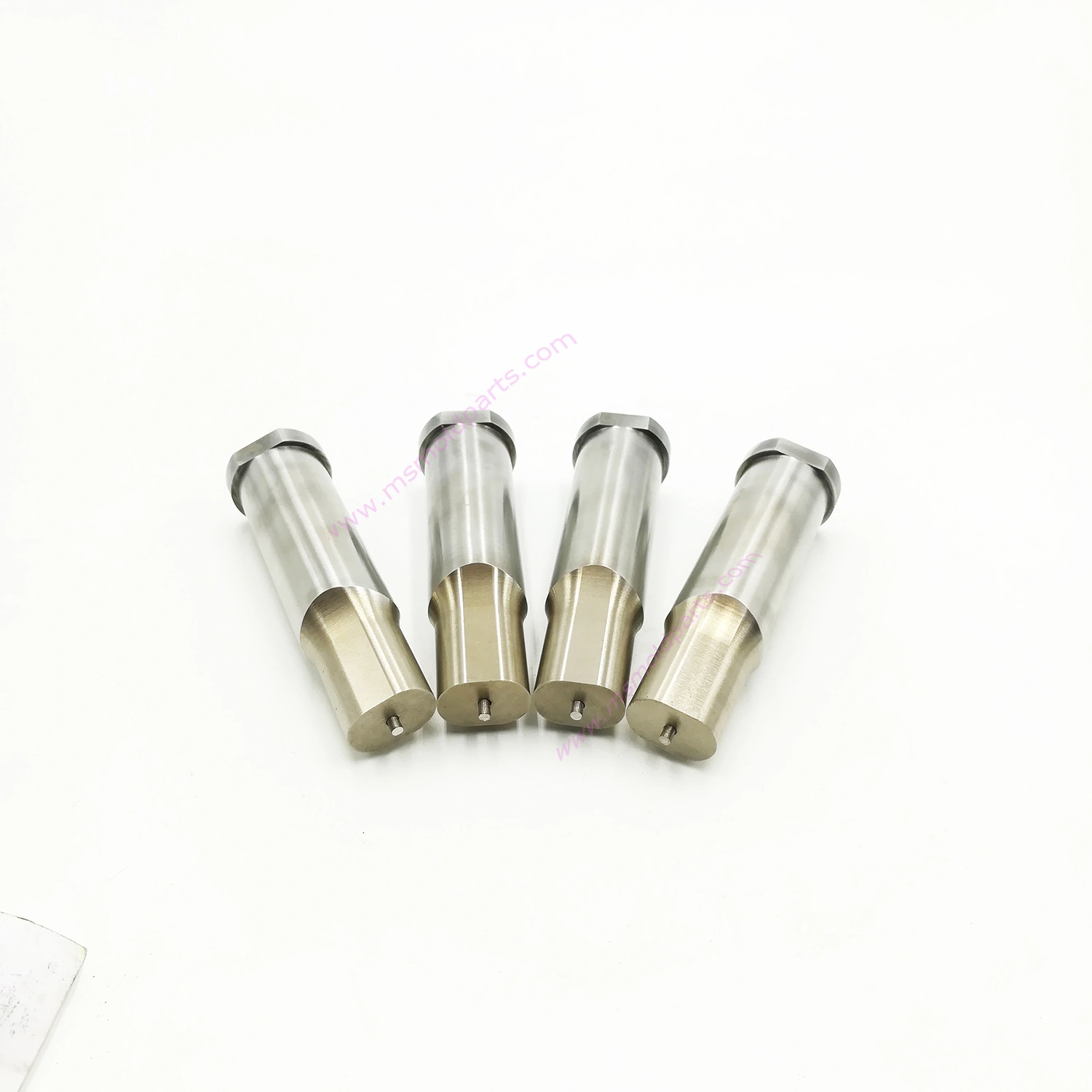

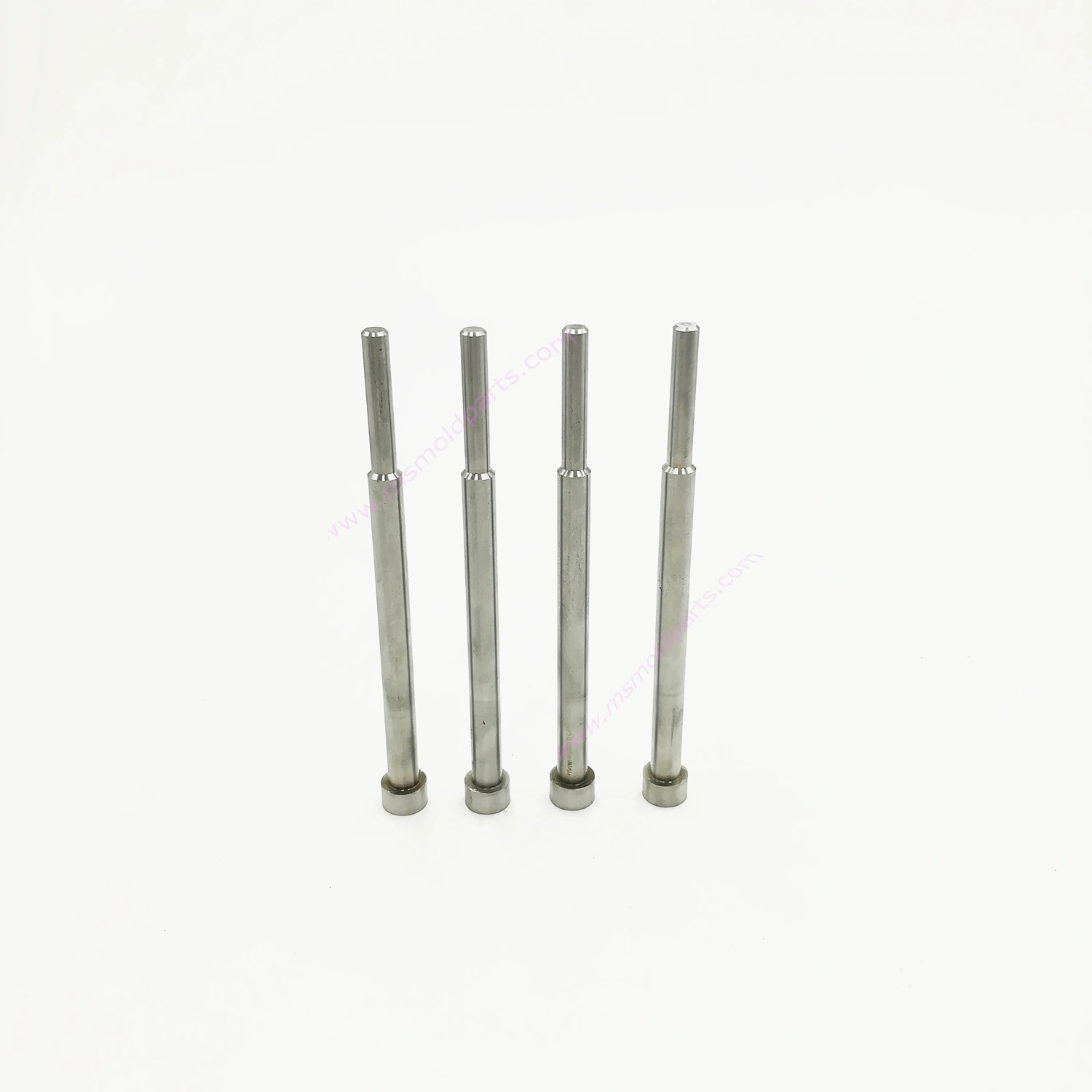

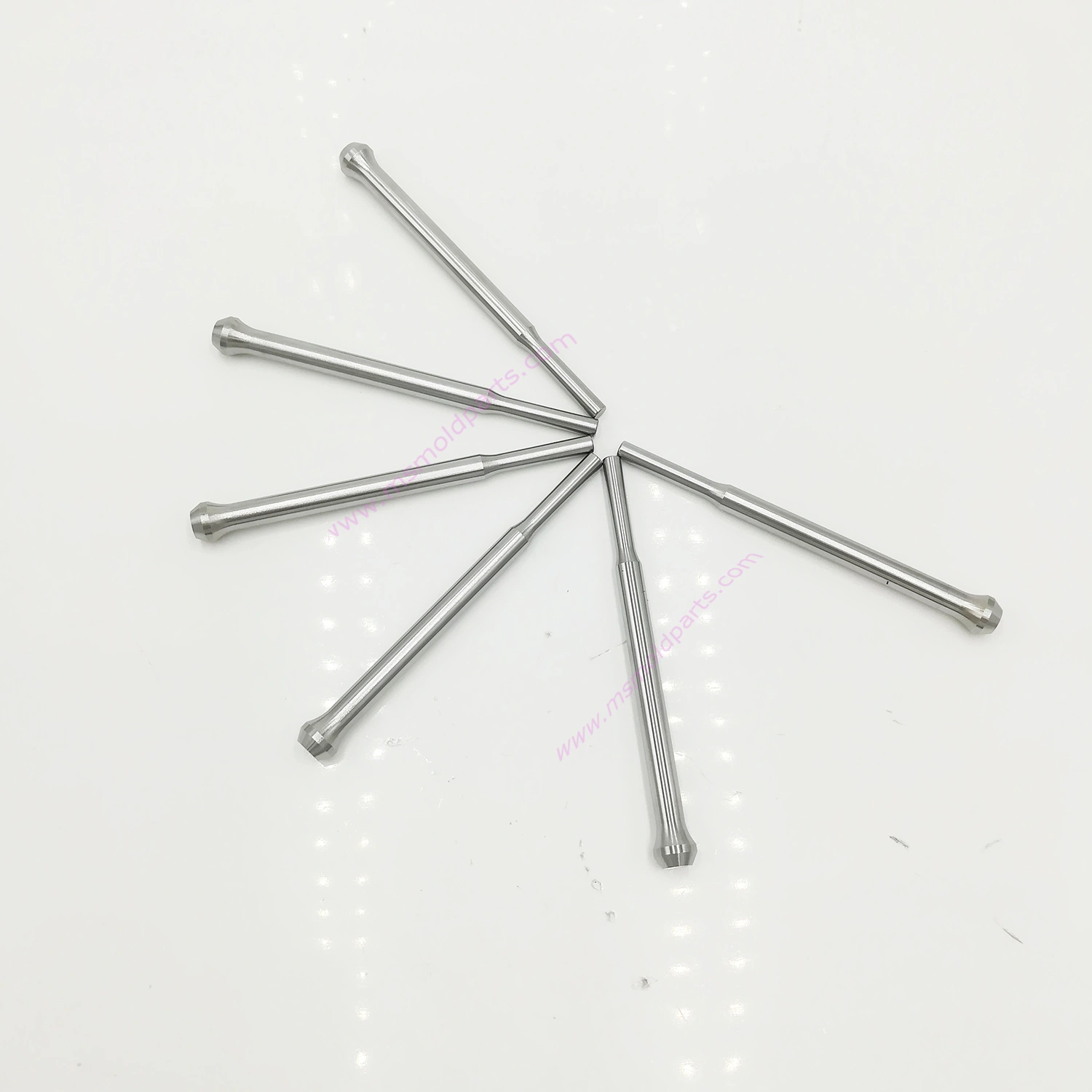

Our Mainly Parts
