Dowel pin guides and Danly guide pins provide accurate mold alignment and smooth guiding. Compatible with Agathon Normalien and Misumi systems, ensuring durability and precision in molds and dies.

Dongguan hardware with good hardness normalien standard guide pin and guide bush

MS-023

Dowel pin guides and Danly guide pins provide accurate mold alignment and smooth guiding. Compatible with Agathon Normalien and Misumi systems, ensuring durability and precision in molds and dies.

Delivery

FOB

minimum order

1 piece

Supply Ability

10000.0piece / Month

Country of Origin

ShenZhen GuangZhou

Quantity:

USD1.00 - USD20.00 / piece

Contact Now

add to cart

Product Introduction

OurNormalien Standard Guide Pin and Guide Bush are high-quality hardware components designed with excellent hardness and wear resistance. They provide precise guiding, durability, and reliable performance in mold and die applications.

Key Features

High hardness material made from premium alloy steel with advanced heat treatment.
Complies with Normalien Standard for easy replacement and global compatibility.
Provides accurate alignment between mold plates, ensuring smooth operation.
Enhanced wear resistance with surface treatment to reduce maintenance.

Technical Advantages

Stable guiding system with minimal tolerance deviation.
Hardness level of HRC 58–62 for long service life.
Strong resistance to corrosion and wear.
Suitable for different mold configurations and tooling requirements.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Our Mainly Parts

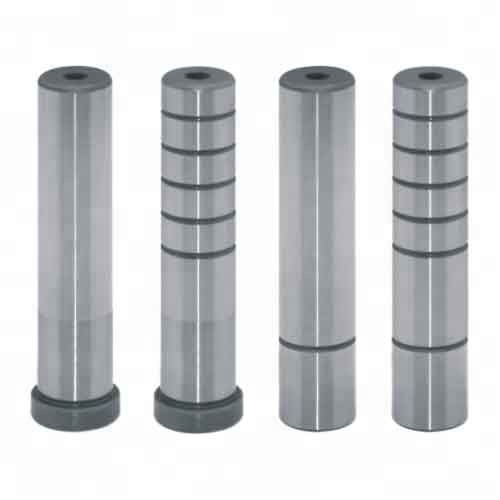

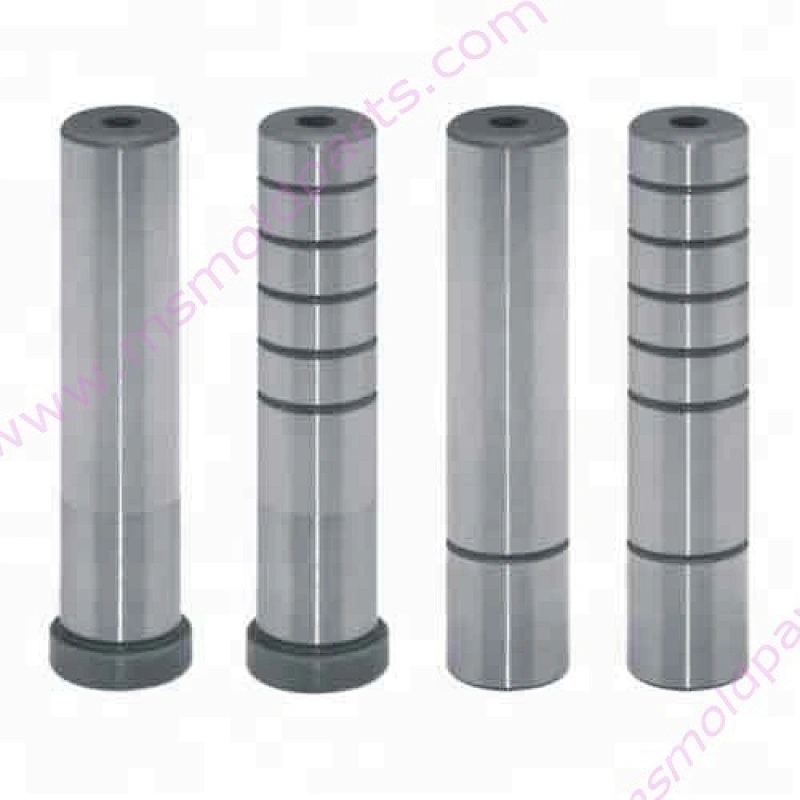

Normalien Standard Guide Pin

Exhibition

Factory Equipment

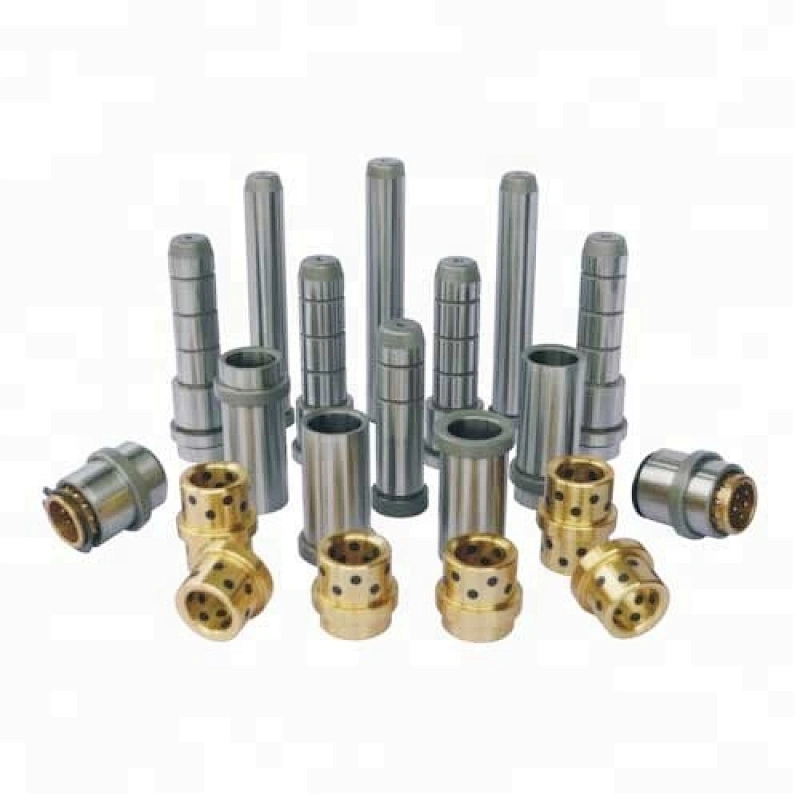

OUR More Parts

Packing & Delivery

Certifications

The Normalien Standard Guide Pin and Guide Bush are widely used in mold and die manufacturing, providing precision alignment, stability, and durability. Their main applications include:

1. Injection Molds

Used to guide and align moving and fixed plates, ensuring accurate mold closing and opening. This improves production efficiency and reduces product defects.

2. Stamping Dies

Provides stable guiding for high-speed stamping operations, minimizing wear and preventing misalignment, which extends tool life and ensures consistent part quality.

3. Die-Casting Molds

Maintains precise positioning under high temperature and pressure, enhancing stability and reliability in die-casting production processes.

4. Precision Hardware Tooling

Ensures accurate alignment in fine hardware and electronic components manufacturing, where high precision and minimal tolerance are required.

5. High-Volume Production

With excellent hardness and wear resistance, these components perform reliably in long production runs, reducing downtime and maintenance costs.

Recommend Products
