High precision Europe Norm mold alignment pins and the guidepost ensure accurate positioning in injection molds. Durable design provides stability, long service life, and cost-effective solutions for mold alignment needs.

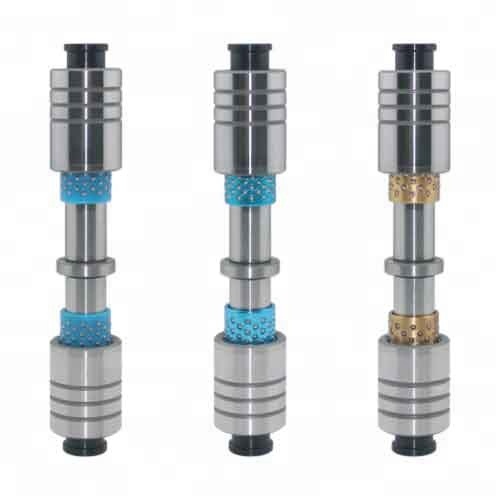

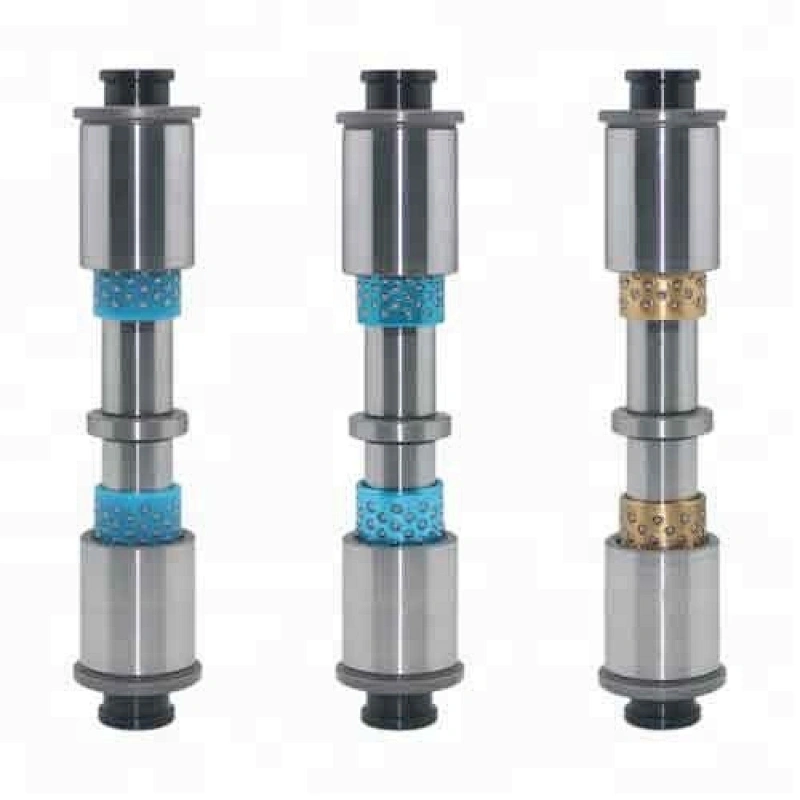

Europe Standard Holder Guide Post Sets Basic Guide Post Sets

ms mold parts
The Europe Standard Holder Guide Post Sets / Basic Guide Post Sets are designed for high precision mold alignment, ensuring smooth operation, durability, and long service life in injection molding and stamping applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD22.00 / piece
Contact Now
add to cart
OurEurope Standard Holder Guide Post SetsandBasic Guide Post Sets are engineered for high-precision injection molds, ensuring smooth operation and reliable alignment.

Key Features

  • Europe Norm Compliance: Designed according to Europe norm standards, ensuring compatibility and precision fit across global mold systems.
  • Mold Alignment Pins: Equipped with high-quality mold alignment pins for accurate positioning and minimized mold wear.
  • The Guidepost System: Robust guidepost structure guarantees smooth sliding, extended durability, and enhanced stability during high-speed molding.
  • Material & Hardness: Made from premium alloy steel with heat treatment for excellent hardness, wear resistance, and long service life.
  • Custom Options: Available in various sizes and configurations to meet OEM/ODM requirements for plastic injection molds.

Applications

  • Widely used in plastic mold components for injection molding.
  • Ensures precise mold alignment, reducing cycle times and improving production efficiency.
  • Ideal for both standard mold basesandcustomized mold projects.

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Our Mainly Parts
Europe Standard Holder Guide Post
