extruded punch din 7952

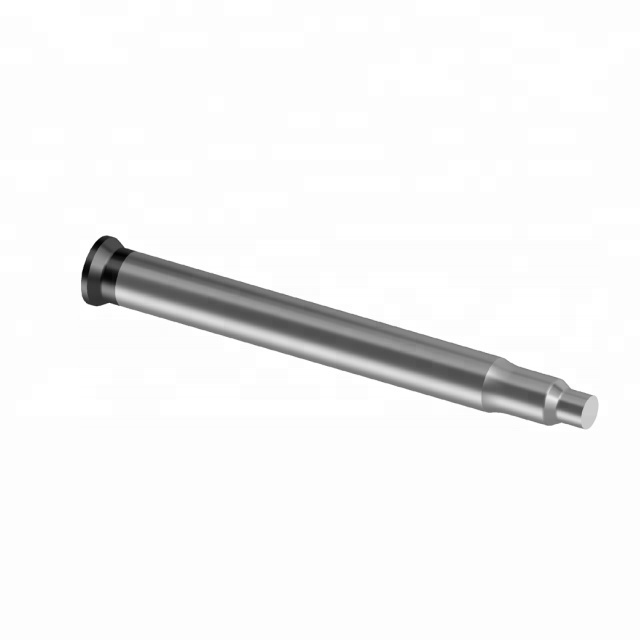

Extruded Punch according DIN 7952

ms mold parts
The extruded punch din 7952 is a standardized precision tool manufactured through extrusion, designed for punching, forming, and blanking in metal stamping dies. It ensures reliable performance, dimensional accuracy, and easy replacement in progressive die systems.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Product Overview
    The Extruded Punch DIN 7952 is a high-performance tooling component manufactured to meet the rigorous DIN 7952 international standard. Designed for precision metal forming and stamping operations, this punch combines exceptional durability with exact dimensional accuracy. As part of our high standard punches series, it ensures reliable performance in progressive dies and other demanding industrial applications.

    Key Features & Benefits

  • Standardized Precision

    • Fully compliant with DIN 7952 specifications

    • Guaranteed interchangeability with standard die sets

    • Consistent quality across production batches

  • Superior Durability

    • Manufactured from high-grade tool steel

    • Precision extrusion process for optimal grain structure

    • Advanced heat treatment for enhanced wear resistance

  • Optimized Performance

    • Specialized geometry for efficient material flow

    • Reduced friction design for smoother operation

    • Excellent dimensional stability under high pressure

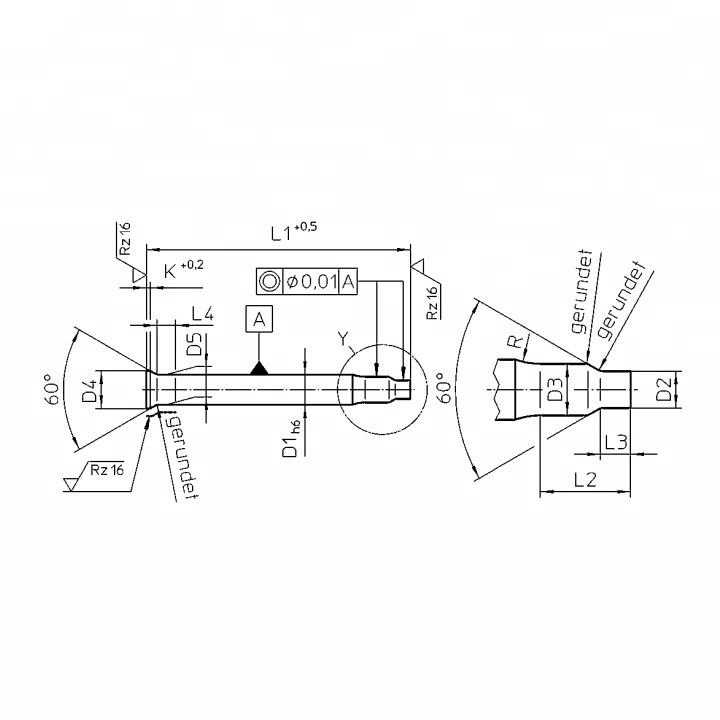

  • Technical Specifications

  • Standard: DIN 7952 Compliant

  • Type: Extruded Punch

  • Material: Premium Tool Steel (DIN 1.2379/equivalent)

  • Hardness: 60-62 HRC

  • Surface Finish: Precision ground, Ra ≤ 0.4 μm

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
