pin guide

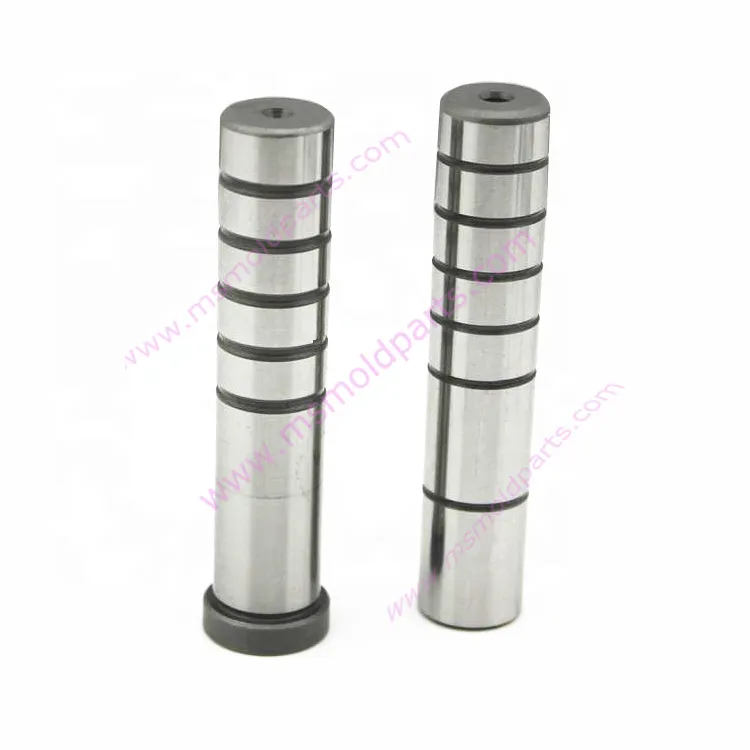

Groove guide pin SUJ2 Material guide pins for mould

ms mold parts
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Industrial Shoulder Guide Posts represent the highest standard of reliability and precision in heavy-duty industrial applications. Engineered to work seamlessly with precision guide pins and pin guide systems, these robust components deliver exceptional load-bearing capacity, perfect alignment, and extended service life in the most demanding manufacturing environments.

    Key Features

  • Enhanced Shoulder Design

    • Integrated shoulder provides superior axial positioning accuracy

    • Prevents sinking under extreme pressure conditions

    • Distributes load evenly across mounting surfaces

  • Premium Material Construction

    • High-carbon chromium bearing steel (SUJ2 equivalent)

    • Through-hardened to HRC 58-62 for maximum durability

    • Excellent wear and impact resistance

  • Precision Engineering

    • Micro-ground surfaces achieving Ra 0.4μm finish

    • Tight tolerance control within ±0.005mm

    • Perfect perpendicularity and concentricity

  • Technical Specifications

  • Material: SUJ2 Bearing Steel (AISI 52100 equivalent)

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.4μm maximum

  • Standard Diameters: 15-100mm

  • Length Range: 100-600mm

  • Shoulder Height: 5-25mm (customizable)

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
