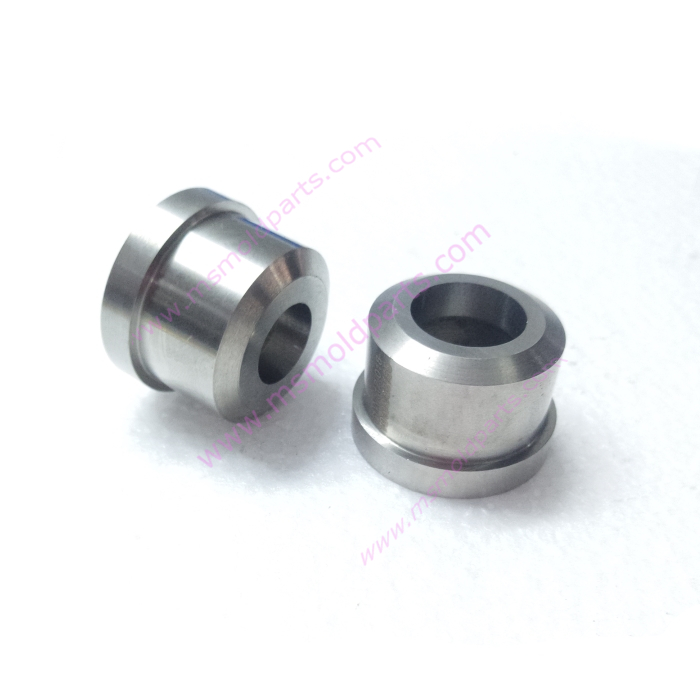

Guide bush die mold buttons high hardness shoulder bushing

Our Bushing Shoulder (also known as a Shoulder Guide Bush) is a critical component designed to provide unwavering support and precise alignment in stamping dies and plastic molds. It serves as a robust housing and guide for standard guide bush components, ensuring that moving parts like ejector pins or core pins maintain perfect perpendicularity throughout the production cycle.

What is a Bushing Shoulder?

A Bushing Shoulder is a flanged sleeve that is press-fitted into a mold or die plate. Its integrated shoulder provides a positive stop against the plate, guaranteeing accurate installation depth and preventing the bushing from being pushed through under pressure. This makes it an essential partner to other tooling components like button molds and standard guide bushes, creating a complete and reliable guiding system.

Key Features & Benefits:

• Precision Alignment & Stability: Ensures absolute perpendicularity for core pins, ejector pins, and other guided components, crucial for high-tolerance button molds and precision stamping operations.

• Enhanced Durability: Manufactured from high-grade tool steel and hardened to a high surface hardness, our bushing shoulder components resist wear and deformation, significantly extending the service life of your entire mold or die.

• Simplified Installation & Replacement: The shoulder design allows for easy press-fitting and secure seating, simplifying maintenance and reducing downtime during component replacement.

• Robust Support: Withstands high lateral forces and prevents bushing rotation, providing a stable and reliable guide for the internal guide bush.
