Shouldered Guide Post

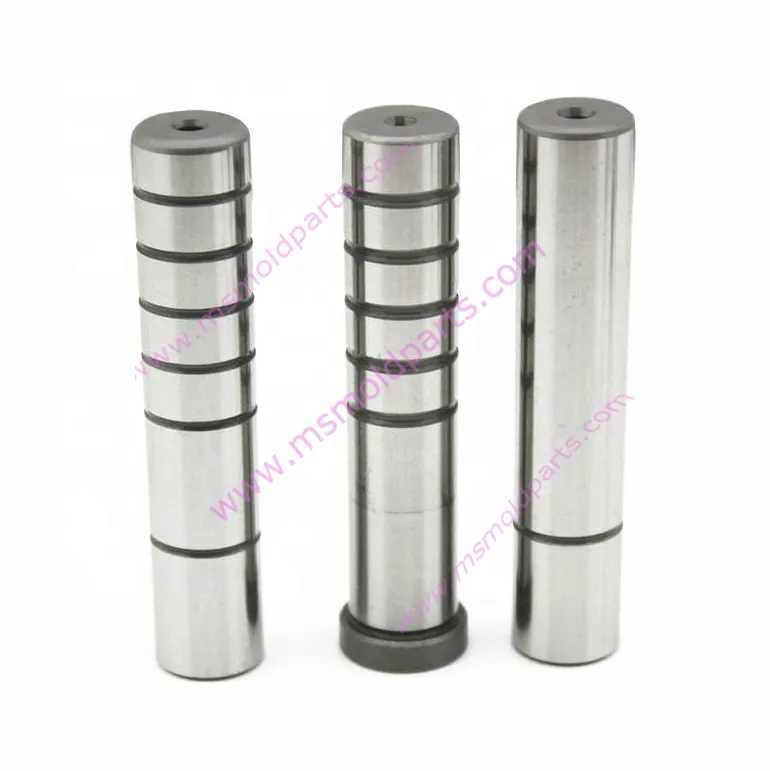

guide pillar with collar shoulder type guide post for injection mold

ms mold parts
A precision-ground, heat-treated steel component designed to ensure accurate alignment and smooth movement between mold plates in injection molding systems. Its hardened surface (typically HRC 58-62) provides exceptional wear resistance, while its rigid structure prevents deflection under high pressure, extending mold life and maintaining production consistency.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our hardened guide post for injection mold represents the highest standard of durability and precision in mold alignment technology. Engineered with specialized features including precision guide pillars with collar and shouldered guide post designs, this component delivers exceptional wear resistance and reliable performance in the most demanding injection molding environments.

    Key Features

  • Superior Hardness & Durability

    • Through-hardened to HRC 58-62 for maximum wear resistance

    • Precision grinding ensures surface finish of Ra 0.4μm maximum

    • Maintains dimensional stability under high clamping pressures

  • Precision Engineering

    • Guide pillar with collar design for accurate axial positioning

    • Shouldered guide post configuration for enhanced load distribution

    • Strict tolerance control within ±0.005mm

  • Optimized Performance

    • Special heat treatment process prevents deformation

    • Ground finish reduces friction and prevents sticking

    • Compatible with standard guide bushings

  • Technical Specifications

  • Material: High-carbon chromium bearing steel (SUJ2 equivalent)

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.4μm maximum

  • Standard Diameters: 10-80mm

  • Length Range: 100-500mm

  • Collar/Shoulder Options: Multiple configurations available

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
