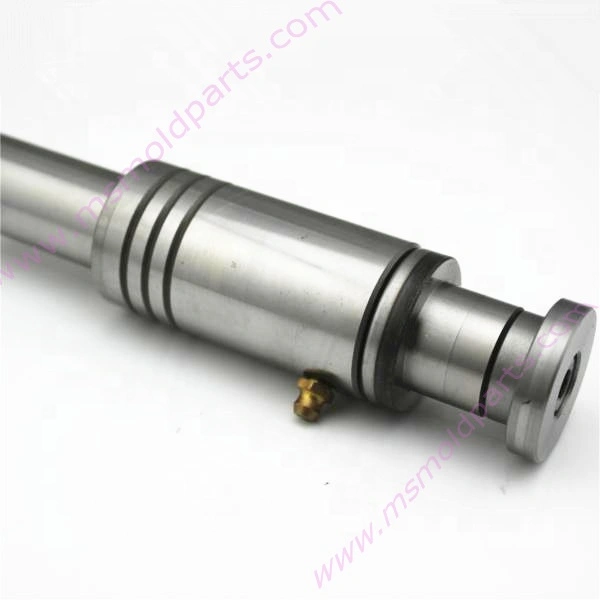

Guide posts set

Guide posts set mold parts and bushes for hardware molds

ms mold parts
A precision alignment system for molds and industrial machinery, typically comprising matched guide posts and bushings. Ensures accurate plate alignment, reduces wear, and maintains stability in hardware molds and stamping dies. Designed for durability with hardened steel construction and seamless integration with complementary components.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Guide Posts Set represents a complete alignment solution specifically engineered for demanding hardware mold applications. As critical mold components, these sets ensure perfect alignment, smooth operation, and extended service life in various industrial molding processes.

    Key Features

  • Precision Alignment

    • Ground to exacting tolerances for perfect fit

    • Ensures accurate mold plate alignment

    • Reduces wear on complementary bushes for hardware molds

  • Enhanced Durability

    • Manufactured from high-grade bearing steel

    • Through-hardened to HRC 58-62

    • Superior wear resistance for long service life

  • Complete System Solution

    • Available as matched sets with guide bushes

    • Perfect compatibility with standard hardware molds

    • Consistent performance in high-pressure applications

  • Technical Specifications

  • Material: High-carbon chromium bearing steel (SUJ2)

  • Hardness: HRC 58-62

  • Surface Finish: Precision ground, Ra 0.8μm max

  • Standard Sizes: 10-80mm diameters

  • Length Range: 100-500mm

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
