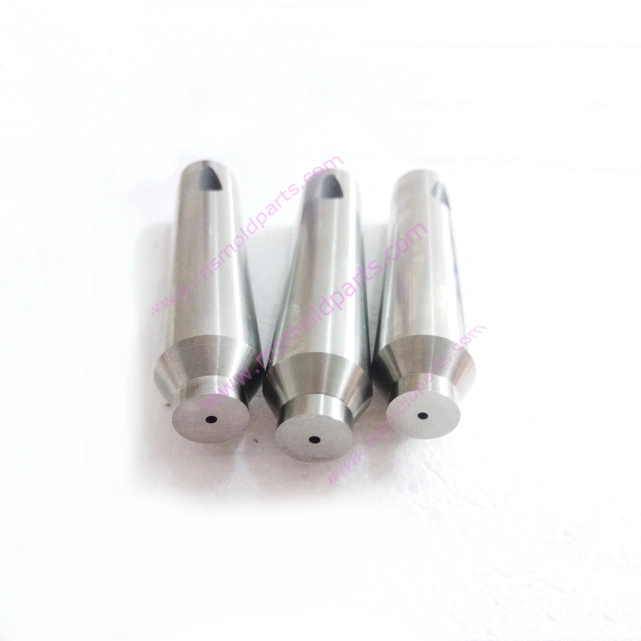

cylindrical punch

Heavy duty ball lock ejector punch HSS punch rod for mould Cylindrical punch with no head

ms mold parts
A straight, rod-shaped tool with uniform diameter along its length, typically made of hardened steel (e.g., HSS). Used in stamping, piercing, or molding operations to create holes or shapes in materials. Designed for precise alignment, durability, and consistent performance in industrial applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Lock Ejector Punch system represents a comprehensive solution for demanding industrial molding and stamping applications. This integrated product line combines reliable lock ejector mechanisms with high-performance HSS punch rods and precision cylindrical punches, delivering exceptional durability and accuracy in the most challenging production environments. Engineered for seamless operation and extended service life, these components ensure optimal performance across various manufacturing processes.

    Key Features

  • Advanced Lock Ejector Technology

    • Positive locking mechanism for secure operation

    • Quick release design for easy maintenance

    • Reliable ejection in high-cycle applications

  • Premium HSS Punch Rod Construction

    • High-speed steel material for superior wear resistance

    • Excellent toughness and edge retention properties

    • Multiple diameter options for different application needs

  • Precision Cylindrical Punch Design

    • Perfect concentricity and geometric accuracy

    • Optimized clearances for specific material requirements

    • Custom configurations available

  • Technical Specifications

  • Materials: HSS (M2/M35), Tool Steel

  • Hardness: HRC 60-64

  • Surface Finish: Ra 0.4μm maximum

  • Diameter Range: 3.0-25.0mm

  • Length Options: 50-200mm

  • Temperature Resistance: Up to 500°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
