mould punches

High performance stamping mould punches for round press tool die set

ms mold parts

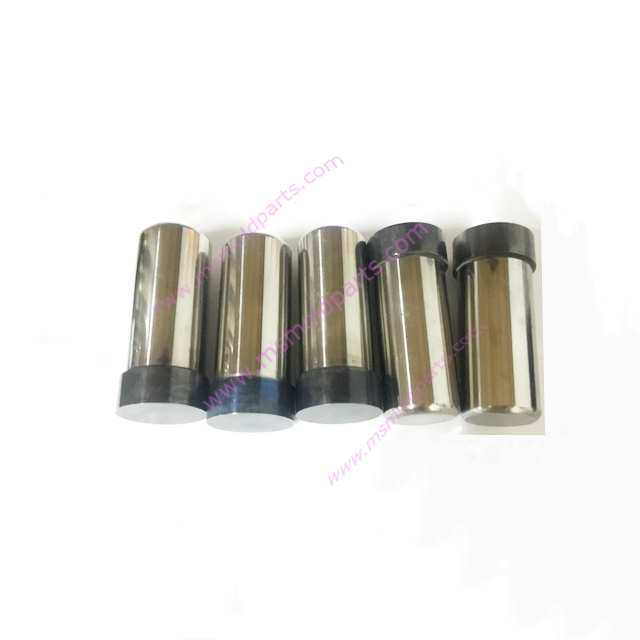

Self-lubricating cylindrical sleeves made from composite materials (e.g., polymer or bronze-PTFE), designed to provide smooth linear or rotational motion with minimal friction (coefficient 0.04-0.08). Ideal for high-load machinery, they reduce wear, eliminate external lubrication, and extend component life in molds, automation systems, and industrial equipment.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Low-Friction Cylindrical Bushings represent a breakthrough in precision motion control technology. Designed to complement precision high performance punches and mould punches, these advanced bushings deliver exceptional smoothness and durability in demanding industrial applications. Engineered with specialized low-friction materials and precision manufacturing processes, they significantly reduce energy consumption and maintenance requirements while extending equipment service life.

    Key Features

  • Advanced Low-Friction Technology

    • Special polymer composite or bronze-PTFE material construction

    • Ultra-low friction coefficient (0.04-0.08) for smooth operation

    • Self-lubricating properties eliminating external lubrication needs

  • Precision Manufacturing Excellence

    • Micro-ground surfaces achieving Ra 0.4μm finish

    • Tight dimensional tolerances within ±0.005mm

    • Perfect cylindrical geometry for optimal load distribution

  • Enhanced Durability Design

    • High load capacity up to 100 N/mm²

    • Excellent wear resistance for extended service life

    • Corrosion-resistant options for harsh environments

  • Technical Specifications

  • Materials: Polymer Composite, Bronze-PTFE, Steel-backed variants

  • Coefficient of Friction: 0.04-0.08

  • Load Capacity: 50-100 N/mm²

  • Temperature Range: -50°C to 200°C

  • Standard Sizes: 10-100mm inner diameter

  • PV Value: Up to 1.5 MPa·m/s

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
