Durable mold ejector pins for plastic injection molds, ensuring smooth ejection and high production efficiency.

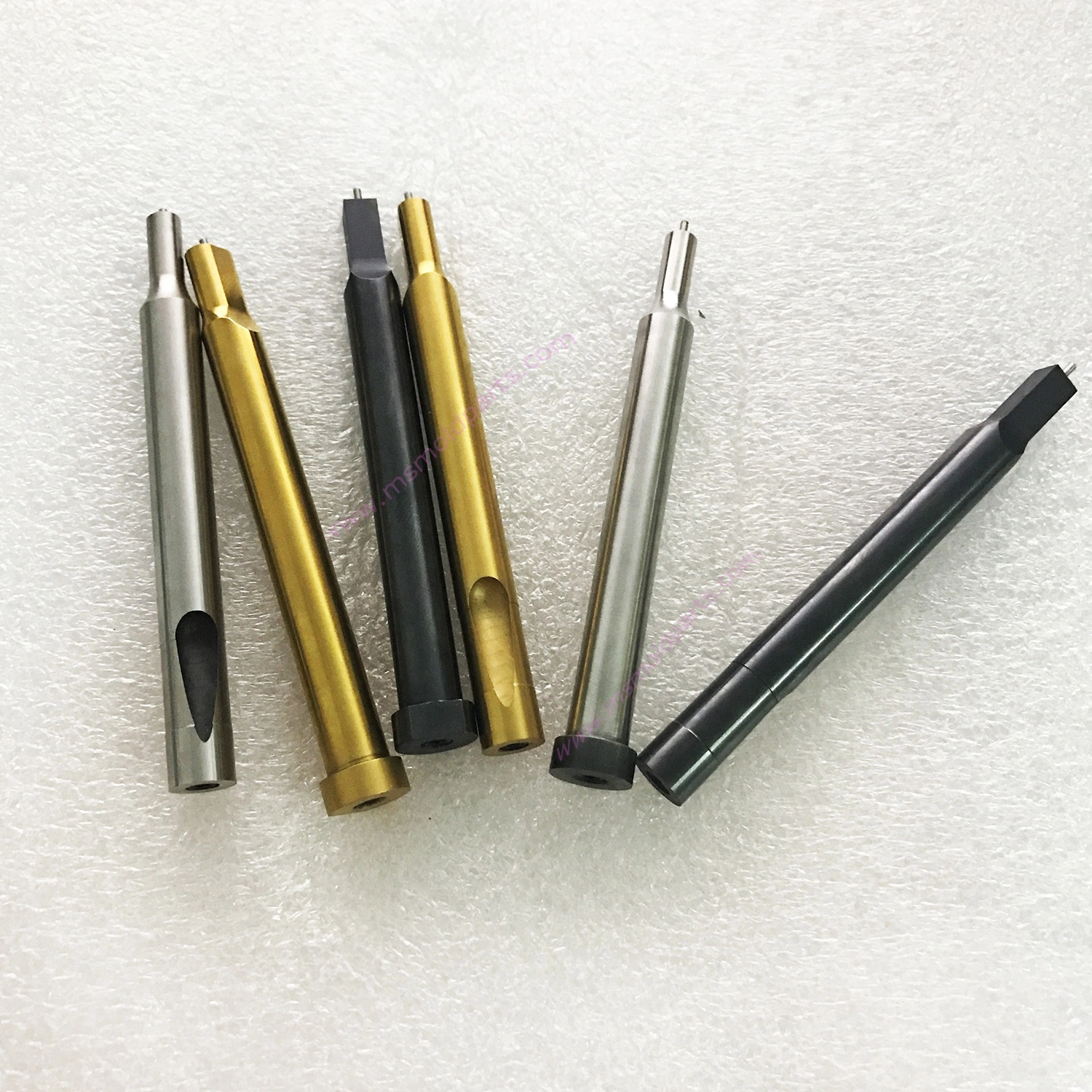

High Precision Dayton Ejector Punch, punch with ejector pin

MS-P-009

High Precision Dayton Ejector Punch with ejector pin delivers accuracy, durability, and smooth mold ejection for automotive, electronics, and CNC tooling.

Delivery

FOB

minimum order

1 piece

Supply Ability

10000.0piece / Month

Country of Origin

ShenZhen GuangZhou

Quantity:

USD0.10 - USD3.00 / piece

Contact Now

add to cart

Core Pins Injection Molding | Dayton Punch | Mold Ejector Pins

Ourcore pins for injection molding, Dayton punches, and mold ejector pins are precision-engineered tooling components designed to meet the demanding requirements of modern mold and stamping industries. These parts are manufactured with high-quality tool steel, HSS, or carbide, ensuring exceptional hardness, wear resistance, and dimensional accuracy for high-volume production.

🔹Core Pins for Injection Molding

Core pins are critical in plastic injection molds, used to form precise holes, slots, and cavities. They maintain excellent dimensional stability under high pressure and temperature, ensuring consistent molding quality. Custom sizes and coatings are available to meet specific project needs.

🔹Dayton Punch

Dayton punches are widely used in metal stamping dies for automotive, electronics, and hardware applications. With tight tolerances and superior durability, they deliver accurate punching performance and extended tool life, reducing downtime and maintenance costs.

🔹Mold Ejector Pins

Mold ejector pins ensure the smooth release of molded parts without damaging delicate surfaces. Available in standard and custom sizes, they offer high strength, corrosion resistance, and reliable performance, even in continuous production cycles.

🔹Key Features

Precision manufacturing for tight tolerance performance
Materials: Tool steel, HSS, carbide, with optional surface coatings (TiN, TiCN, DLC)
High wear resistance and extended service life
Standard and custom dimensions available
Optimized for injection molding and stamping applications
Product Name:MISUMI standard Shoulder Punches TiCN Coating
Standard:JIS, AISI, ASTM, GB, DIN, EN, MISUMI
Certification:ISO9001:2008
Shipment:Fedex.DHL.UPS.TNT
Delivery Time:7-8 working days
Payment:T.T Western Union , Paypal
Brand:MS
Shaping Mode:Punching Mold
Product:Vehicle Mould
Place of Origin:CN;GUA
Brand Name:MS Mold Parts
Model Number:MS-P-009

🔹Applications

Injection molds for plastics and medical components
Metal stamping dies for automotive and electronics
Industrial tooling requiring precision hole-making and ejection
Custom mold projects with special dimensions or coatings

🔹Benefits

Improved molding and stamping accuracy
Reduced downtime with reliable ejection performance
Extendedtool and mold lifespan
Enhancedproduction efficiency and cost-effectiveness

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Our Mainly Parts

Punch With Ejector Pin

Exhibition

Factory Equipment

OUR More Parts

Packing & Delivery

Certifications

Application Description

Core pins for injection molding, Dayton punches, and mold ejector pins are vital tooling components used across plastic molding, sheet metal stamping, and precision manufacturing industries. Each component serves a unique yet complementary role in ensuring accurate part production, efficient processing, and long tool life.

🔹 Core Pins for Injection Molding

Core pins are primarily used in plastic injection molds to create holes, slots, or intricate internal geometries in molded parts. They maintain high dimensional stability under extreme molding pressures and temperatures, ensuring precise component shaping. Core pins are essential in industries such as automotive, medical, consumer electronics, and packaging, where exact tolerances are critical for assembly and function.

🔹 Dayton Punches

Dayton punches are widely utilized in metal stamping and forming operations. These precision punches are designed to produce clean, accurate holes in sheet metal while withstanding high-speed, high-volume stamping environments. Common applications include automotive body panels, electronic enclosures, appliance parts, and hardware tools. Their consistent performance helps manufacturers reduce scrap rates and maintain high-quality output.

🔹 Mold Ejector Pins

Mold ejector pins are integral to the ejection system of plastic molds, responsible for pushing molded parts out of the cavity once cooling is complete. They ensure smooth and damage-free part release, preventing deformation or surface defects. Ejector pins are widely used in consumer goods, packaging, precision electronics housings, and industrial plastic components, improving cycle efficiency and product reliability.

🔹 Industry Benefits

Precision Manufacturing: Ensures accurate hole-making, shaping, and ejection for complex parts.
Production Efficiency: Enhances cycle time in molding and stamping processes.
Durability: Withstands repeated high-pressure operations while reducing downtime.
Versatility: Customizable for a wide range of industrial applications.

Together, core pins, Dayton punches, and mold ejector pins play an indispensable role in achieving high-volume, high-precision manufacturing across multiple industries.
