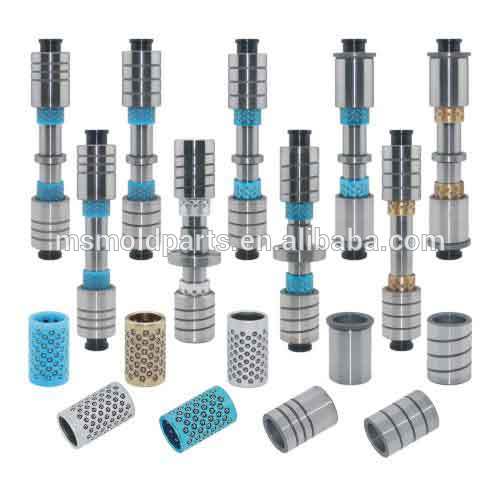

HIGH PRECISION guide elements and Guide pillars

ms mold parts
High precision guide elements and guide pillars are essential mold components designed to ensure accurate alignment, stable performance, and extended tool life in injection molds and stamping dies.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD11.00 / piece
Contact Now
add to cart
OurHIGH PRECISION guide elements and guide pillars are manufactured from premium steel with advanced heat treatment for superior durability and accuracy. Designed to deliver precise mold alignment and reduce wear, they are essential components for high-performance molds and dies.

Key Features

  • Precision Guide Pillars – Provide accurate alignment and stability, reducing production errors.
  • Durable Pillar Guide Design – Enhanced surface treatment ensures wear resistance and long service life.
  • Danly-Compatible – Fully compatible with Danly pins and bushings, meeting global mold standards.
  • High-Quality Materials – Made from alloy steel or tool steel with excellent hardness and toughness.
  • Versatile Applications – Suitable for injection molds, stamping dies, and precision tooling industries.

Applications

  • Widely used in injection molding for precise cavity alignment.
  • Essential in metal stamping dies to ensure smooth, accurate operation.
  • Applied in precision molds and custom tooling requiring long service life and stable performance.
  • Perfect for manufacturers seeking interchangeable solutions with global standard components like Danly.
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Our Mainly Parts

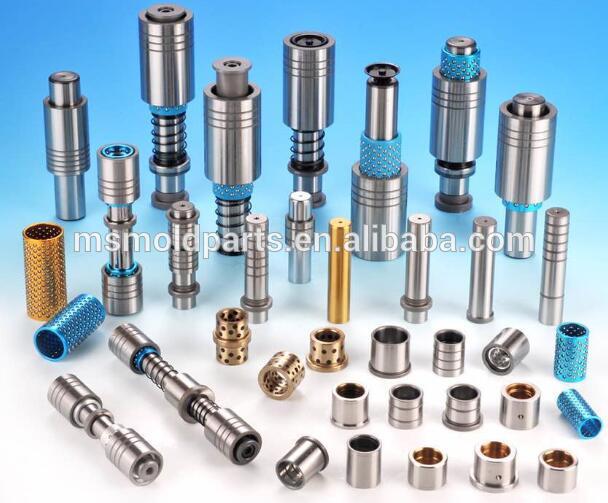

HIGH PRECISION Guide Elements
