guide bushing die sets

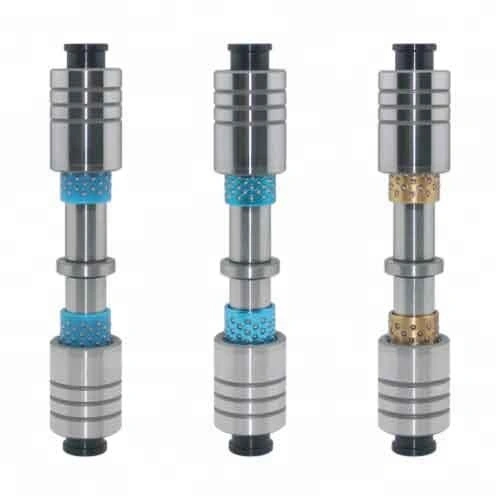

High precision holder guide post guide post and guide bush for die set

ms mold parts
High precision holder guide post and guide bush for die set ensure accurate alignment, stability, and durability in stamping and injection mold applications. Designed for long service life and consistent precision.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD18.00 / piece
Contact Now
add to cart
OurHigh precision holder guide post, guide pillar and guide bush, and guide bushing die sets are designed to deliver exceptional accuracy, stability, and durability in mold and die applications. Manufactured with premium materials and strict standards, they guarantee smooth operation and long service life.

Features

  •  Precision machining for excellent alignment and reduced wear

  • High-quality materials ensuring strength and durability

  • Compatible with various mold and die set standards

  • Smooth surface treatment for low friction and reliable performance

Applications

  • Used in stamping dies for accurate positioning and repeatability

  • Essential in injection mold assemblies for stable operation

  • Suitable for precision die sets in automotive, electronics, and industrial tooling

  • Helps extend the lifespan of molds by minimizing misalignment and wear


Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
