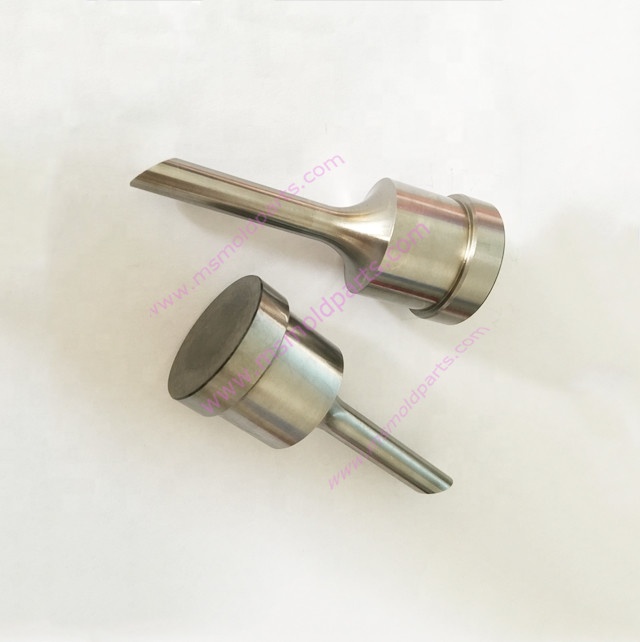

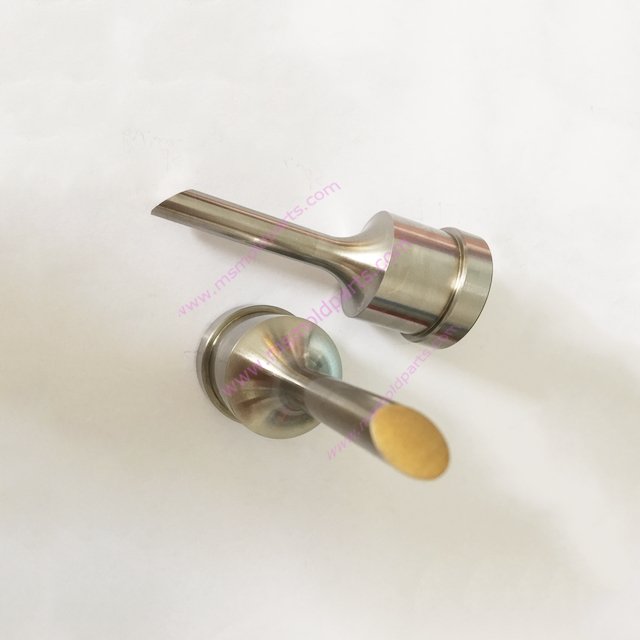

High Precision HSS Special Punch with 45 Degree Cutting edge for stamping Mold

MS-Punch
High Precision HSS Special Punch featuring a 45 degree cutting edge, optimized for stamping mold applications. Made from high-speed steel (HSS), it ensures exceptional durability, sharpness, and accuracy for demanding industrial stamping operations.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD2.00 / piece
Contact Now
add to cart
Our High Precision HSS Special Punch is engineered with a unique 45 Degree Cutting Edge to excel in punching mold operations. Crafted from high-speed steel (HSS), this punch combines superior hardness, wear resistance, and sharpness for demanding stamping applications. As custom made punches, they are tailored to specific dimensions, angles, and material requirements, ensuring optimal performance in precision cutting, piercing, and blanking processes. Ideal for industries requiring high accuracy and extended tool life.

Key Features:

  • 45 Degree Cutting Edge: The angled design reduces cutting force, minimizes burr formation, and enhances material penetration efficiency.
  • High-Speed Steel (HSS) Material: Offers exceptional toughness and heat resistance (up to 600°C), maintaining sharpness in high-volume production.
  • Custom Made Punches: Fully customizable in dimensions, edge geometry, and surface treatments (e.g., TiN coating) to meet unique punching mold needs.
  • Precision Manufacturing: Tight tolerances (±0.01mm) ensure consistent performance and compatibility with stamping dies and molds.
  • Surface Options: Optional coatings (e.g., TiN, CrN) for added wear resistance and corrosion protection.

Applications:

  • Stamping molds for automotive components (e.g., brackets, connectors)
  • Electronics and appliance metal part piercing and blanking
  • Precision cutting of thin metals, plastics, and composites
  • High-volume production lines with abrasive materials
  • Custom tooling for specialized industrial processes
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
