jector punches

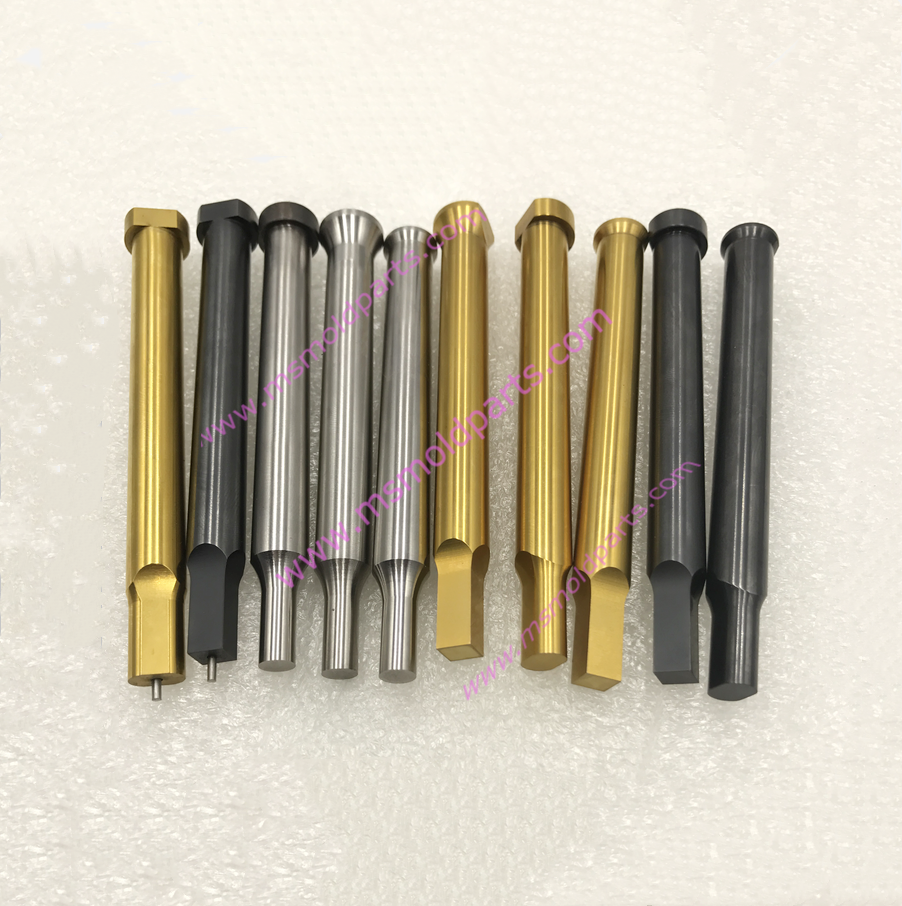

High quality Jector Punches TiCN Coating standard mold parts

ms mold parts
Hardened steel punches (e.g., HSS, tool steel) with a Titanium Carbonitride (TiCN) coating (3-5μm), providing extreme surface hardness (HV 3000-3500), low friction, and enhanced wear resistance. Ideal for high-volume stamping or molding, they significantly extend tool life and reduce adhesion in aggressive materials.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Ejector Punches and Standardized Mold Components represent the perfect fusion of precision engineering and advanced surface technology. This comprehensive product line integrates high-performance ejector punches with standardized mold components, enhanced by TiCN coating technology to deliver exceptional durability and reliability in demanding manufacturing environments. Engineered for seamless compatibility and extended service life, these components ensure optimal performance across various industrial applications.

    Key Features

  • Advanced TiCN Coating Technology

    • Titanium Carbonitride coating with 3-5μm thickness

    • Extreme surface hardness up to HV 3500

    • 50% reduction in friction coefficient

    • Superior anti-adhesion properties

  • Standardized Component Design

    • Full compliance with international mold standards

    • Perfect interchangeability with existing systems

    • Consistent dimensional accuracy across all components

  • Precision Manufacturing Excellence

    • CNC grinding technology ensuring ±0.003mm tolerances

    • Micro-finished surfaces achieving Ra 0.2μm

    • Optimal geometric accuracy for perfect fit

  • Technical Specifications

  • Base Materials: HSS, Tool Steel, Powder Metallurgy Steel

  • Coating: TiCN (3-5μm)

  • Hardness: HRC 60-65 (substrate), HV 3000-3500 (coating)

  • Surface Finish: Ra 0.2μm maximum

  • Standard Sizes: 2.0-25.0mm diameters

  • Temperature Resistance: Up to 400°C continuous

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
