cylindrical head die components

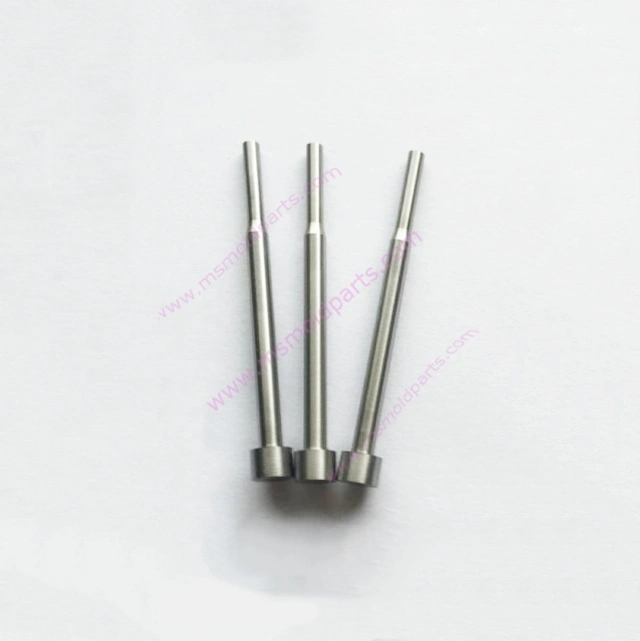

High standard punches pin with cylindrical head Die and tools plastic injection mold parts

ms mold parts
Precision standard punch pins and cylindrical head die components designed for plastic injection molds and stamping systems. Made of high-strength materials (e.g., HSS, tool steel), they feature high hardness (HRC 58-64), tight tolerances (±0.003mm), and ultra-smooth surfaces (Ra ≤0.2μm) for durability and accuracy in industrial applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Precision Standard Punch Pins represent the foundation of reliable and accurate industrial tooling systems. This comprehensive product line integrates meticulously engineered cylindrical head die components with complete plastic injection tooling solutions, delivering exceptional performance across various manufacturing applications. Designed for seamless interoperability and extended service life, these components ensure optimal precision in both stamping and injection molding operations.

    Key Features

  • Ultra-Precision Manufacturing

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Diameter tolerance control within ±0.003mm

    • Perfect concentricity and geometric accuracy

  • Cylindrical Head Design Excellence

    • Optimized head geometry for uniform stress distribution

    • Enhanced impact resistance and load capacity

    • Perfect sealing characteristics in mold applications

  • Complete Tooling Integration

    • Full compatibility with standard mold bases

    • Custom configurations for specific application requirements

    • Streamlined maintenance and replacement procedures

    • Technical Specifications

    • Materials: High-Speed Steel, Tool Steel, Bearing Steel

    • Hardness: HRC 58-64 (depending on application)

    • Surface Finish: Ra 0.2μm maximum

    • Standard Diameters: 1.0-20.0mm

    • Length Range: 40-200mm

    • Head Configurations: Multiple standard and custom options

    • Temperature Resistance: -30°C to 400°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Our Mainly Parts
Exhibition
Factory Equipment
OUR More Parts
Packing & Delivery
