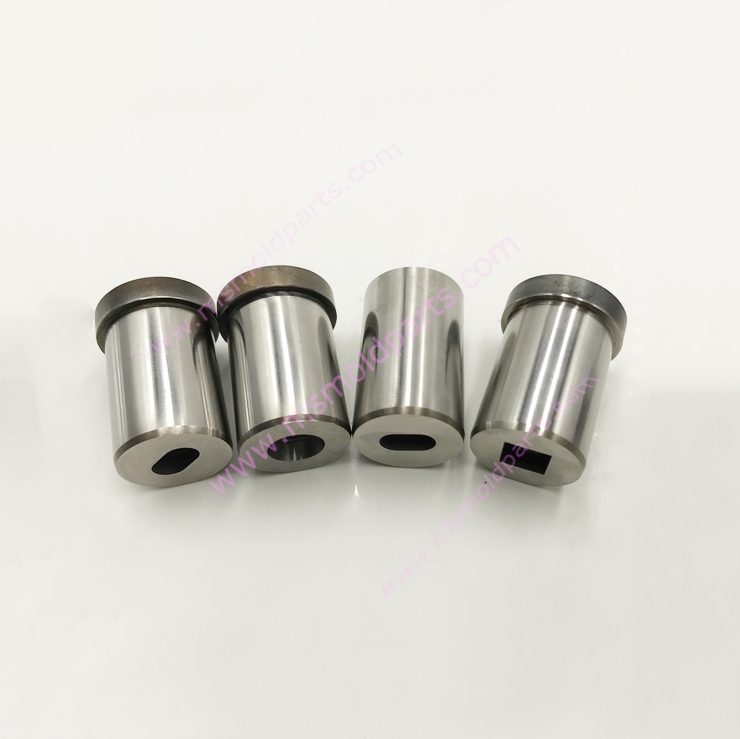

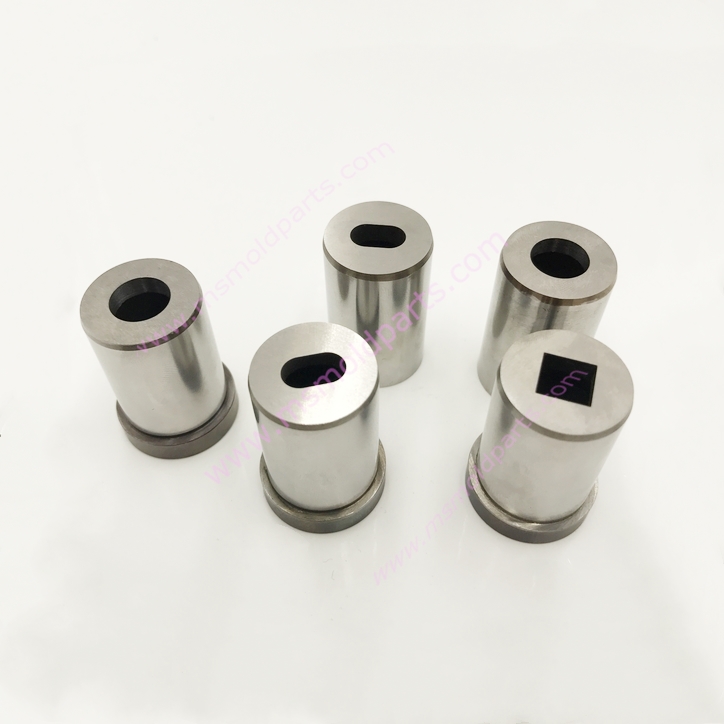

HSS die bush square rectangular round elongated moulding ISO 8977 die with head

ms mold parts
High-performance HSS die bush in square rectangular round and elongated moulding designs, compliant with ISO 8977 die with head standards. Ideal for precision molding, stamping, and industrial die applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD1.00 - USD25.00 / piece
Contact Now
add to cart
Our HSS die bush product line offers versatile solutions in square, rectangular, round, and elongated moulding configurations, fully compliant with ISO 8977 die with head standards. As critical die mold components, these dies are crafted from high-speed steel (HSS) for exceptional wear resistance, hardness, and longevity. We specialize in custom elongated dies tailored to unique project requirements, ensuring seamless integration into stamping, molding, and industrial tooling systems.

Key Features:

  • ISO 8977 Compliance: Adheres to ISO 8977 international standards for dimensional accuracy and performance reliability.
  • Multiple Shapes: Available in square, rectangular, round, and elongated moulding designs to suit diverse applications.
  • HSS Material: High-speed steel construction provides superior toughness and heat resistance (up to 600°C).
  • Custom Elongated Dies: Tailored dimensions, head designs, and surface treatments (e.g., TiN coating) for specialized needs.
  • Precision Engineering: Manufactured to tight tolerances (±0.01mm) for consistent results in high-pressure environments.

Applications:

  • Stamping dies for automotive and aerospace components
  • Injection molds for plastic and metal parts
  • Precision blanking and piercing operations
  • Electronics manufacturing (e.g., connector molds)
  • Custom industrial tooling and prototyping
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
