tin treatment , ISO 8020 gold plated punch , conical mold | Donguan MS Mold Parts Co.,Ltd

ISO 8020 gold plated punch conical head punches TiN coating

ms mold parts
ISO 8020 gold plated punch with conical head punches TiN coating. Combines corrosion-resistant gold plating and wear-resistant TiN coating for precision punching applications. Ideal for electronics, aerospace, and high-corrosion environments.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD7.50 / piece
Contact Now
add to cart

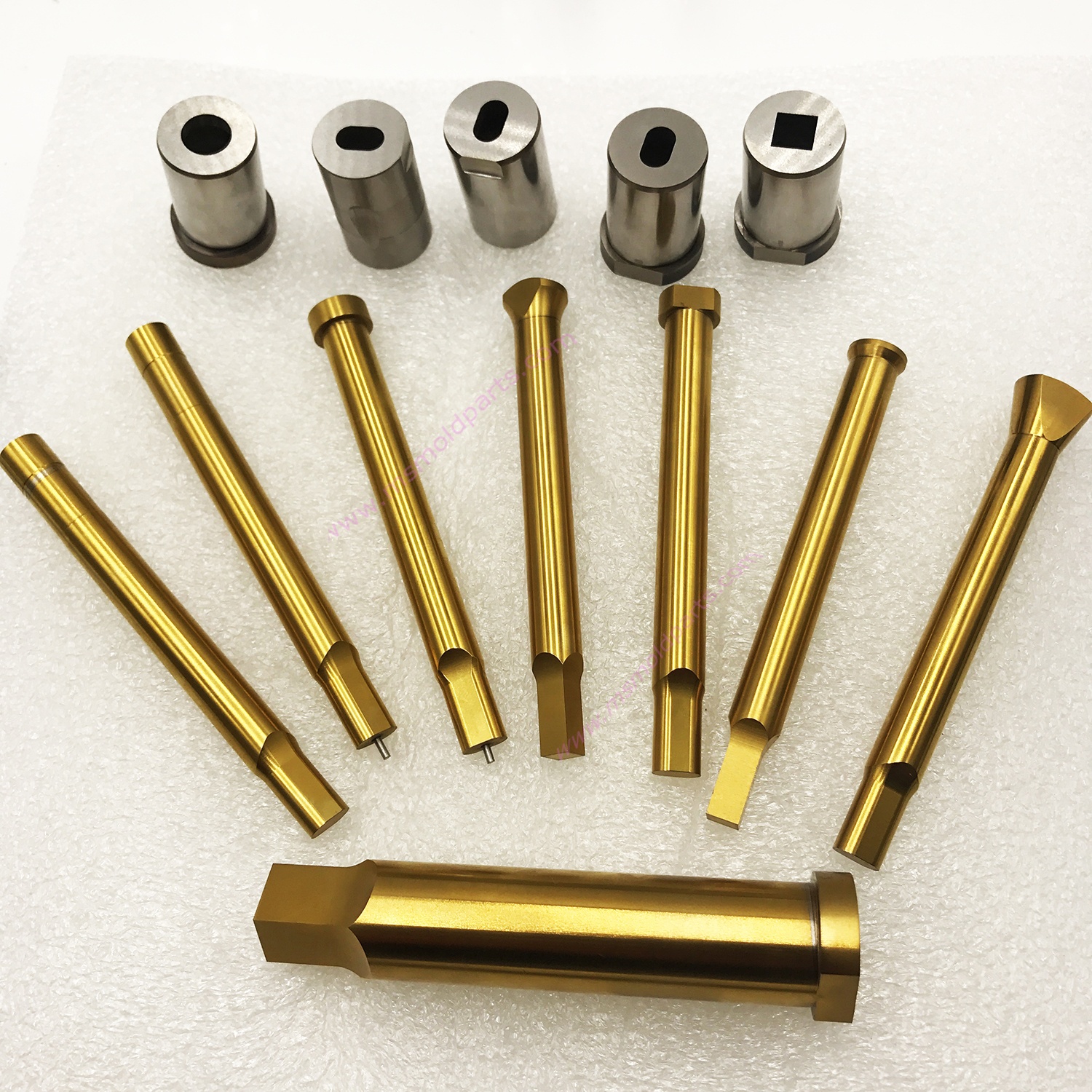

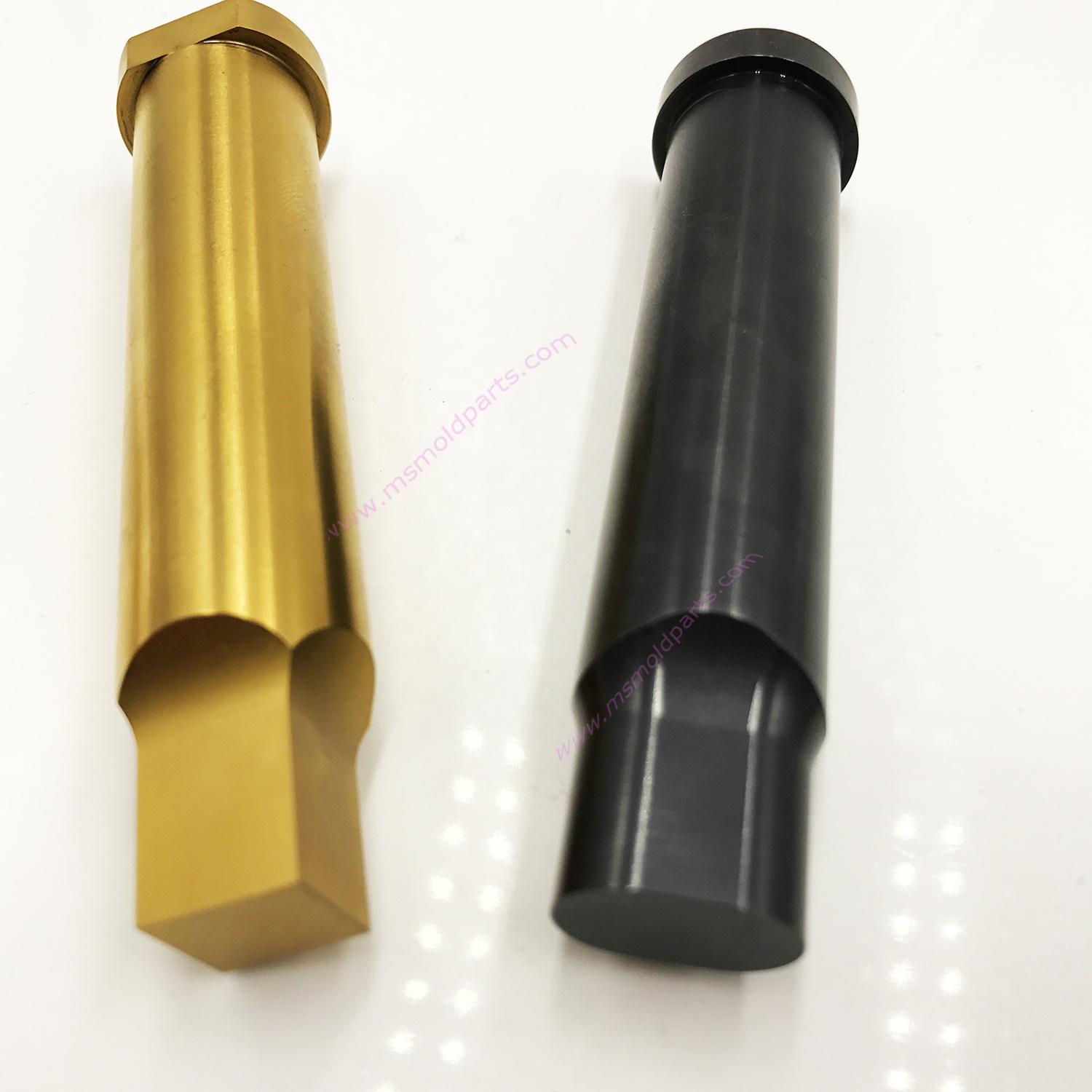

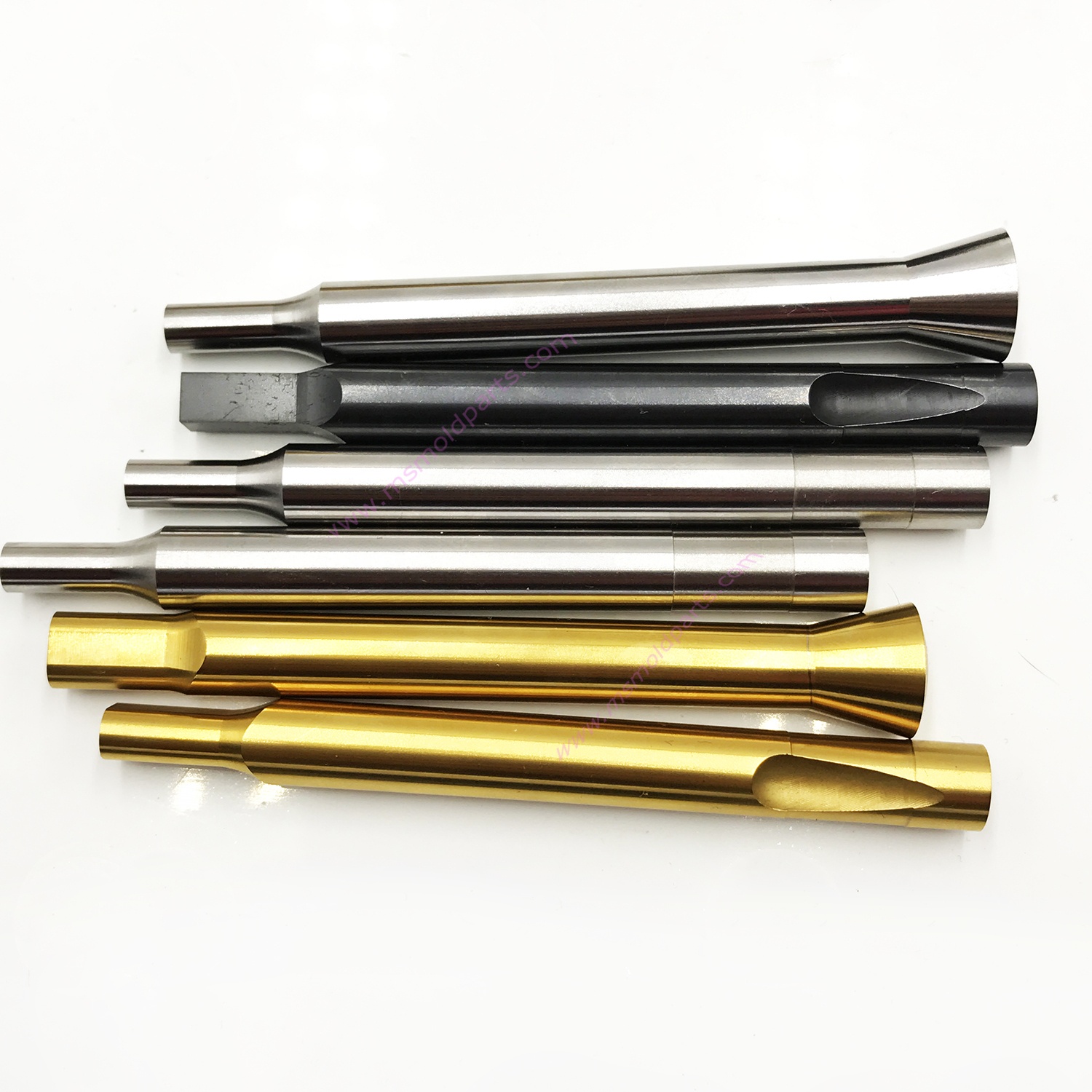

Our ISO 8020 gold plated punch features a precision conical head design enhanced with TiN coating, making it an ideal tool for conical mold applications. Compliant with ISO 8020 standards, this punch combines the corrosion resistance of gold plating with the extreme wear resistance of TiN treatment, ensuring longevity and reliability in demanding industrial environments. The conical head design facilitates easy alignment and reduces stress during punching operations, while the dual coating protection extends tool life in high-corrosion or high-friction scenarios.

Key Features:

  • ISO 8020 Compliance: Meets international standards for dimensional accuracy and performance, ensuring seamless integration with global tooling systems.
  • Gold Plating + TiN Coating: The gold plated layer provides exceptional corrosion resistance, while the TiN coating (Titanium Nitride) offers superior hardness (2,300+ HV) and wear resistance.
  • Conical Head Design: The conical head punches enable smooth penetration and reduce material deformation, ideal for conical mold structures.
  • Premium Materials: Made from high-grade tool steel (e.g., HSS or carbide) with heat treatment for core toughness.
  • Precision Engineering: Manufactured to tight tolerances (±0.01mm) for consistent performance in precision punching and molding.

Applications:

  • Electronics manufacturing (e.g., PCB punching, connector molds)
  • Aerospace components requiring corrosion-resistant tools
  • Medical device molding with strict hygiene standards
  • High-precision conical mold applications in automotive and consumer goods
  • Environments exposed to moisture, chemicals, or abrasive materials
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
