Product Features

• ISO Standard Compliance
  Manufactured according to ISO 8020 standards for high precision and global interchangeability.
• Durable Tin Coating
  Surface treated with tin coating to reduce friction, enhance wear resistance, and extend service life.
• Accurate Guide Pilot
  Functions as a reliable guide pilot for precise positioning in molds.
• Secure Press Fit Pin Design
  Works as a press fit pin, ensuring stable installation and consistent performance under high-volume production.
• High Quality Material
  Produced from premium steel with advanced machining for strength and durability.

Product Applications

• Widely used in stamping diesandinjection molds requiring precise guidance.
• Ideal for automotive, electronics, and industrial tooling where stability and accuracy are critical.
• Suitable for mold manufacturers needing guide pilotsandpress fit pins with long service life.
• Applied in custom mold assemblies for enhanced efficiency and reduced maintenance.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Our Mainly Parts

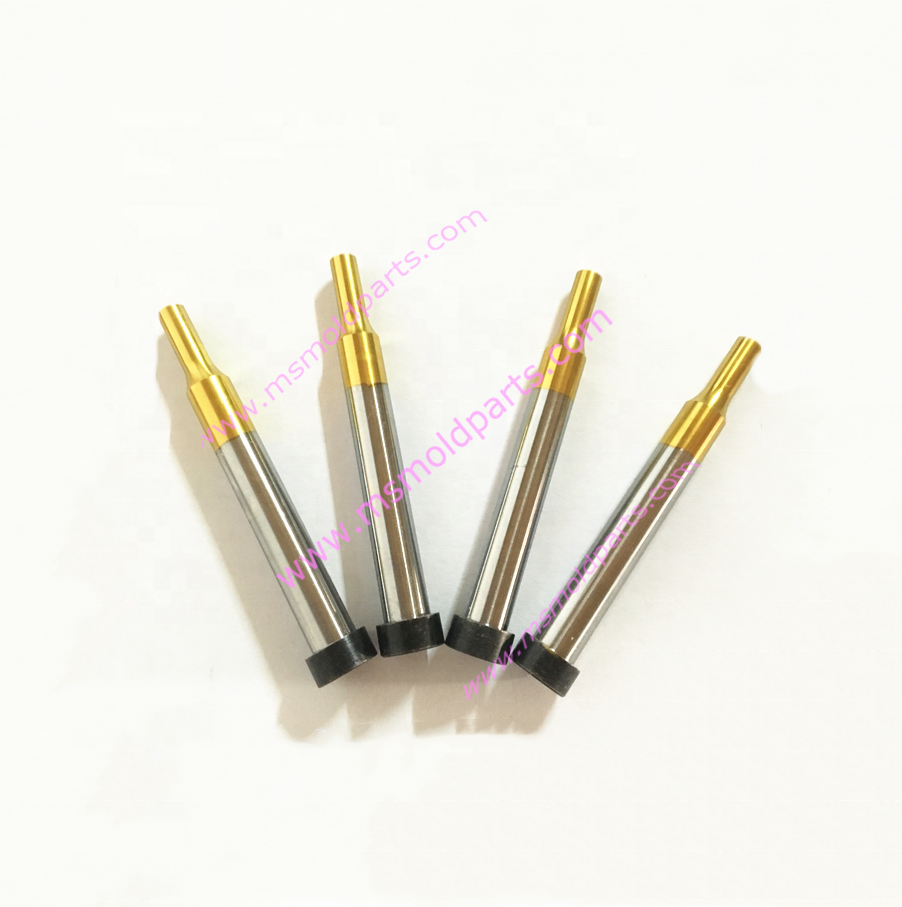

ISO 8020 Punch
