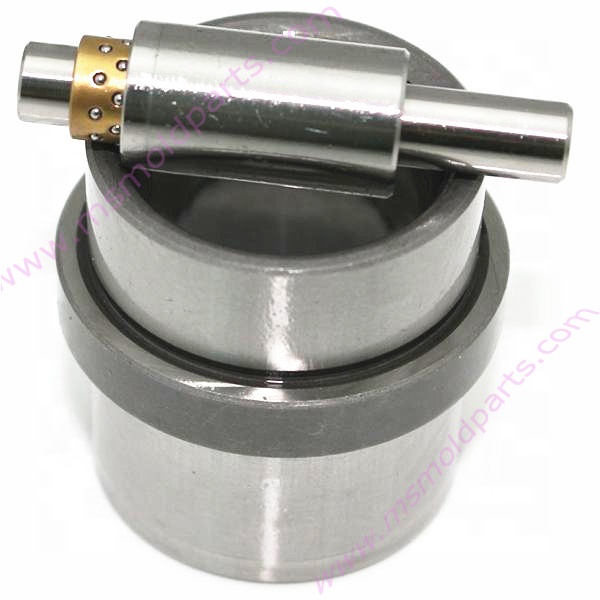

miniature ball bearing guide set for automation parts shoulder guide bushings

ms mold parts
A complete assembly typically including matched guide posts (pillars) and bushings, designed to ensure precise alignment and smooth linear motion in molds, machinery, or automation systems. Reduces wear, prevents misalignment, and extends equipment lifespan.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Guide Set represents a comprehensive precision alignment system engineered for demanding industrial applications. This complete package integrates precision shoulder guide bushings with advanced low-friction miniature ball bearing guides, delivering unmatched accuracy, smooth operation, and long-term reliability in various mechanical systems and automation equipment.

    Key Features

  • Complete System Integration

    • Perfectly matched shoulder guide bushings and ball bearing guides

    • Pre-aligned components for immediate installation

    • Optimized compatibility between all set elements

  • Precision Engineering

    • Micro-ground surfaces achieving Ra 0.4μm finish

    • Tight tolerance control within ±0.005mm

    • Superior geometric accuracy across all components

  • Advanced Material Selection

    • High-carbon chromium steel for shoulder bushings

    • Precision miniature bearings with low-friction coatings

    • Corrosion-resistant treatments available

  • Technical Specifications

  • Materials: SUJ2 Steel, Bearing Steel, Engineering Alloys

  • Hardness: HRC 58-62 (bushing components)

  • Surface Finish: Ra 0.4μm maximum

  • Standard Sizes: 6-50mm guide diameters

  • Load Capacity: Customized to application requirements

  • Temperature Range: -30°C to 120°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
