Machinery Alignment Steel Posts

Misumi metal guide post, shoulder steel post

ms mold parts
A cylindrical metal rod, typically made of hardened or structural steel, used as a core alignment component in machinery, molds, or construction. Provides structural support, ensures precise positioning, and maintains stability under load in industrial applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Guide Post represents the foundation of precision alignment systems in industrial applications. This comprehensive product line includes specialized precision shoulder steel posts for exact axial positioning and robust machinery alignment steel posts for heavy-duty applications. Engineered to deliver exceptional accuracy, durability, and reliability, these guide posts ensure perfect alignment and smooth operation in the most demanding manufacturing environments.

    Key Features

  • Precision Engineering Excellence

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Diameter tolerance controlled within ±0.003mm

    • Straightness maintained at 0.005mm/100mm maximum

  • Enhanced Material Performance

    • Premium SUJ2 bearing steel construction

    • Through-hardened to HRC 58-62 for maximum wear resistance

    • Superior dimensional stability under extreme conditions

  • Optimized Design Versatility

    • Shoulder designs for precise axial positioning

    • Multiple configuration options for different applications

    • Perfect compatibility with standard guide bushings

  • Technical Specifications

  • Material: SUJ2 Bearing Steel (AISI 52100 equivalent)

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.2μm maximum

  • Standard Diameters: 10-80mm

  • Length Range: 100-500mm

  • Straightness: 0.005mm/100mm maximum

  • Temperature Resistance: -30°C to 150°C

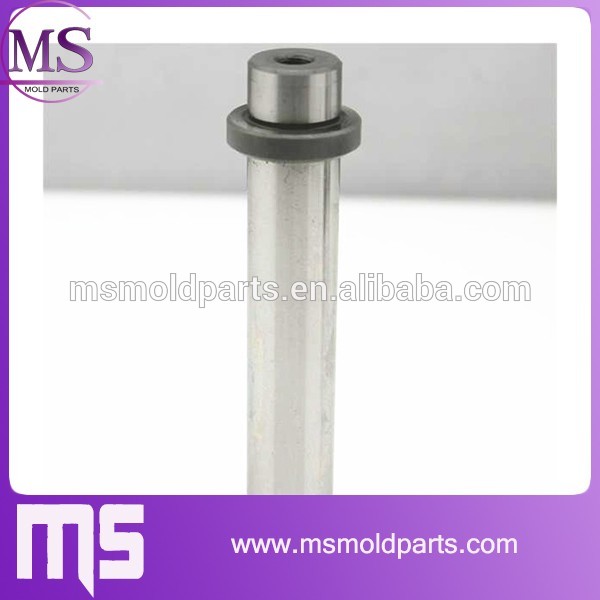

Misumi metal guide post, shoulder steel post

metal guide post, shoulder steel post.jpg

Specifications available in:

ISO 8020, DIN 9861, DIN 9844, DIN 9810 ,customized

Specifications available in:

Material

Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect

Standard

Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect

Size

Depend on your drawings or products standard

Place of origin

Dongguan, Guangdong, China

Heat treatment

Available

Surface Work

TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available

Tolerance

+ - 0.002mm

Polishness

Close to Ra0.2

Hardness

Depends on material(HRC60~94)

Delivery time

3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.

Main Products

Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Mold Parts PUNCH punzon Picture

Shipping &Payment

Payment:

1.T/T.Westen union.MoneyGram.Alibaba escrow are accepted.

2.30% deposit should be received before production, and balance to be paid before delivery or 100% Payment in advance.

paste-pic-dp_uuid_9j00c

Shipping:

1. Delivery depends on the quantity of order, normally, 10-25 days after receiving the deposit.

2. Delivery way: By Express, by air, by sea or other ways you want.

paste-pic-dp_uuid_8st2x

Company introduce

Donguan MS Mold Parts Co.,Ltd specialize in making all kinds of press die components, plastic mold parts and different machine parts according to the ISO, JIS, DIN AND AISI etc standards.

At the same time, we can make according to the standards of the following:
HASCO,STRACK,FIBRO,CUMSA,DAYTON,LANE,
DME,JECTO,MDL,MOELLER,RABOURDIN,MEUSBURGER,
PEDROTTI,MISUMI and SO ON.
specilized in producing Automotive Parts,Normalien, Punches,dies,Guide posts,Guide Bushes,Guide Pins,Ejector Pins and sleeves,Die Buttons,Bushes,Ejector Punches,guide bush, plugs, Drill Rods,Ball Cages,Springs,Blocksets

with different material,such as HSS,SKH51,SKD11, HSS, ASP23,SUJ2, D2,M2,Tungsten CARBIDE ETC

ALSO we have the ability to make a wide range of non-standard or customized mold parts and machine parts to meet the growing demands for various industries who are aiming to develop new molds for new products which requires made-to-order service all over the world. We are able to make parts exactly according to customers’ drawings or samples.

With the company policy: quality innovation, mutual benefit, reliability and integrity,have a good after-service, Our markets are in Germany, Italy, Spain, Portugal, Hungary, Poland, Brazil, Peru, Argentina, U.S.A, Mexico, Malaysia, Indonesia, Philippine, Thailand, Australia, Japan etc, we are always ready to offer our products,services and promote the innovation in all kinds of mold industries!


Our Slogan:Strive for Perfection And Win by Quality!!

If you have any problem, please feel free to contact us, we are glad to help.
