precision shoulder guide bushes

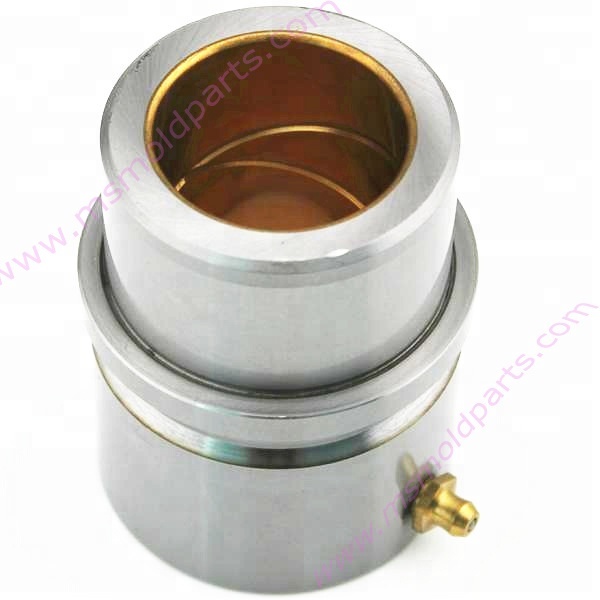

Misumi shoulder guide bush cooper alloy bushing with shoulder guide bushes

ms mold parts
High-accuracy cylindrical sleeves with an integrated shoulder, typically made of hardened steel or copper alloy. Designed for exact axial positioning in molds and machinery, they ensure alignment stability, reduce wear, and provide self-lubricating properties in demanding industrial applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Precision Shoulder Guide Bushes represent the pinnacle of accuracy and reliability in industrial guidance systems. Designed to integrate seamlessly with low friction shoulder bush variants and hardened guide bushings, these components deliver exceptional performance where precise alignment, minimal friction, and long-term durability are paramount.

    Key Features

  • Ultra-Precision Manufacturing

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Tight tolerance control within ±0.003mm

    • Perfect concentricity between inner and outer diameters

  • Enhanced Material Performance

    • Premium bearing steel (SUJ2) or copper alloy options

    • Special heat treatment achieving HRC 58-62 (steel versions)

    • Superior wear resistance and dimensional stability

  • Optimized Shoulder Design

    • Integrated shoulder for accurate axial positioning

    • Prevents bushing sinking under heavy loads

    • Simplified installation and maintenance

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
