High quality mold bushing with precision guide pillar and bush design, compatible with bush misumi standards for reliable mold alignment and durability.

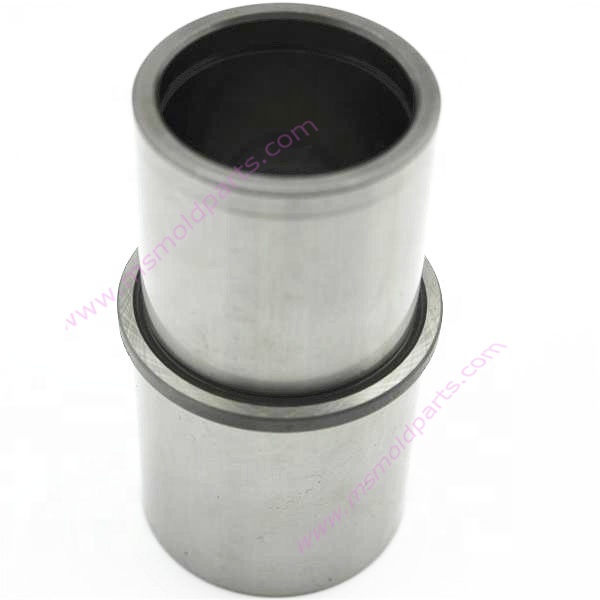

Misumi shoulder guide bush Standard Guide Pillar and Bush of Mold Part

ms mold parts

The Misumi shoulder guide bush is a standard mold component designed to work with guide pillars, ensuring smooth movement, precise alignment, and long-lasting durability in stamping and injection molds.

Delivery

FOB

minimum order

1 piece

Supply Ability

10000.0piece / Month

Country of Origin

ShenZhen GuangZhou

Quantity:

USD0.10 - USD9.00 / piece

Contact Now

add to cart

TheMisumi shoulder guide bush is a precision mold component designed to ensure accurate alignment and stable operation in injection molds and stamping tools. Manufactured with high-quality materials, it offers excellent wear resistance, smooth guiding, and long service life.

Mold Bushing: Engineered for reliable positioning and smooth sliding performance in high-speed and high-precision molds.
Guide Pillar and Bush: Designed to work perfectly with guide posts, ensuring mold stability and reducing wear during repetitive operations.
Bush Misumi Standard: Compatible with Misumi specifications, making it suitable for replacement, maintenance, or custom mold assembly.

Applications:
Widely used in injection molding, stamping dies, and precision tooling, the Misumi shoulder guide bush helps manufacturers improve efficiency, accuracy, and durability of mold structures.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
