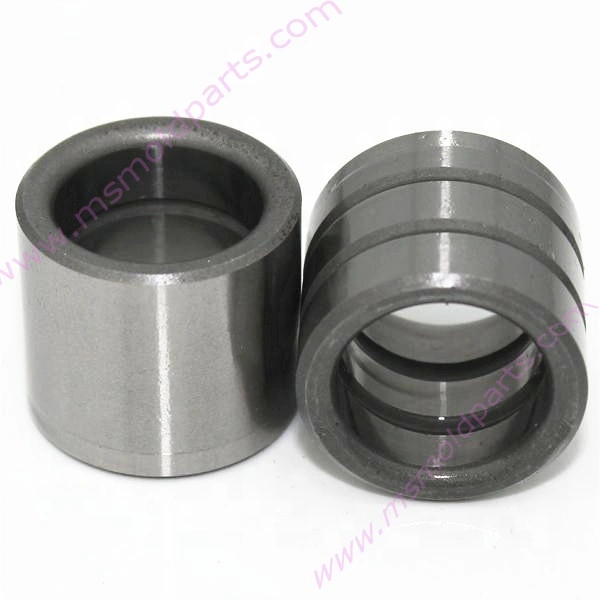

MISUMI Standard LOCTITE Adhesive Straight Type guide bush

Overview
MISUMI Standard Guide Bushings form a series of high-precision, cost-effective linear motion guidance components. This comprehensive range includes standard Straight Type Guide Bushings and specialized variants with Pre-Applied LOCTITE Adhesive, designed to meet the demanding requirements for guidance accuracy, easy installation, and long-term operational stability in various industrial automation equipment and precision machinery.

Series & Features

1. Straight Type Guide Bushing

   • Simple Structure, High Rigidity: Features a classic cylindrical design that provides uniform wall thickness and excellent load-bearing capacity, ensuring stable and precise guidance.

2. Guide Bushing with Pre-Applied LOCTITE Adhesive

   • Secure Fixation, Prevents Loosening: Comes with LOCTITE adhesive pre-applied to the outer circumference, simplifying the press-fit process and effectively preventing loosening caused by vibration or impact during operation, thereby enhancing connection reliability.

3. MISUMI Standard Advantages

   • High Precision & Interchangeability: Manufactured with micron-level accuracy, ensuring smooth movement and perfect compatibility with standard shafts and competitor products.

   • Durability & Wear Resistance: Made from high-carbon chromium bearing steel (e.g., SUJ2) and subjected to appropriate heat treatment, offering high hardness and excellent wear resistance for an extended service life.

   • Rich Variations & Easy Selection: A wide range of standard types and sizes are available from stock, supporting quick delivery. Comprehensive specifications and free 2D/3D CAD data are available for easy integration into your designs.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Our Mainly Parts

Exhibition

Factory Equipment

OUR More Parts

Packing & Delivery

Certifications

• Industrial Automation: Linear guides in XYZ stages, pick-and-place units.

• Precision Machinery: Guidance mechanisms in measuring instruments, printing equipment.

• Automotive Manufacturing: Jigs and fixtures, assembly automation equipment.

• General Industrial Equipment: Applications requiring precise sliding or rotational guidance.

Why Choose MISUMI Standard Guide Bushings?
By choosing our standard guide bushings, you gain access to a reliable, high-quality component solution that streamlines design and procurement. The availability of different types, including the convenient pre-applied adhesive version, allows for optimal selection based on your specific application needs, ensuring both performance and efficiency.
