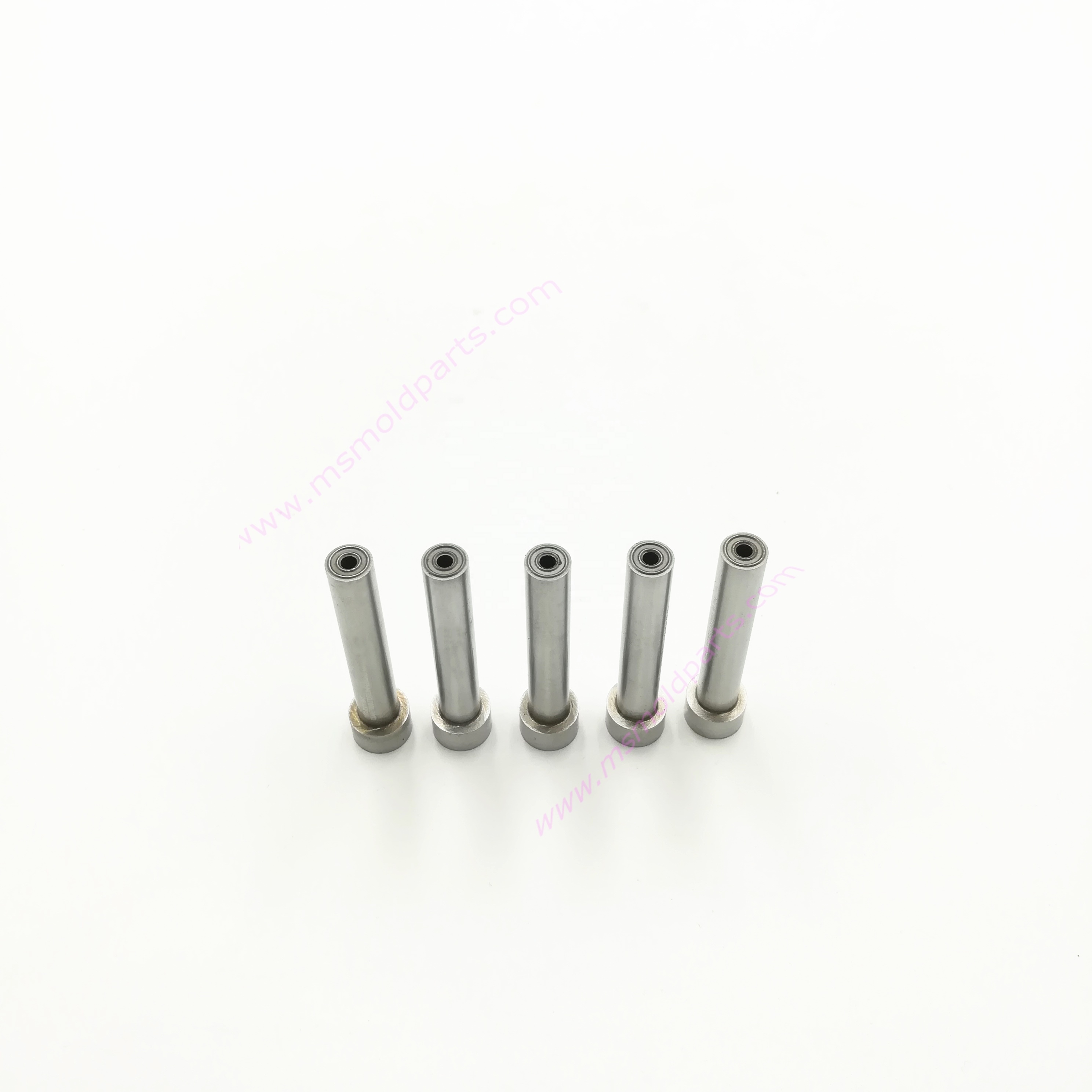

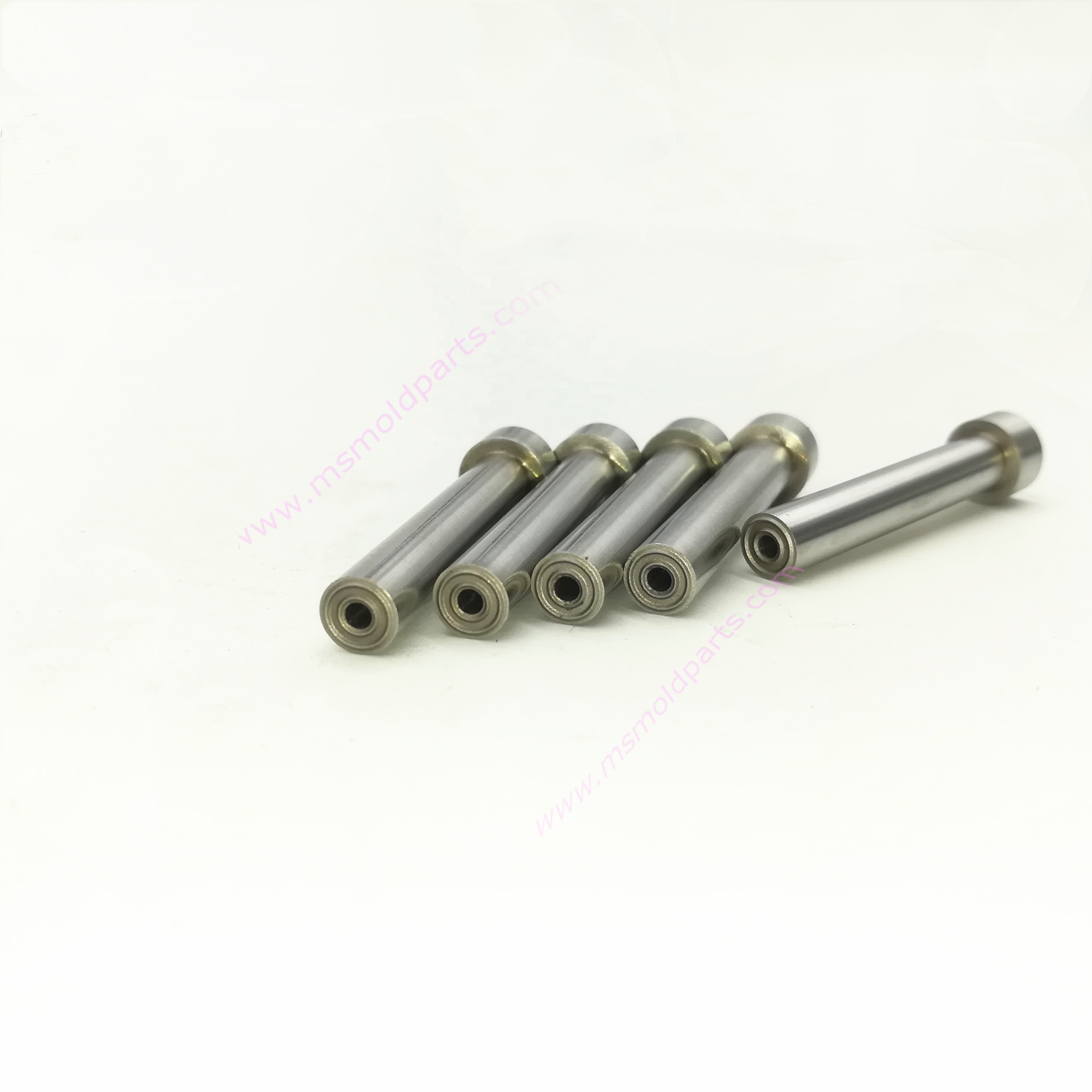

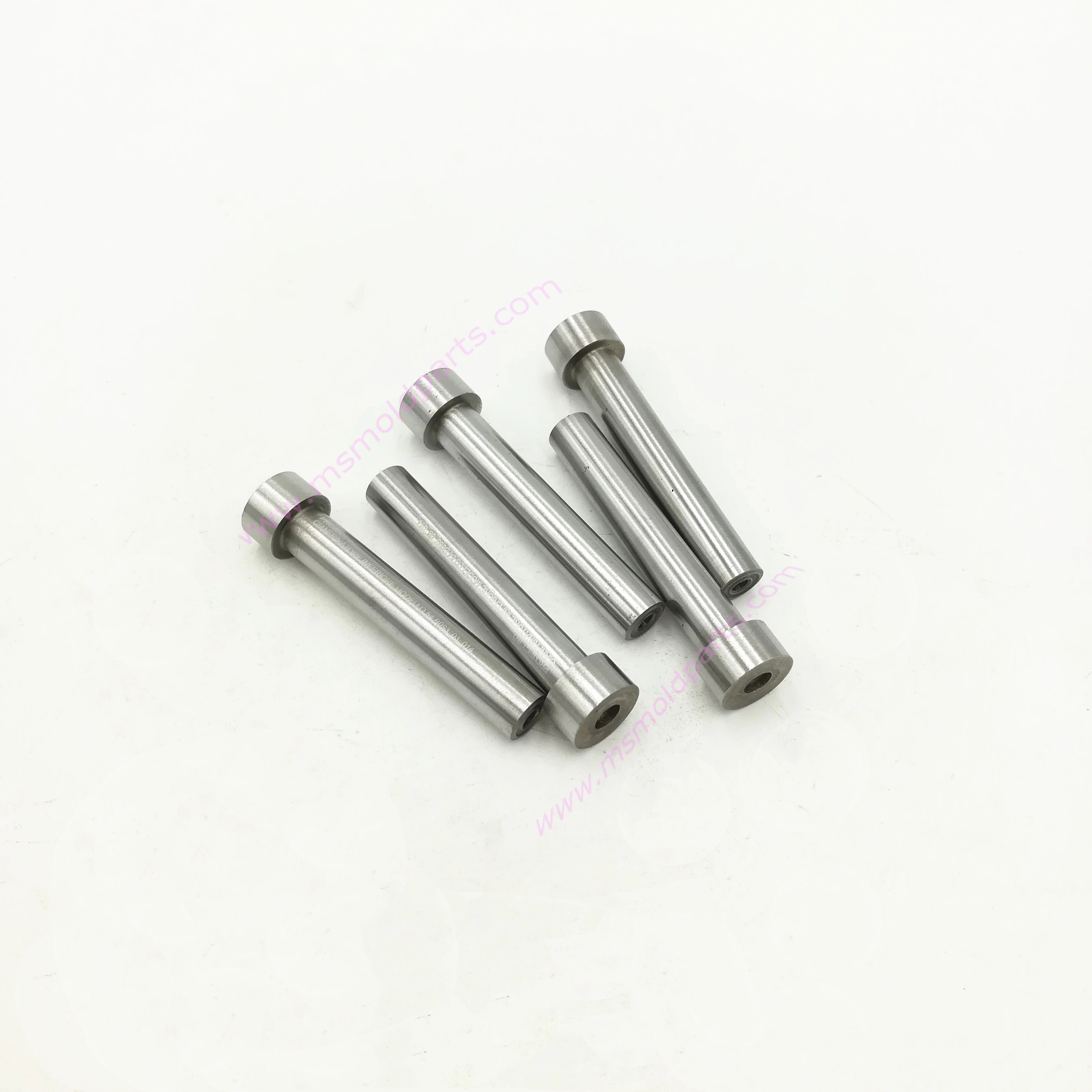

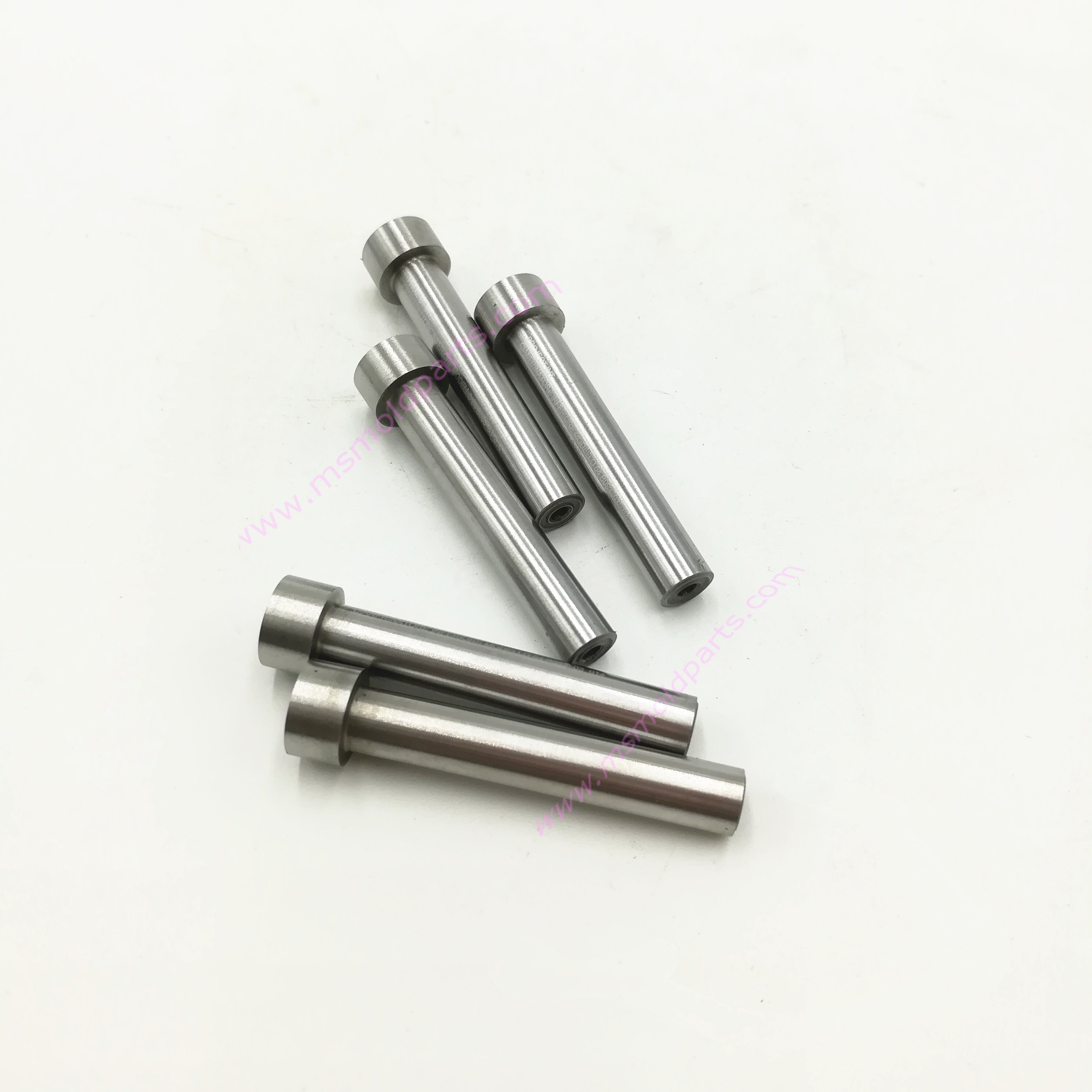

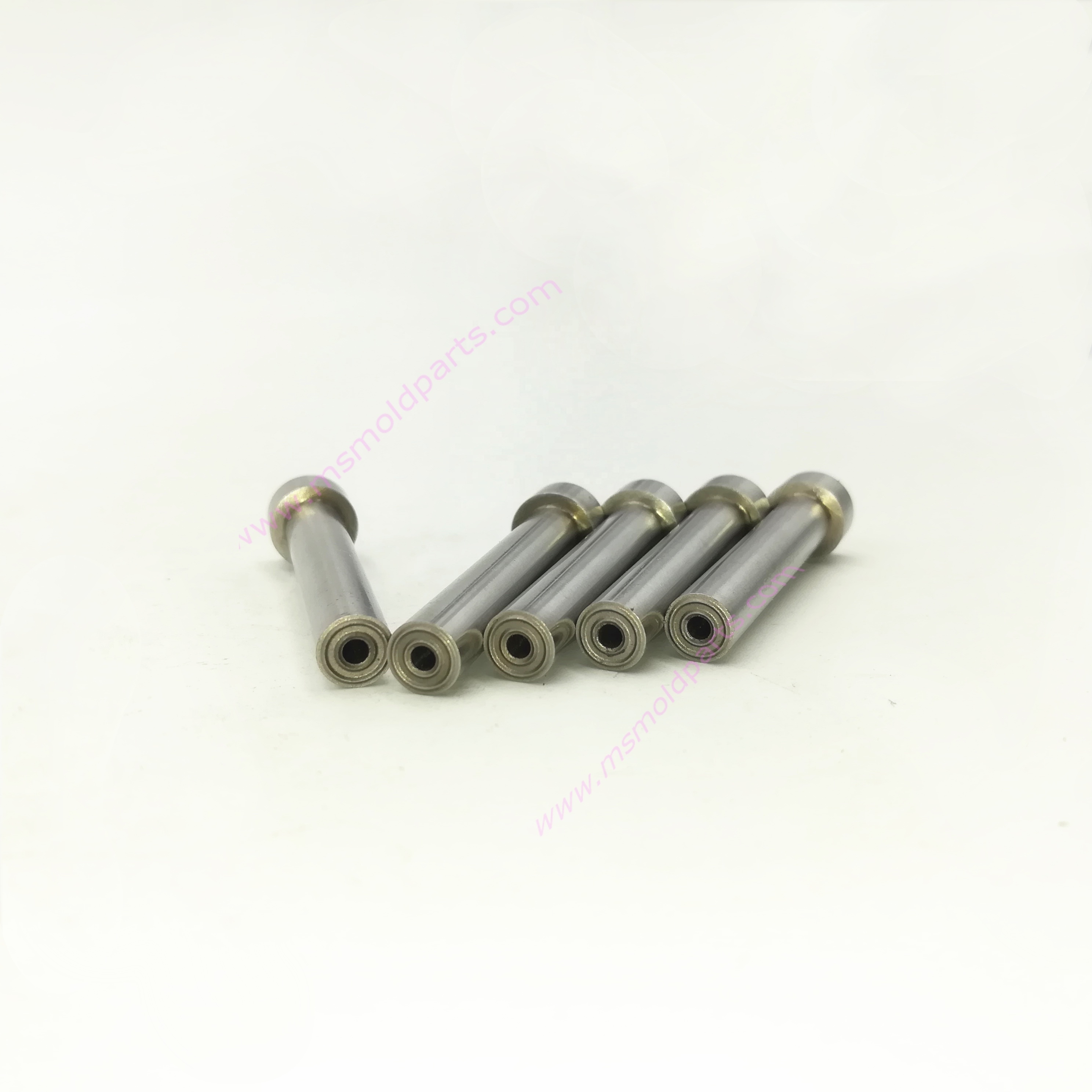

shouldered guide bush

Mould precision components Customized shouldered guide bush HSS Headed Die Buttons

MS-Punch
High-accuracy parts such as shouldered guide bushes and buttons dies, designed for exact alignment and durability in injection molds or stamping tools. Made from hardened materials with tight tolerances, they ensure reliable performance and extended mold life in demanding production environments.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD10.00 / piece
Contact Now
add to cart

  • Our Precision Mold Components represent the highest standard of accuracy and reliability in mold manufacturing. This comprehensive range includes specialized shouldered guide bush systems and precision buttons die components, engineered to deliver exceptional performance in the most demanding injection molding and stamping applications.

    Key Features

  • Ultra-Precision Engineering

    • Manufacturing tolerances within ±0.002mm

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Perfect geometric accuracy for seamless integration

  • Enhanced Material Performance

    • Premium bearing steel (SUJ2) for guide components

    • High-speed steel (HSS) for durable buttons die

    • Special heat treatment for optimal hardness-toughness balance

  • Optimized Component Design

    • Shouldered guide bush with integrated positioning

    • Buttons die with precision-ground mounting surfaces

    • Custom configurations for specific mold requirements

  • Technical Specifications

  • Materials: SUJ2, HSS, Tungsten Carbide

  • Hardness: HRC 58-64

  • Surface Finish: Ra 0.2-0.4μm

  • Standard Sizes: 5-100mm diameters

  • Temperature Resistance: Up to 300°C

  • Compliance: ISO 9001, DIN Standards

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
